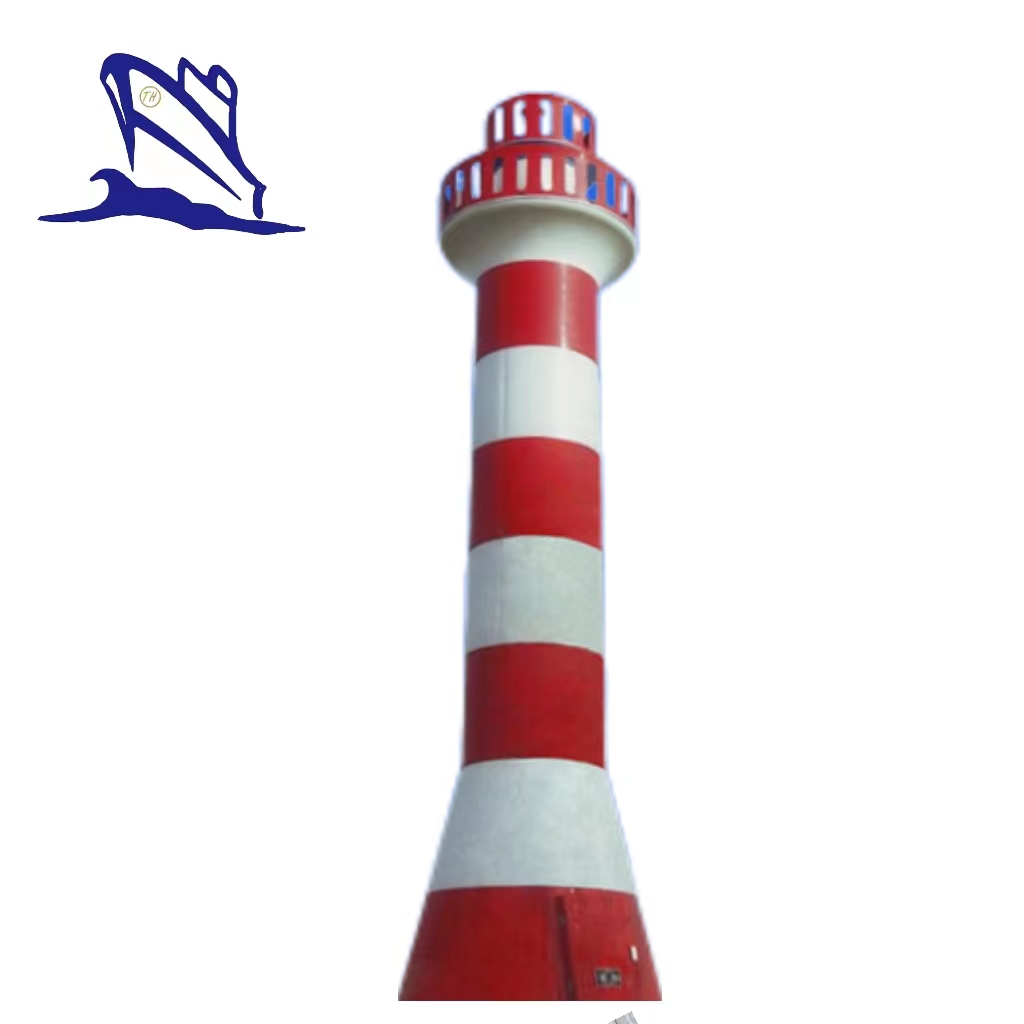

10m GFRP Beacon Tower
Features of GFRP Beacon Tower
1. Light Weight
2. Easy Maintenance
3. Convenient Transportation and Installation
4. Good Performance of Color Retention and Anti-corrosion
5. Good Insulation
6. Inflaming Retarding: good heat resistance, won’t fade and deform at high temperature for a long time
7. Beautiful Appearance
Components of A GFRP Beacon
1. Lightning Rod
2. Top Working Platform
3. Fence
4. Beacon Body
5. Inner Ladder
6. Reinforced Base Station
7. Entrance Door for Workers
Color: Red and White or as required
Material: Glass Fiber Reinforced Plastics
Certificate: CCS/IALA/ISO
Customized Service: all the size, diameter, height or other specifications can be designed according to customer’s requirements.
After-sale Service: once you face any problem when you use our products, please feel free to contact us. We’ll try to help you solve the problem as soon as possible.
Techinical Parameters of GRP Beacon
Height(m) | BeaconBody Diameter(m) | Weight(kg) | Thickness(mm) | Base Diameter(m) | Top Diameter(m) | Wind-resistance Strength(m/s) | Temperature Range(℃) | Service Life(year) |
5 | 1 | 400 | 10 | 1.8 | 1.8 | ＞45 | -40~+50 | ＞15 |
7 | 1 | 600 | 10 | 1.8 | 1.8 | ＞45 | -40~+50 | ＞15 |
8.5 | 1 | 760 | 10 | 1.8 | 1.8 | ＞45 | -40~+50 | ＞15 |
10 | 1 | 900 | 12 | 1.8 | 1.8 | ＞45 | -40~+50 | ＞15 |
11.5 | 1 | 1040 | 12 | 1.8 | 1.8 | ＞45 | -40~+50 | ＞15 |
20 | 3 | 4000 | 14 | 4.0 | 4.0 | ＞45 | -40~+50 | ＞15 |
