AIDS TO NAVIGATION

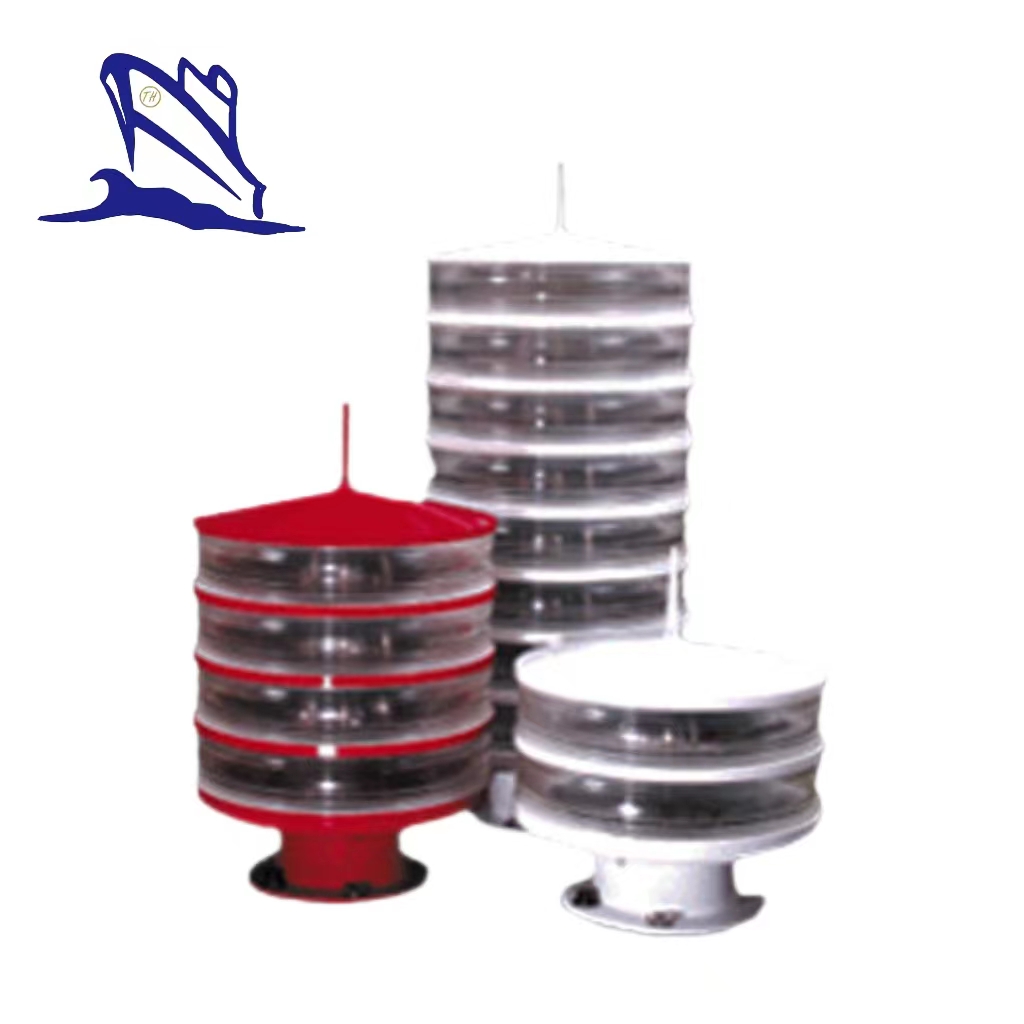

High Intensity LED Marine Marker Light

1. HS-L350A low power consumption and high intensity LED navigation mark light can be used as remote navigation light;

2. Nominal range is up to 12.5 nautical miles;

3. Fixed light light intensity is up to 6000cd;

4. The effective light intensity is 4284cd and the light range is 12.5nm(T=0.74) when the flash duration is 0.5 second;

5. Red, Yellow, Blue, White and Green Color for option;

6. Photoelectric conversion efficiency is 50cd/W;

7. Built-in GPS synchroniztaion module can realize wireless synchronious flash of multi-lamp;

8. Built-in GSM/VHF communication module(RTU), can be used as remote monitoring terminal.

Technical Parameters

Model	HS-L350A
Working Voltage	12V(10V~30V)
Daylight Switch	300Lux±50Lux
Photoelectric Conversion Efficiency	＞50cd/W
Dark Current	＜5mA
Consumed Power	120W(when light is bright)
Divergence Angle	2.5°(in accordance with IALA standard)
Horizontal Distribution Uniformity	＞90%
Communication Serial Port	RS232/RS485(optional)
Lens Material	Anti UV organic glass
Working Temperature	-30℃~+70℃
Relative Humidity	100%(condensation)
Protection Level	IP68
