AIDS TO NAVIGATION

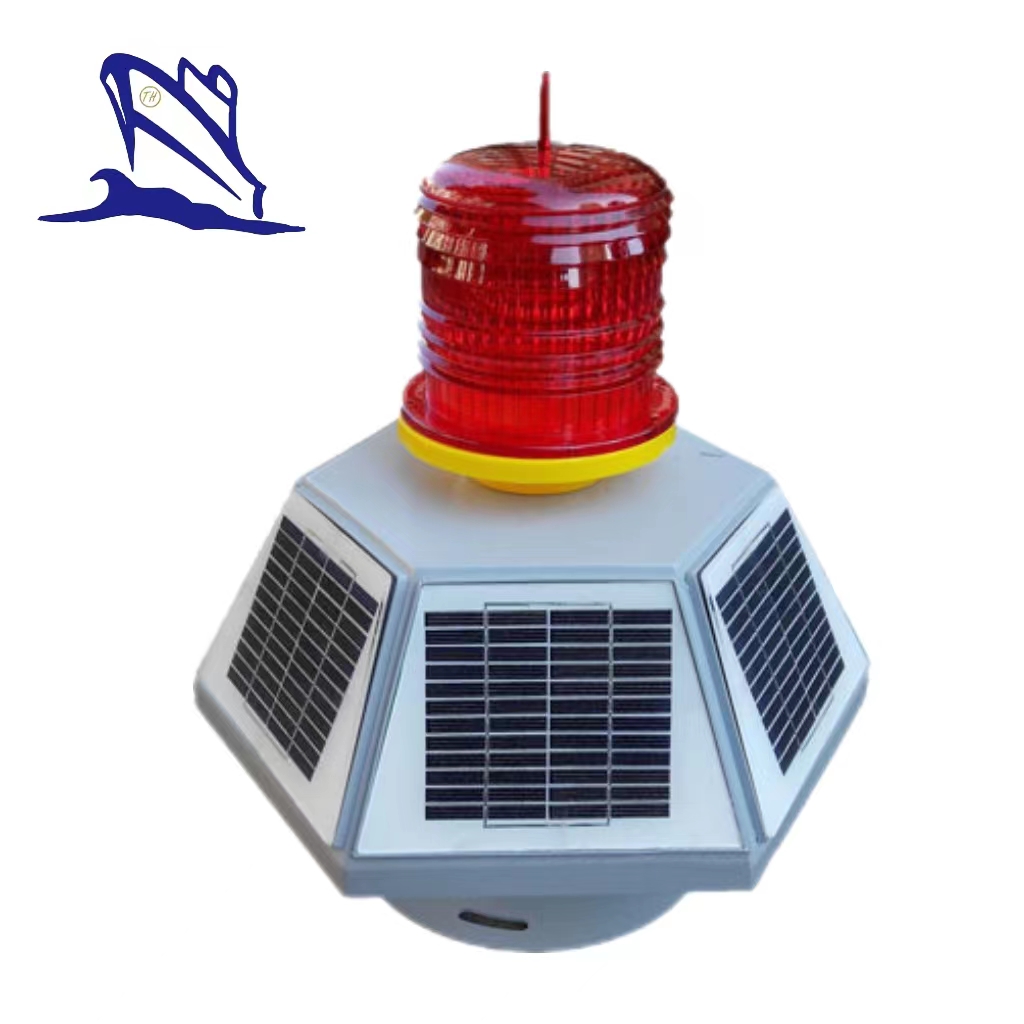

Solar Marine Navigation Light

1. Circuit is controlled by single chip microcomputer; circuit uses the high quality electronic components and the core part uses imported component;

2. Lampshade is made of 120mm circular focus Fresnel lens; chassis is made of one-time molded aluminum alloy and its surface is high temperature painted and of corrosion resistance;

3. Four-side solar panels are mounted at the chassis to form a hexagonal structure and supply power for large capacity and maintenance free battery, providing electricity for flash apparatus at night. One-time full charge makes sure that the lamp can flash normally during 10 constant overcast and rainy days;

4. Maintenance-free storage battery is placed in the chassis; the inner core is composed by a microcomputer integrated flash devices and a daylight switch. This lamp can produce 256 kinds of flash codes.

5. Light source adopts ultra high brightness light emitting diode LED, multilayer light soure board stacked light emitting device; the light source lige is up to 20 years, called the green maintenance-free navigation mark flash light.

Application

Used for inland river buoys, shore beacons, ship marks, fixed light beacons, offshore oil derrick light signal lamps and so on.

Technical Parameters

Check List of Light Intensity, Visual Range and Divergence Angle
