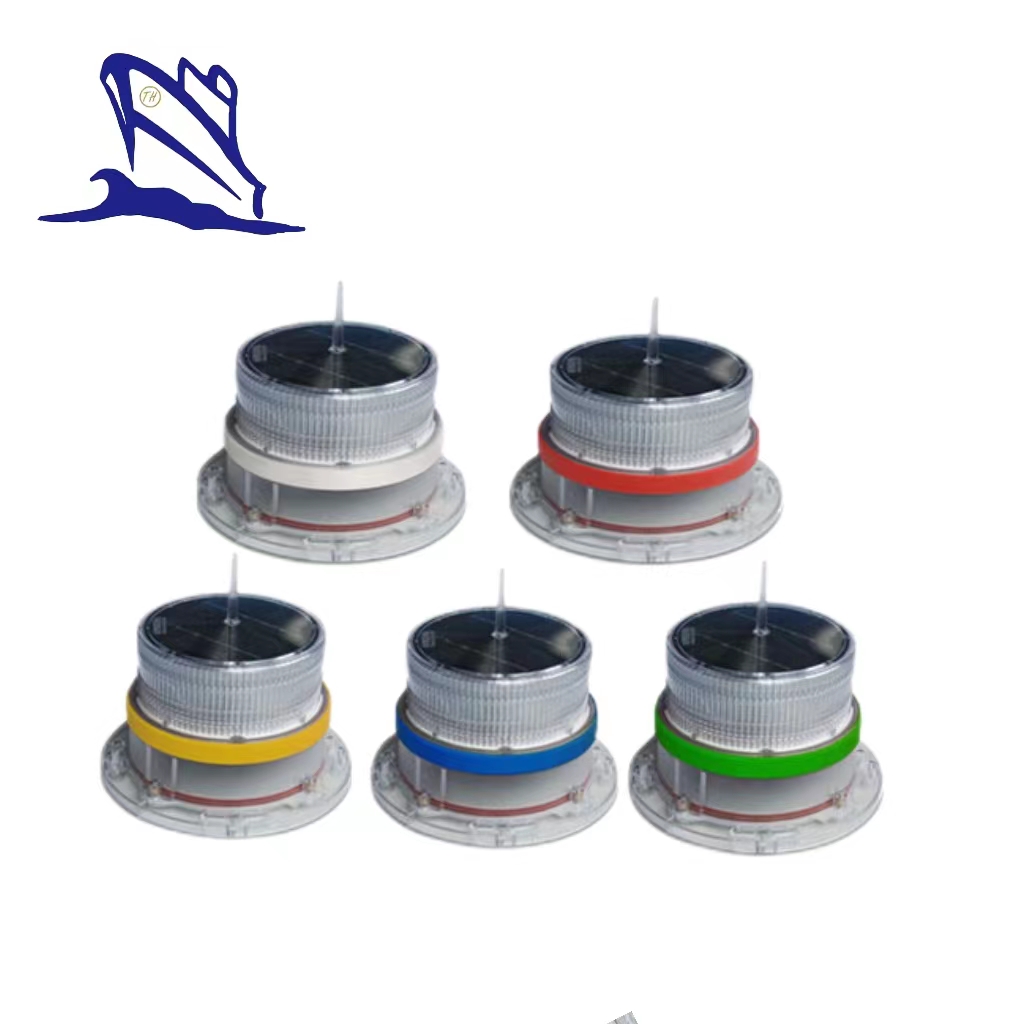

Solar LED Marine Light
Solar LED Marine Light
1. Based on LED technics, its color is in accordance with IALA Recommendations E-200-1;
2. Integrated design of lamp body to achieve the protection level IP68;
3. PC material, anti UV, anti vibration and corrosion resistance;
4. With bird proof device;
5. 256 kinds of characters to be adjustable to meet requirements of IALA;
6. Light intensity 25%,50%,75%,100% to be adjustable;
7. Photoelectric automatic control, with manual switch;
8. Humanization design, with anti-fall device during the process of installation and adjustment ;
9. Built-in nickel metal hydride battery, easy to replace;
10. No radio frequency, no electromagnetic interface;
11. Stable working performance, low cost
Application
Applicable to offshore buoys, inland river bouys, shore beacons, fixed light beacons, offshore oil derrick signal lamps and so on.
Technical Parameters
Model | HS201A solar navigation mark light |
Light Source Output | |
Effective Light Intensity | 10cd |
Visual Range | ＞2.5nm |
LED Color for option | Red, Amber Yellow, Green, Blue, White |
Vertical Divergence Angle | ＞9° |
Horizontal Divergence Angle | 360° |
Light Source | LED |
LED Service Life | ≥100,000 hours |
Working | |
Continous Lighting Time | ＞20 days (12 hour darkness, 12.5% duty cycle) |
Daylight Illuminance Threshold Value | 300lux±100lux |
Character | IALA256 kinds Color(including all time brightness, adjustable) |
Power Supply | |
Power Supply | Single crystal silicon solar panels |
Max. Output Power | 1.8 watts |
Battery | High-effect nickel metal hydride rechargeable battery |
Battery Capacity | 3.6V/8AH |
Mechanical Structure | |
Integrated Light Cover | Outdoor anti UV grade polycarbonate (PC) |
Waterproof Grade | IP68 |
Weight | 1.7KG |
Working Temperature Range | -30℃~+70℃ |
Outline Dimension | Height 170mm, Diameter 228mm |
Installation Dimension | Φ200~4XM6 |
Customized | External Power Supply, Infrared Control |
Installation Method and Precautions
1. Please read the instruction carefully and use the product correctly;
2. Solar lamp must be installed to the place where can get full sunlight to ensure it can work continously;
3. Place the lamp on the vertical mounting surface with the lamp axis; the mounting surface should be smooth and sufficient in mechanical strength;
4. If the light is not bright during the first use, please put the lamp in the sunlight for 12 hours or plug in the charger to get power; then it can work normally
( during the charging process, the manual switch should be placed in the ON side, otherwise it can not be charged);
5. For long time storage, the StAt should be turned to OFF and place the light in the dry sub humid place; please take out the solar panels and put it in sunlight for three days or use charger to get full energy every 40 days to ensure the battery capacity;
(please put the manual switch on the ON side in the case of sun exposure)
6. Bulit-in nickel metal hydride batteries, after the use of 450 times (15months), the battery capacity is about 80% of the initial, please replace the battery in time;
7. To protect batteries from damage during the shipping and storage, the lamp bottom is installed with a manual switch and set into OF status; before installation or testing, please set the manual switch into ON side, and then adjust the character and light intensity you need;
8. If you face any problem when using the products, please feel free to contac us.
