Marine Buoy Light
Marine Buoy Light

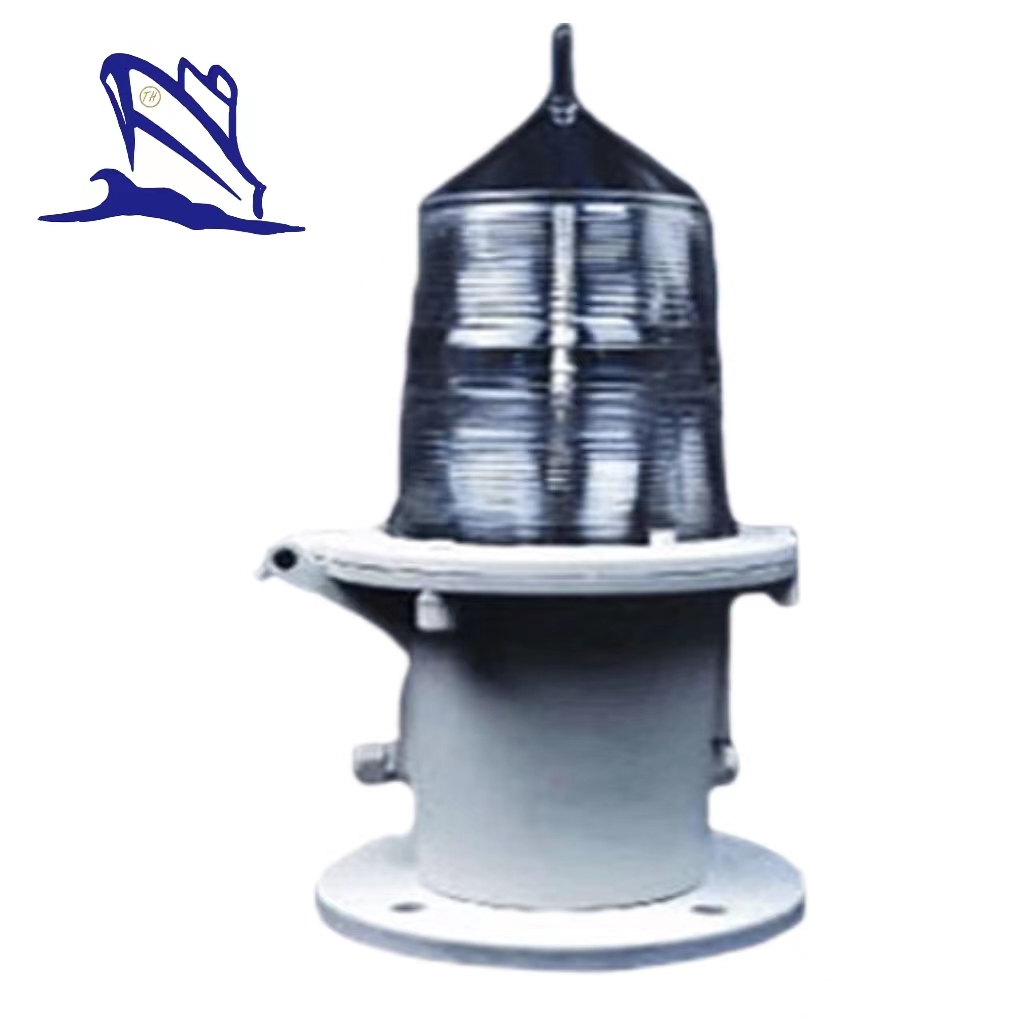

HS-ML155 marine navigation light is composed by plastic single cone Fresnel lens, engineering plastic base, six-headed electronic flash bulb change apparatus and high efficient halogen navigation bulbs. Due to the adoption of high performance prefocus Halogen beacon bulb as luminescent source, it has accurate light source focus and high light energy utilization, making the light intensity of the lantern 20% higher than that of ordinary incandescent light bulbs.
Application
Used as offshore buoy navigation beacon lights, fixed light beacon navigation lights and so on.
Technical Parameters
Model | HS-ML155 |
Working Voltage | 12V DC |
Voltage Range | 10~36V |
Flash Characteristics | IALA256 |
Output Power | 150W |
Communication Serial Port | RS232/RS485(optional) |
Vertical Divergence Angle | 8° |
Quiescent Current | ＜2mA |
Environment Temperature | -25℃~+65℃ |

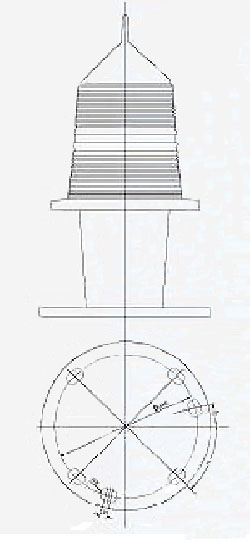

Installation Dimension | 4 Φ16mm holes evenly distributed on diameter 200mm pitch circle |
Weight | 3.5kg |
HS-ML155 Navigation Mark Light(at 50% peak value of light intensity, divergence angel is 8° ) | |||||||||||||
Different ‘Brightness’ Time Light Intensity Chart | Consumption Power(W) | ||||||||||||
Fixed | 0.1sec | 0.2sec | 0.3sec | 0.4sec | 0.5sec | 0.6sec | 0.7sec | 0.8sec | 0.9sec | 1.0sec | 1.1sec | 1.2sec | |
270 | 90 | 135 | 162 | 180 | 192 | 202 | 210 | 216 | 220 | 225 | 228 | 231 | 12C-1A |
500 | 166 | 250 | 300 | 333 | 357 | 375 | 388 | 400 | 409 | 416 | 423 | 428 | 12V-2A |
850 | 283 | 425 | 510 | 566 | 607 | 637 | 661 | 680 | 695 | 708 | 719 | 728 | 12V-3A |
