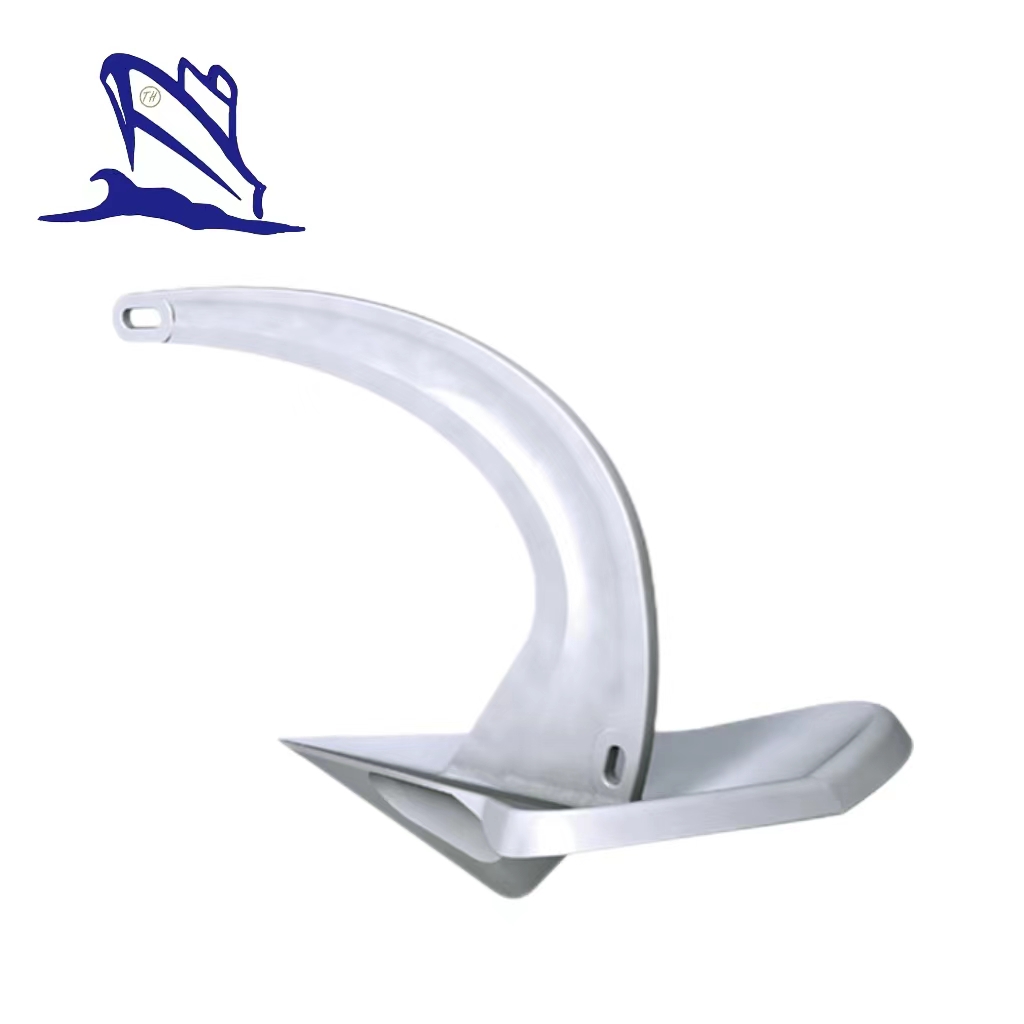

Vulcan Anchor
Introduction:
After designing the Rocna anchor, in order to achieve better adaptability, Peter Smith designed a new Vulcan anchor. Vulcan anchor has strong grip performance and wider adaptability. After the anchor is retracted, it can fit the ship's hull more closely. Like Rocna anchors, all sizes of Vulcan anchors are available in stainless steel and hot-dip galvanized.
Main Model of Vulcan Anchor for Reference:
Model | Weight | Fluke area | A | B | C | D | E | S | Width | |||||||||
kg | lb | cm² | in² | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |
4 | 4 | 9 | 430 | 67 | 472 | 18.6 | 142 | 5.6 | 145 | 5.7 | 46 | 1.8 | 119 | 4.7 | 67 | 2.6 | 258 | 10.2 |
6 | 6 | 13 | 560 | 87 | 541 | 21.3 | 163 | 6.4 | 167 | 6.6 | 53 | 2.1 | 136 | 5.4 | 77 | 3.0 | 296 | 11.6 |
9 | 9 | 20 | 730 | 113 | 619 | 24.4 | 186 | 7.3 | 191 | 7.5 | 61 | 2.4 | 156 | 6.1 | 88 | 3.5 | 339 | 13.3 |
12 | 12 | 27 | 890 | 138 | 681 | 26.8 | 205 | 8.1 | 210 | 8.3 | 67 | 2.6 | 172 | 6.8 | 97 | 3.8 | 373 | 14.7 |
15 | 15 | 33 | 1030 | 160 | 734 | 28.9 | 221 | 8.7 | 226 | 8.9 | 72 | 2.8 | 185 | 7.3 | 104 | 4.1 | 402 | 15.8 |
20 | 20 | 44 | 1250 | 194 | 808 | 31.8 | 243 | 9.6 | 249 | 9.8 | 79 | 3.1 | 204 | 8.0 | 115 | 4.5 | 442 | 17.4 |
25 | 25 | 55 | 1450 | 225 | 870 | 34.3 | 262 | 10.3 | 268 | 10.6 | 85 | 3.4 | 220 | 8.6 | 124 | 4.9 | 476 | 18.7 |
33 | 33 | 73 | 1740 | 270 | 955 | 37.6 | 287 | 11.3 | 294 | 11.6 | 93 | 3.7 | 241 | 9.5 | 136 | 5.3 | 522 | 20.6 |
40 | 40 | 88 | 1980 | 307 | 1018 | 40.1 | 306 | 12.1 | 313 | 12.3 | 100 | 3.9 | 257 | 10.1 | 145 | 5.7 | 557 | 21.9 |
55 | 55 | 121 | 2450 | 380 | 1132 | 44.6 | 340 | 13.4 | 349 | 13.7 | 111 | 4.4 | 286 | 11.2 | 161 | 6.3 | 619 | 24.4 |
