Solar Navigation Light
Solar Navigation Light

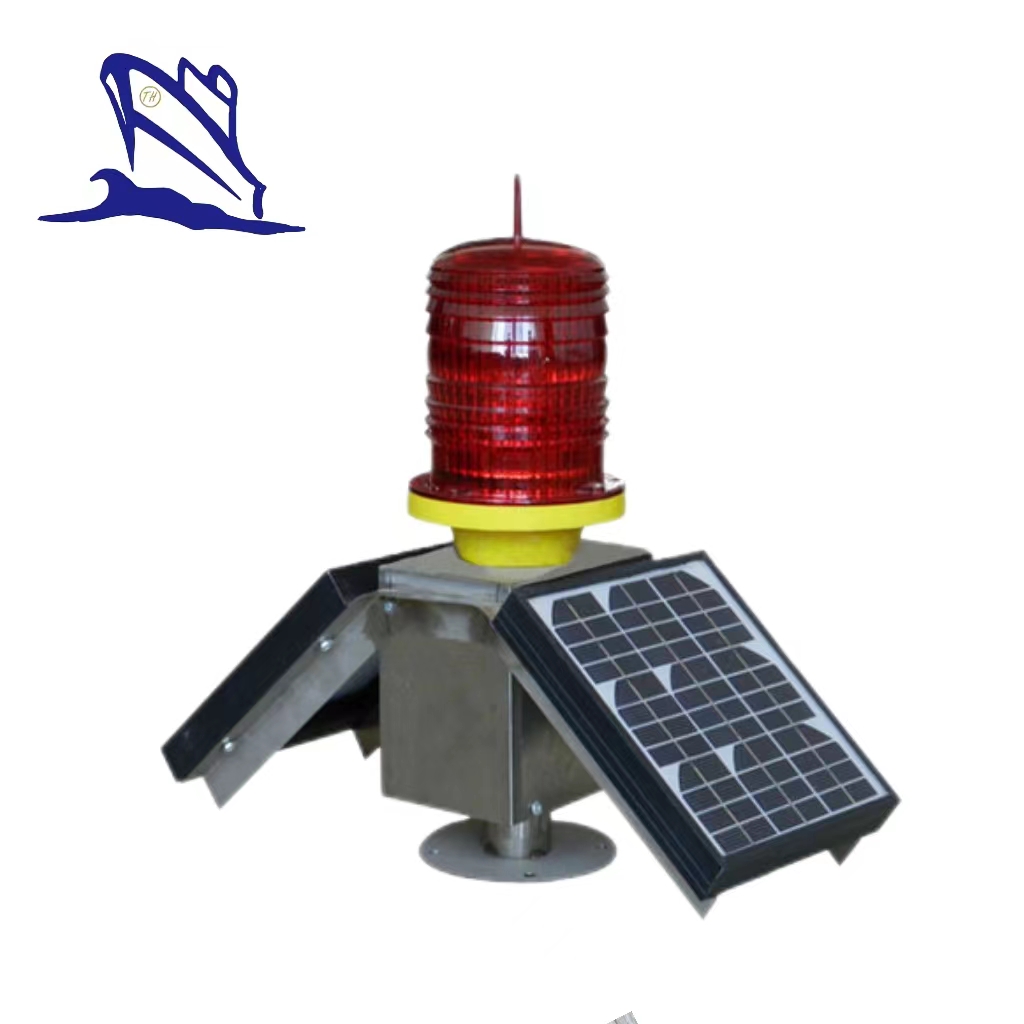

This solar-powered navigation light is composed of 120mm polyacrylate Fresnel lens, accumulator cell and a lamp holder, microcomputer controller, high efficiency LED lamp, physical silicon solar battery and full-sealed non-maintenance battery. It has the features of exquisite material, advanced circuit and reasonable structure. It can produce a very strong flash in three seconds.
This solar navigation light is particularly used as marker lamp for high-rise buildings, power towers, TV towers, tall chimney, bridge towers, exploration wells, ship navigation and airport runway and other places where is not easy to maintain and required explosion-proof.
Product Specifications
Light Index | |
Light Source | 60 pieces of Super Bright LED Lamp Beads |
Light Source Color | Red, Green, White, Yellow, Blue |
Light Intensity | 1200cd |
Horizontal Angle | 360° |
Vertical Angle | 15° |
Flashing Rate | 298 including regular lighting (user-adjustable) |
LED Lifespan | ＞100,000hours |
Power Index | |
Rated Voltage | DC 12V |
Rated Power | 6W |
Solar Index | |
Solar Panel Type | Poly-silicon |
Solar Power Output | 5W*2 |
Operating System | Microprocessor Control |
Power Supply Index | |
Battery Type | High Quality Maintenance Free Battery |
Battery Capacity | 24Ah |
Rated Voltage | DC 12V |
Continuous Overcast and Rainy Days | Flashlight: ＞40days (14h every day 12.5% cycle period) Regular Lighting: ＞10days |
Lamp Body Technology Index | |
Pedestal Material | Stainless Steel |
Lampshade Material | UV Resistant Polycarbonate |
Lampshade Diameter | 120mm |

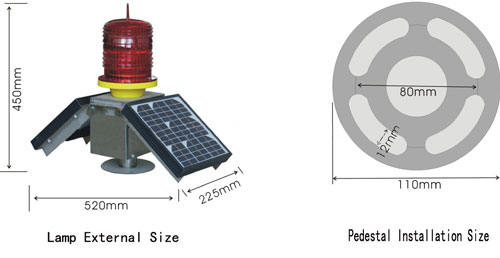

Installation Size | Small Holes of 4*12mm distributed The Pitch Diameter 80mm |
Lamp External Size | 520m*225mm*450mm |
Lamp Weight | 9.5kg |
Environment Technology Index | |
Humidity | 0-100% |
Protection Degree | IP65 |
Wind Load | 160km/h |
Ambient Temperature | -40°- 70° |
Application | High-rise Buildings, Power Towers, TV Transmitting Tower, Tall Chimney, Bridge Towers, Exploration Wells, Ship Navigation and Airport Runways |
Certificate | CCS, CE |
