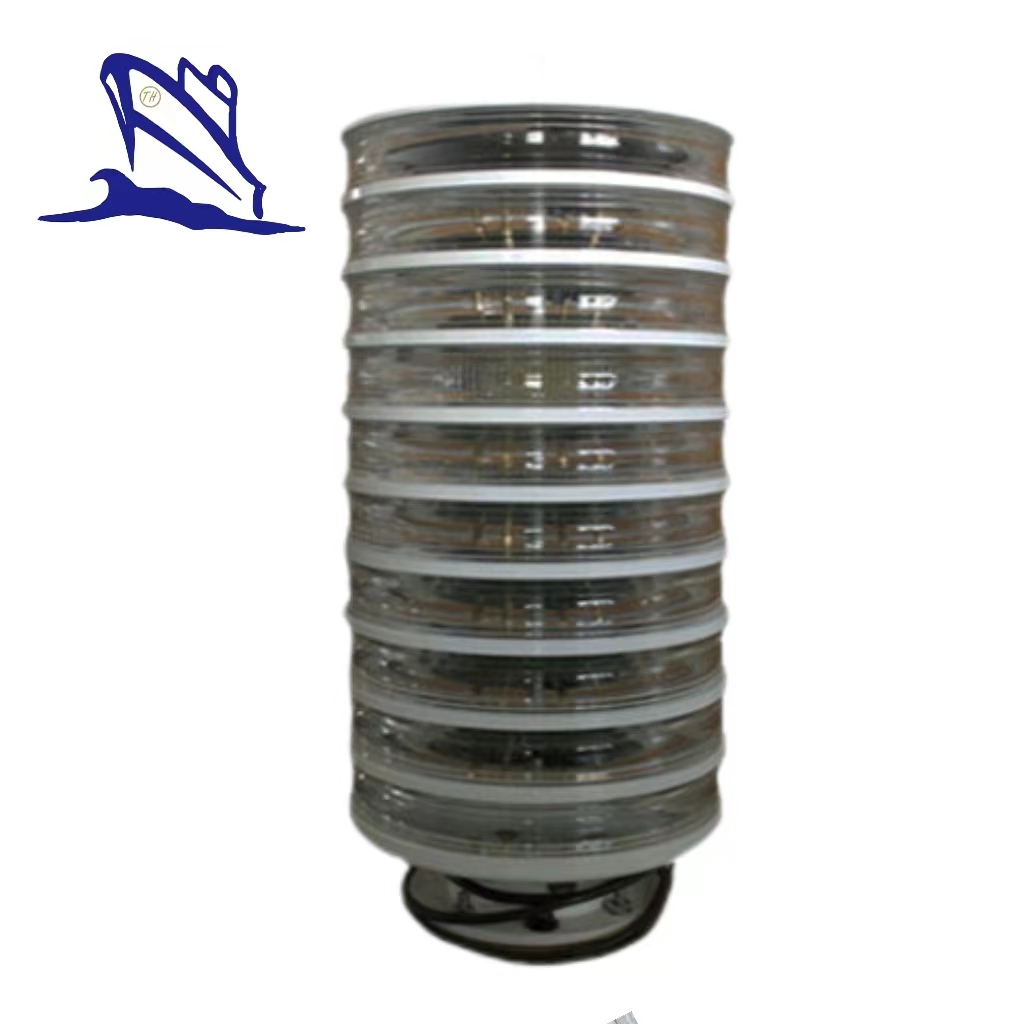

Remote-controlled LED Navigation Light
Remote-controlled LED Navigation Light
1. Nominal range is up to 15.1nm;
2. Light intensity of fixed light is up to 20000cd;
3. When the continous flash time is 0.5second, the effective light intensity is 14285cd and the light range is 15.1nm (T=0.74, white light);
4. Photoelectric Conversion Efficiency is 25cd/W;
5. The built-in GPS synchroniztaion module can achieve multi-lamp wirless synchroninous flash;
6. The built-in GSM/VHF communication module(RTU) can be used as remote monitoring terminal.
Technical Paramters
Model | HS-L350B |
Woking Voltage | 24V(20V~30V) |
Daylight Switch | 300Lux±50Lux |
Characteristics of Light | IALA256 |
Photoelectric Conversion Rate | ＞25cd/w |
Consumption Power | ＜800W(when lamp is bright) |
Divergence Angle | 2.5°(in accordance with IALA standard) |
Horizontal Distribution Uniformity | ＞90% |
Communication Serial Port | RS232/RS485(optional) |
Lens Material | Anti UV organic glass |
Chassis Material | Marine grade alluminum alloy |
Working Temperature | -30℃~+70℃ |
Relative Humidity | 100%(condensation) |
Protection Grade | IP68 |
