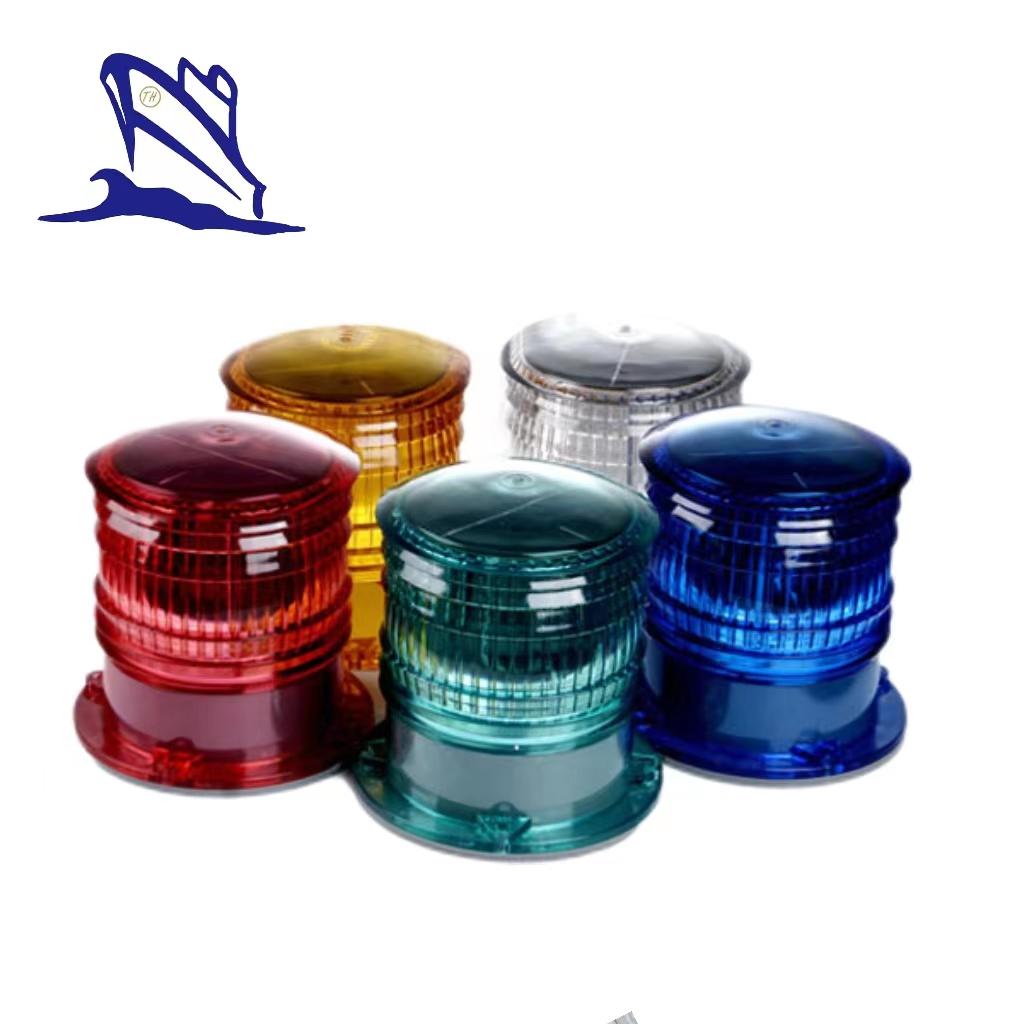

Solar Warning Light Navigation Mark Light

Solar Warning Light Navigation Mark Light
This type of solar warning light is the most popular solar ocean warning light for decades and has been the world’s most classic aid to navigation products. The self-contained, reliability and durability makes the light be perfectly applied to all kinds of warning occasions. It is easy to install and can be installed in a few minutes and has long service life.
Features and Advantages
1. Five Colors for Option: Red, Green, Yellow, Blue and White
2. Lens is made of Polycarbonate material, having good resistance to impact and waterproof; can work under harsh environments;
3. Just few minutes to install; convenient and quick;
4. Automatically open at nightfall and close at dawn; no need of personnel management
5. All-weather charge, more than 140 hours of continous work when full of power;
6. No external connection, without battery or wick placement; maintenance free;
7. Integrated design, with good water resistance;
8. Production implementation of ISO9001:2008 Quality management system
Application
Lighthouse, mast lamp, safe water mark, drilling platform, dock and other occasions needing safety warning
Technical Parameters
Model | DWS302/TS Solar Warning Light Navigation Mark Light | ||
Output Mode | Flash | Light | |
Peak Luminance 360° | White | 16.0cd | 10.0cd |
Red | 12.0cd | 7.5cd | |
Yellow | 13.0cd | 8.5cd | |
Green | 12.0cd | 7.5cd | |
Blue | 7.2cd | 4.0cd | |
Visual Range | 3nm | 2nm | |
Horizontal Output | 360° | ||
LED Number | 16Pcs | 8Pcs | |
Working | |||
Minimum Autonomous Time | 140hours | 70hours | |
Latitude Range | 55°S to 55°N | ||
Optical Threshold | 60/100Lux | ||
Service Life | Up to 100,000hours | ||
Solar Panels | |||
Type | Monocrystalline Silicon | ||
Max. Power | 1.5w | ||
Transformation Rate | 16% | ||
Battery | |||
Type | Nickel Metal Hydride Battery, adjustable | ||
Capacity | 5Ah | ||
Structure | |||
Lens Material | Polycarbonate | ||
Lens Color for Option | Red, Greem, Blue, Yellow, White | ||
Installation Mode for Option | Screw or Magnet | ||
Weight | 0.9kg | ||
Working Environment | |||
Temperature Range | -40℃ to+80℃ | ||
Waterproof and Dust-proof Grade | IP67 | ||
Certificates and Patents | |||
Quality Certificate | ISO9001:2008 | ||
CE Authentication | CTR090817073E | ||
Patents | 02224444.1 and 200430015589.3 | ||
