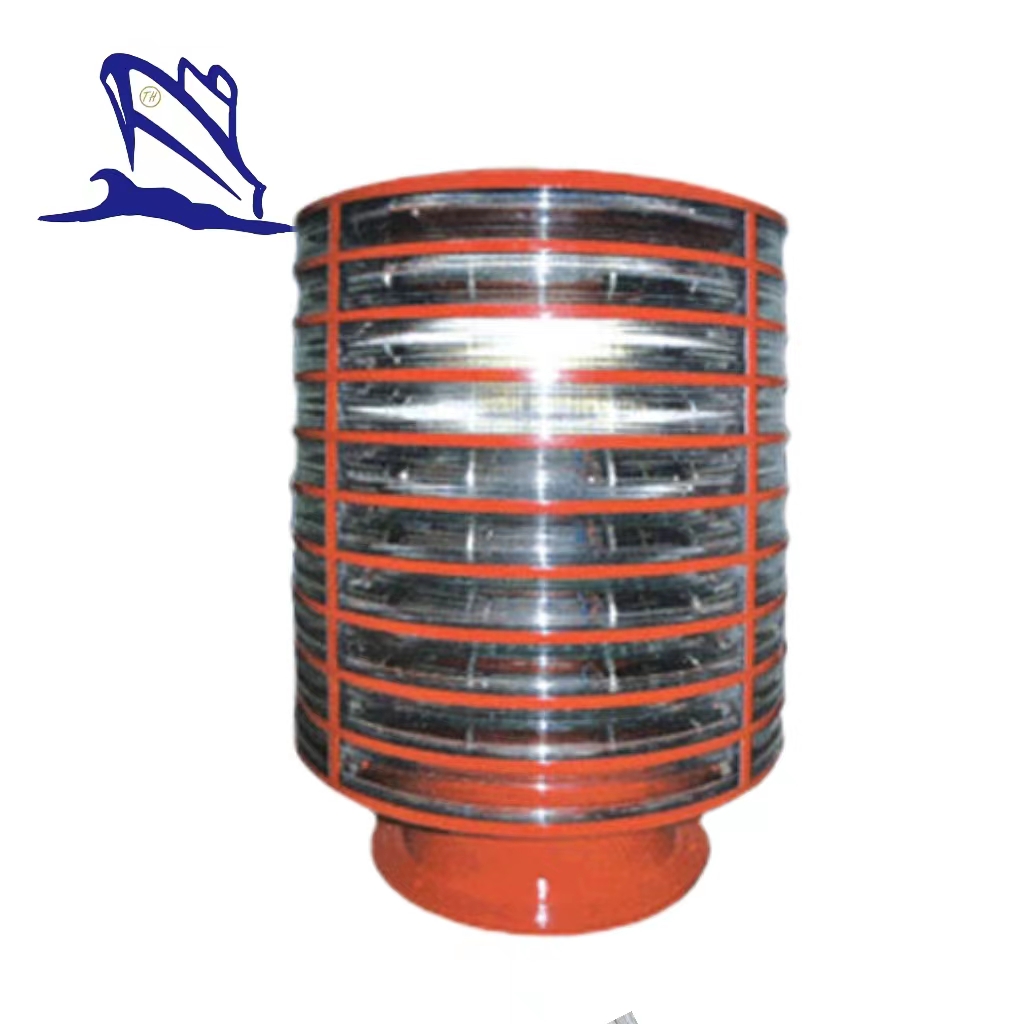

LED Navigation Mark Light
LED Navigation Mark Light
1. Nominal light range reaches 18nautical miles;
2. Light intensity of fixed light reaches 50000cd;
3. When there is built-in GPS synchronization module, it can achieve multi-lamp wireless synchronous flash;
4. When there is built-in GSM/VHF communication module(RTU), it can be used as remote monitoring terminal
Technical Parameters
Model | HS-L780A |
Working Voltage | 12V DC |
Daylight Switch | 300Lux+50Lux |
Characteristics of Light | IALA256 |
Power Consumption | ＜900W(when lamp is bright) |
Divergence Angle | 2.5°(in accordance with IALA standard) |
Level Distribution Uniformity | ＞90% |
Communication Serial Port | RS232/RS485 |
Light Color | Red, Green, White (optional) |
Lens Material | Anti UV organic glass |
Chassis Material | Marine grade alluminum alloy |
Working Temperature | -30℃~+70℃ |
Relative Humidity | 100%(condensation) |
Protection Grade | IP56 |
Cooling Mode | Air cooling |
