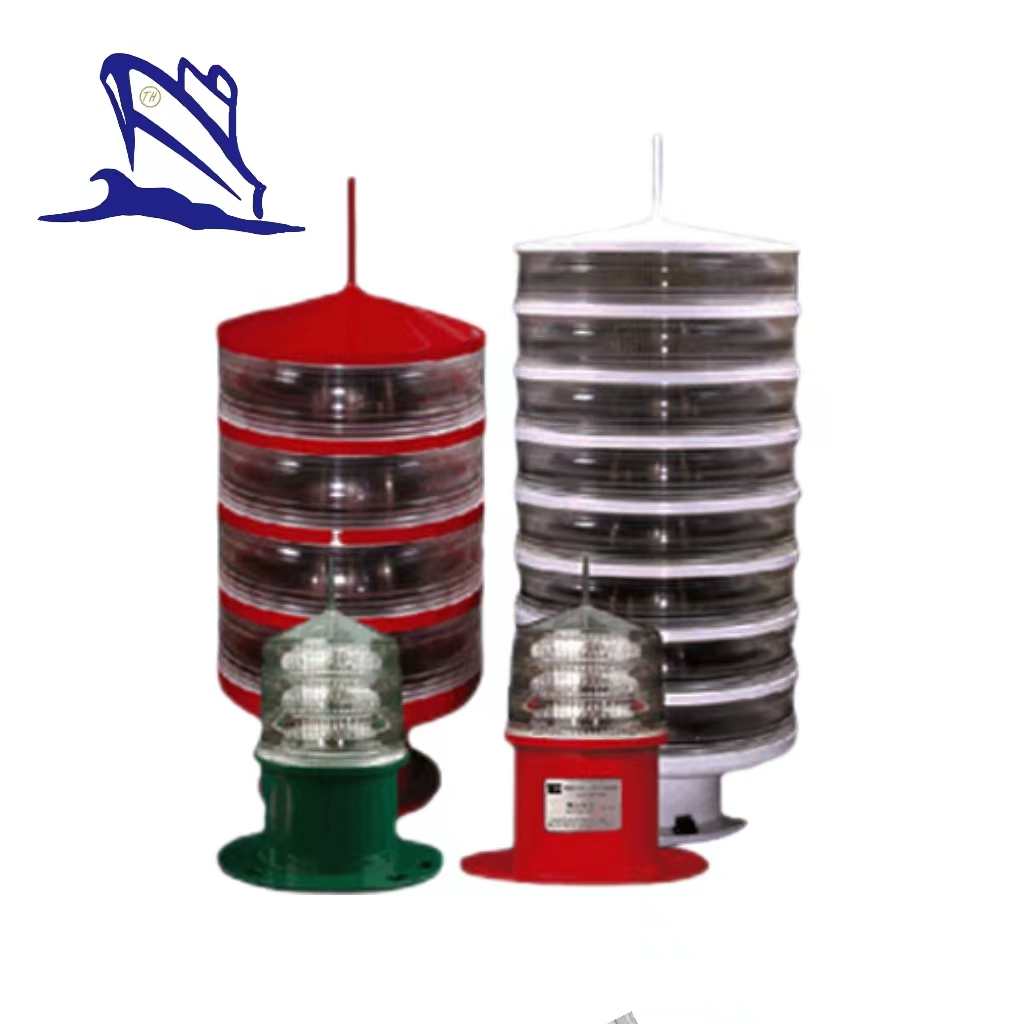

Lightning-protection LED Navigation Mark Light




Lightning-protection LED Navigation Mark Light

1. HS-LL150A/350A lightning-protection LED navigation mark light with built-in active lightning arrester, can prevent lamp device from lightning damage, espeacially suitable for the use of frequent lightning stroke regions and minefield regions.

2. This lamp can be used as beacon lights, tall building’s signal lamp and aviation obstruction light.

3. Can be also used for oil exploration and oil platform operation area, natural gas exploitation zone and chemical plant and other occasions with the requirements of lightning protection and explosion proof.

Technical Parameters

Model

HS-LL150A/350A

Working Voltage

12V

Voltage Range

10V~30V

Quiescent Current

<2mA

Communication Serial Port

RS232

Lens Material

UV resistant organic glass

Chassis Material

Marine grade alluminum alloy

Working Temperature

-30℃~+70℃

Relative Humidity

100%(condensation)

Protection Level

IP68

Note: HS-LL150A/350A lightning-protection LED navigation mark light’s other photoelectric parameters are the same as that of HS-L150A intellegient LED marine lantern.
