Solar Navigation Mark Light
Solar Navigation Mark Light
1. Based on LED technics, its color is in accordance with IALA Recommendations E-200-1;
2. Integrated design of lamp body to achieve the protection level IP68;
3. PC material, anti UV, anti vibration and corrosion resistance;
4. With bird proof device;
5. 256 kinds of characters to be adjustable to meet requirements of IALA;
6. Light intensity 25%,50%,75%,100% to be adjustable;
7. Photoelectric automatic control, with manual switch;
8. Humanization design, with anti-fall device during the process of installation and adjustment ;
9. Built-in nickel metal hydride battery, easy to replace;
10. No radio frequency, no electromagnetic interface;
11. Stable working performance, low cost
Application
Applicable to offshore buoys, inland river bouys, shore beacons, fixed light beacons, offshore oil derrick signal lamps and so on.
Technical Parameters
Model | HS401A solar navigation mark light |
Light Source Output | |
Effective Light Intensity | ＞40cd |
Visual Range | ＞4nm |
LED Color for option | Red, Amber Yellow, Green, Blue, White |
Vertical Divergence Angle | ＞7° |
Horizontal Divergence Angle | 360° |
Light Source | LED |
LED Service Life | ≥100,000 hours |
Working | |
Continous Lighting Time | ＞20 days (12 hour darkness, 12.5% duty cycle) |
Daylight Illuminance Threshold Value | 300lux±100lux |
Character | IALA256 kinds Color(including all time brightness, adjustable) |
Power Supply | |
Power Supply | Single crystal silicon solar panels |
Max. Output Power | 6W*4 |
Battery | Maintenance-free sealed lead acid battery |
Battery Capacity | 12V/24AH |
Mechanical Structure | |
Integrated Light Cover | Outdoor anti UV grade polycarbonate (PC), chassis is made of special stainless steel 316 for ships |
Waterproof Grade | IP68 |
Weight | 20KG |
Working Temperature Range | -35℃~+70℃ |
Outline Dimension | Height 580mm, Diameter 270mm |

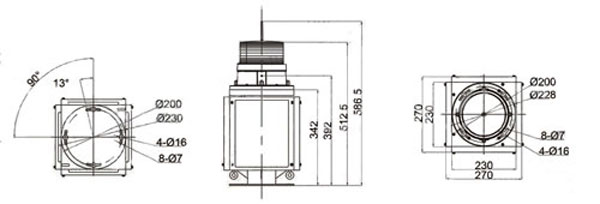

Installation Dimension | Chassis 230mm, pitch circle Φ200~4XM6 |
Customized | External Power Supply, Infrared Control |
Adjustment Method

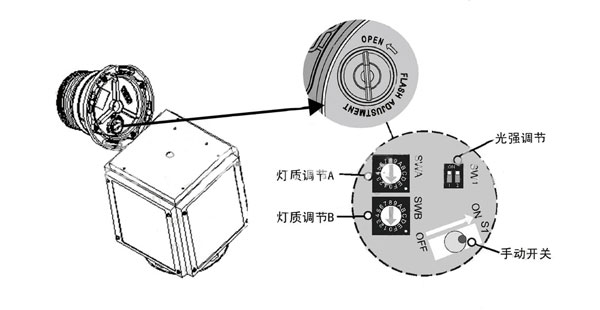

1. Open the lid of the box on the four screws; take the lamp and then open the rotating plug according the the OPEN direction of the rotating plug on the lamp bottom; then you can see the manual switch, light intensity adjustment and characters adjustment device.
2. Switch Adjustment Method: Open, adjust the manual switch to the ON side; Close, adjust the manual switch to the OFF side.(Note: under the condition of ON, only in less than 300LX±100LX illumination, the lamp will be bright.)
3. Character Adjustment Method: adjust manually the encoder SWA and SWB, each adjustment is corresponding to a set of lights.
4. 256 kinds of characters are described in the instruction manual,characteristics of light instructions (6 kinds of characters can be customized)
Encoding Light | Meaning |
F | Fixed |
FL | Flicker Frequency during Fixed Time, e.g. FL(2) 5.5S Flicker twice every 5.5s |
Q | Quick Flash |
VQ | Very Quick Flash |
OC | Occulting Light, Longer than the timeout |
ISO | Equal Light, light time is equal to light off time |
LFL | Long Time, Long Flash |
MO | Morse Signal,including Characters |
For example: VQ(6)+LFL 15 S. A long flash after 6 times quick flashes within 15 seconds

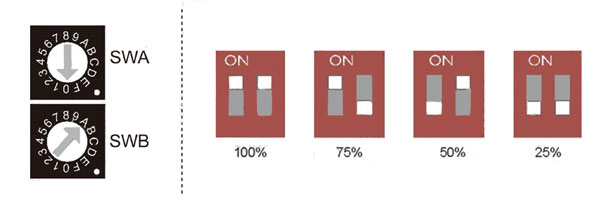

5. Light Intensity Adjustment Method: adjust manually 1 and 2 of the dial switch SW1;the different position of the two dial number 1 and 2 means different light intensity. The detailed light intensity values can be found in the light intensity adjustment diagram on the left side.
