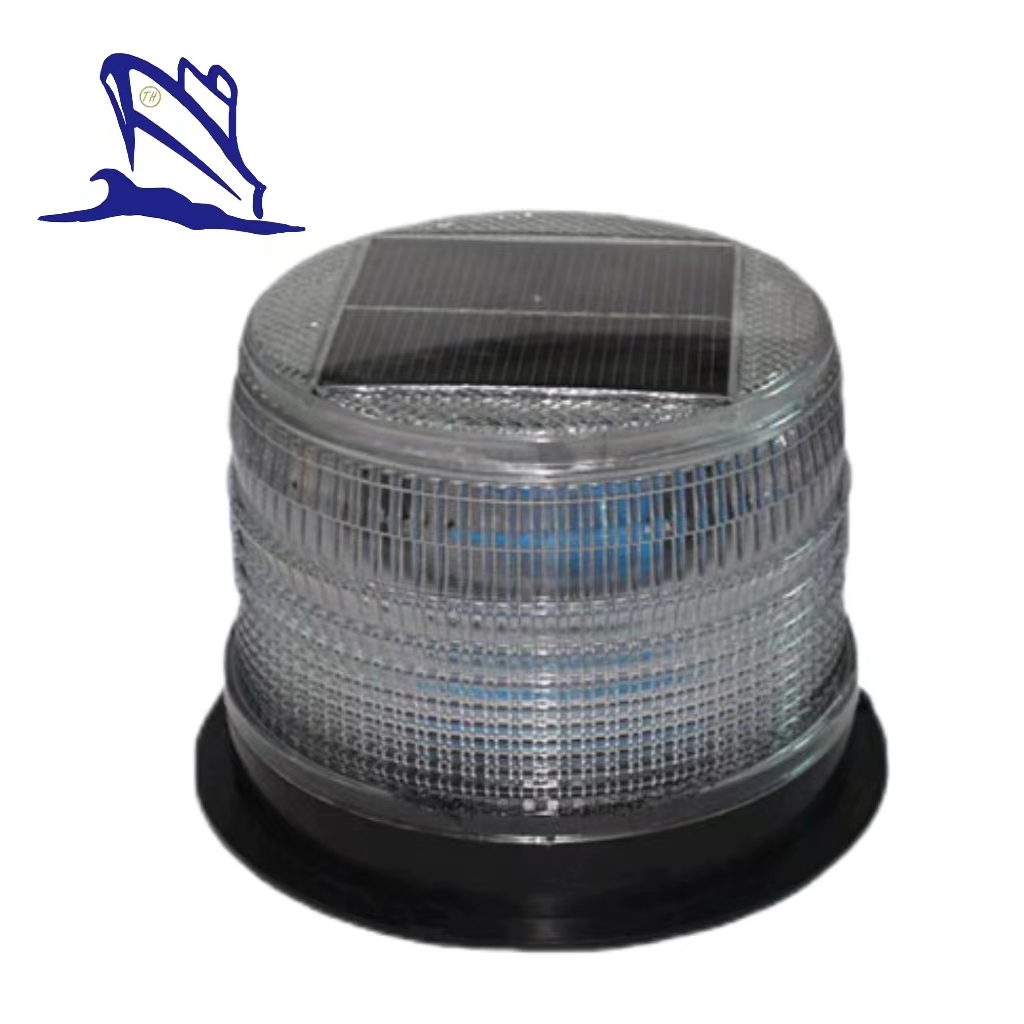

Navigation Warning Light
Navigation Warning Light
1. Suitable for inland river and offshore wreck marks;
2. Anti-impact, Durable;
3. Solar Power Supply;
4. Light-operated, Automatically Flash at Night, Close during the Day;
Technical Parameters
Model | HS-101R/HS-101Y | |
Specification | HS-101R HS-101Y | Height:14cm, Diameter:18cm |
Pacakge | ||
Solar Panels | Types and Size | 5V 170MA 88*88mm |
Battery | Number | 2-cell 3.2V Lithium Iron Phosphate Battery |
Use Cycles | 500 Times Charge and Discharge | |
Frequency | 9.26Hz | |
Size | Ø5 | |
LED | Number | 8Red/8Yellow |
Color | Red/Yellow | |
Burst Mode | Alarm Light Flash | |
Using Time After Full Charge | 40h above | |
Charging Time | 15h | |
Light-operated Start Brightness | 300LUX | |
Service Life | 3~5years | |
Production Material | Shell: AS Chassis:ABS | |
Visual Range | 200meters above (dark environment) | |
Model | HS-101RB | |
Specification | HS-101RB | Height:14cm, Diameter:18cm |
Pacakge | ||
Solar Panels | Types and Size | 5V 190MA 88*88mm |
Battery | Number | 2-cell 3.2V Lithium Iron Phosphate Battery |
Use Cycles | 500 Times Charge and Discharge | |
Frequency | 9.26Hz | |
Size | Ø5 | |
LED | Number | 8Red+8Blue |
Color | ||
Burst Mode | Red and Blue Flash | |
Using Time After Full Charge | 40h above | |
Charging Time | 15h | |
Light-operated Start Brightness | 300LUX | |
Service Life | 3~5years | |
Production Material | Shell: AS Chassis:ABS | |
Visual Range | 200meters above (dark environment) | |
Check List of Light Intensity, Visual Range and Divergence Angle
Light Color | Power(W) | Vertical Divergence Angle(2ө) | Light Intensity of Fixed Light(cd) | Fixed Light Intensity Visual Range(nm) | 0.5s Bright Light Intensity(cd) | 0.5s Bright Light Intensity Visual Distance(nm) |
Red | 2.1 | 8° | 58 | 4.8 | 41.6 | 4.3 |
Green | 3.1 | 8° | 75 | 5 | 54 | 4.5 |
Yellow | 1.96 | 8° | 53 | 4.5 | 38.46 | 4.16 |
White | 3.1 | 8° | 64 | 4.75 | 46.08 | 4.3 |
