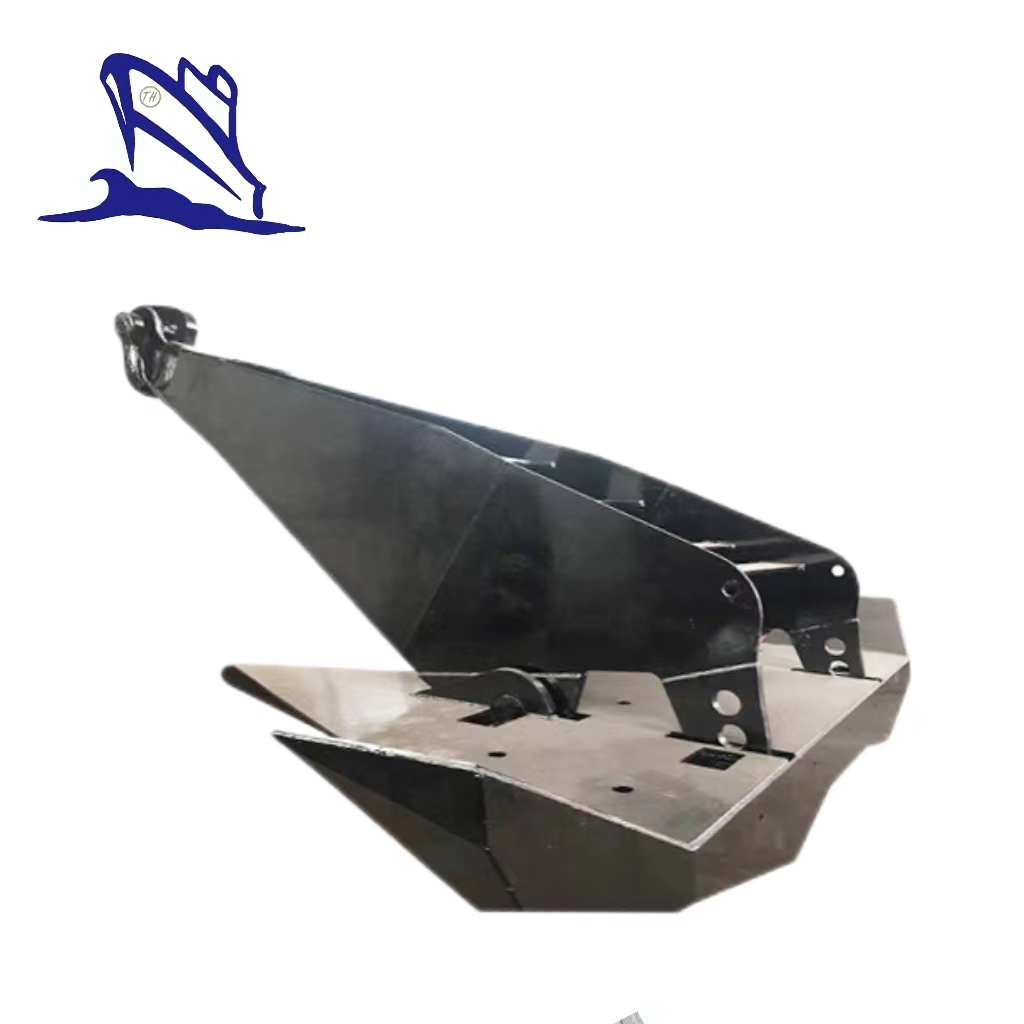

Stevshark Anchor
Introduction:
Stevshark anchor is also called Stevshark MK5 anchor, MK5 anchor, Drag anchor, Offshore anchor, Drag Embedment anchor,etc. Stevshark anchor is a kind of super high holding power anchor and is widely used in offshore mooring and platform mooring. It does well in hard soil such as limestone, calcarenite, very dense sands and coral.
Main Model of Stevshark Anchor:

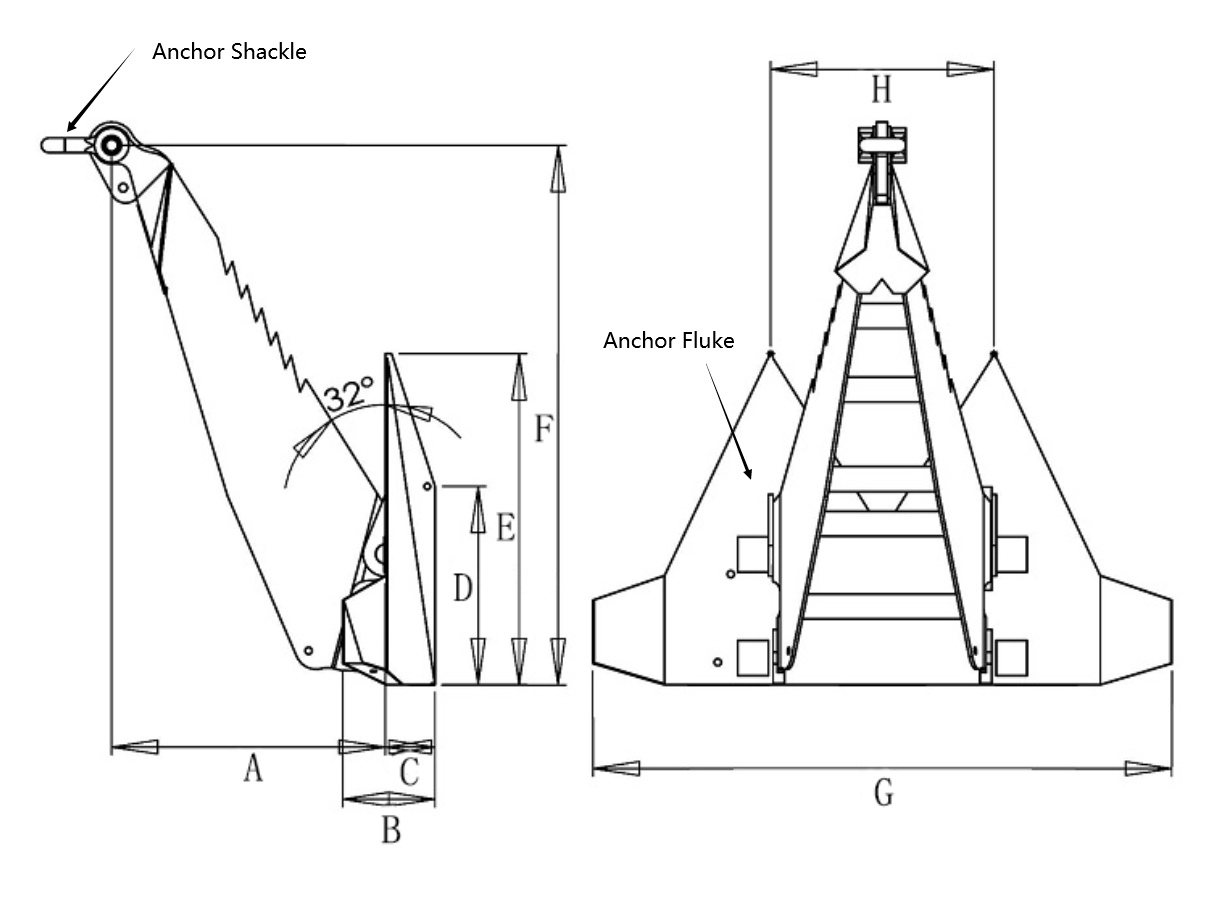

Nominal Weight(kg) | Size(mm) | |||||
A | C | E | F | G | H | |
300 | 927 | 160 | 1101 | 1828 | 1968 | 757 |
500 | 1035 | 179 | 1233 | 2040 | 2197 | 845 |
1000 | 1304 | 226 | 1562 | 2570 | 2770 | 1064 |
1500 | 1495 | 261 | 1802 | 2944 | 3174 | 1230 |
2000 | 1646 | 285 | 1969 | 3244 | 3494 | 1343 |
3000 | 1886 | 332 | 2279 | 3711 | 4001 | 1540 |
4000 | 2074 | 359 | 2431 | 4083 | 4403 | 1692 |
5000 | 2238 | 396 | 2697 | 4402 | 4746 | 1835 |
6000 | 2374 | 411 | 2841 | 4680 | 5040 | 1988 |
7000 | 2490 | 443 | 3001 | 4900 | 5280 | 2045 |
8000 | 2619 | 464 | 3156 | 5151 | 5553 | 2139 |
9000 | 2719 | 471 | 3253 | 5359 | 5772 | 2219 |
10000 | 3822 | 501 | 3400 | 5549 | 5932 | 2305 |
12000 | 3000 | 533 | 3614 | 5893 | 6353 | 2450 |
14000 | 3159 | 562 | 3805 | 6209 | 6694 | 2580 |
15000 | 3232 | 575 | 3804 | 6354 | 6850 | 2640 |
16000 | 3282 | 569 | 3927 | 6469 | 6967 | 2673 |
18000 | 3436 | 612 | 4139 | 6753 | 7280 | 2806 |
20000 | 3559 | 634 | 4287 | 6994 | 7540 | 2907 |
22000 | 3674 | 654 | 4426 | 7220 | 7784 | 3001 |
25000 | 3834 | 684 | 4619 | 7535 | 8123 | 3132 |
30000 | 4075 | 727 | 4919 | 3003 | 8635 | 3329 |
Features:
Type: Stevshark Anchor;
Material: Q345C Steel Plate;
Nominal Weight: 300KG-30000KG;
Finish: Bituminous Paint;
Packing: Carton, Plywood Case, Plywood Pallet or Nude Packing;
Certificates: CCS, ABS, BV, LR, NK, RINA,etc.
