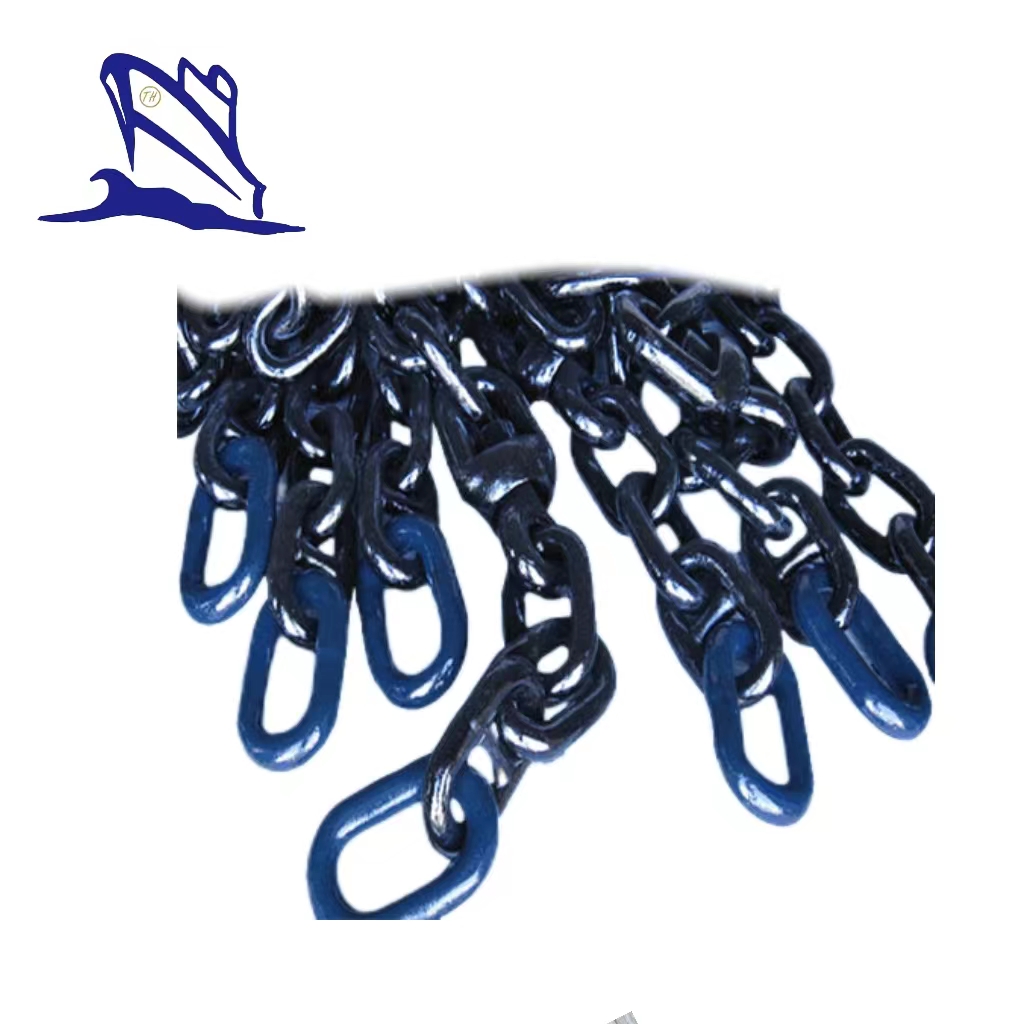

Buoy Chain
Buoy Chain
1. Type: Anchor Chains for Buoy Mooring Systems
2. Application: used for mooring or fixing various navigational buoys
3. Material: Chain Steel for Ship
4. Buoy Specification: Dia. 0.6~3.6m
5. Structure: Welded Chain
6. Treatment: Heat Treatment to Ensure Mechanical Properties
7. Components: V-cable, Short Cable, Half Cable, Whole Cable, Join Shackle, End Shackle, Swivel or Other Buoy Chain Accessories
8. Smooth Surface of Chain Links and Accessories without Cracks or Any Defects
9. Certificate: CCS,KR, GL, LR, BV, RS, RINA etc.
10. Can be customized according to customer’s special requirements

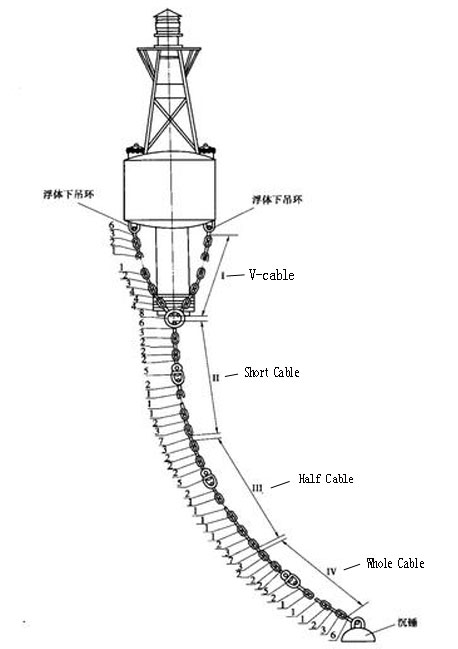

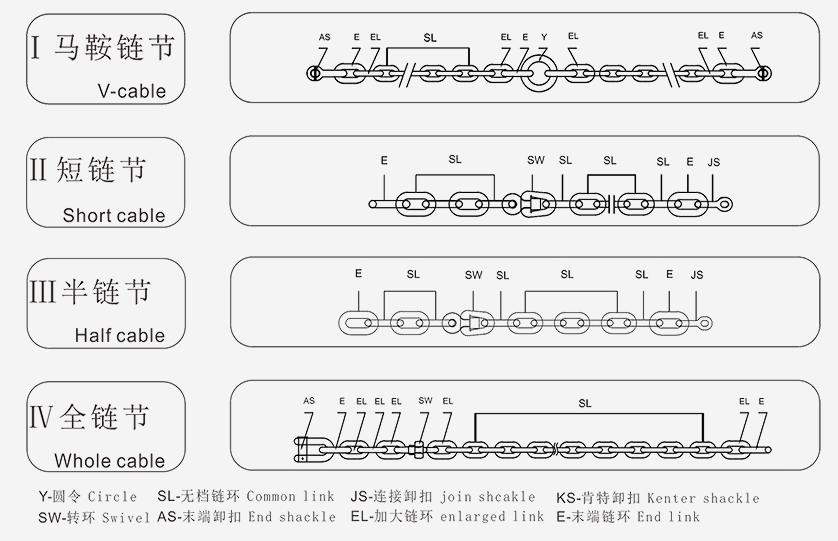

The Cable of Buoy Chain
The Parameters of Buoy Chain
Chain Diameter(mm) | V-cable | Short Cable | Half Cable | Whole Cable | Specification of Buoy | ||||||||||
Studless Link(SL) | Enlarged Link(EL) | End Link9E) | Swivel(SW) | End Shackle(AS) | Join Shackle(JS) | Circle Link(Y) | Length(m) | Weight(kg) | Length(m) | Weight(kg) | Length(m) | Weight(kg) | Length(m) | Weight(kg) | |
11 | 12.5 | 13 | 13 | 15 | 14 | 17 | 2.27 | 3.89 | 4.5 | 6.04 | 13.7 | 17.97 | 27.5 | 35.91 | HF-0.6-D1 |
12.5 | 14 | 16 | 15 | 17.5 | 16 | 18 | 2.72 | 7.59 | 4.5 | 11.63 | 13.7 | 34.04 | 27.5 | 67.63 | HF- 0.8-D1 |
14 | 16 | 17.5 | 17 | 19.5 | 19 | 22 | 2.76 | 10.37 | 4.5 | 16.24 | 13.7 | 47.64 | 27.5 | 94.37 | HF- 1.08-D1 |
17.5 | 19 | 20.5 | 21 | 24.5 | 23 | 25 | 2.77 | 18.44 | 4.5 | 27.78 | 13.7 | 81.64 | 27.5 | 162.42 | HF- 1.2-D1 |
22 | 24 | 26 | 26 | 31 | 29 | 34 | 2.79 | 31.73 | 4.5 | 47.03 | 13.7 | 136.75 | 27.5 | 269.71 | HF- 1.5-D1 |
28 | 30 | 34 | 34 | 39 | 36 | 40 | 3.94 | 65.42 | 4.5 | 79.39 | 13.7 | 222.58 | 27.5 | 442.36 | HF- 1.8-D1 |
34 | 36 | 40 | 41 | 48 | 44 | 50 | 5.26 | 153.65 | 4.5 | 114.15 | 13.7 | 328.86 | 27.5 | 650.91 | HF- 2.4-D1 |
38 | 40 | 46 | 46 | 53 | 49 | 56 | 5.24 | 197.44 | 4.5 | 136.26 | 13.7 | 397.66 | 27.5 | 774.37 | HF- 2.4-D2 |
3.0-3.6 | |||||||||||||||
