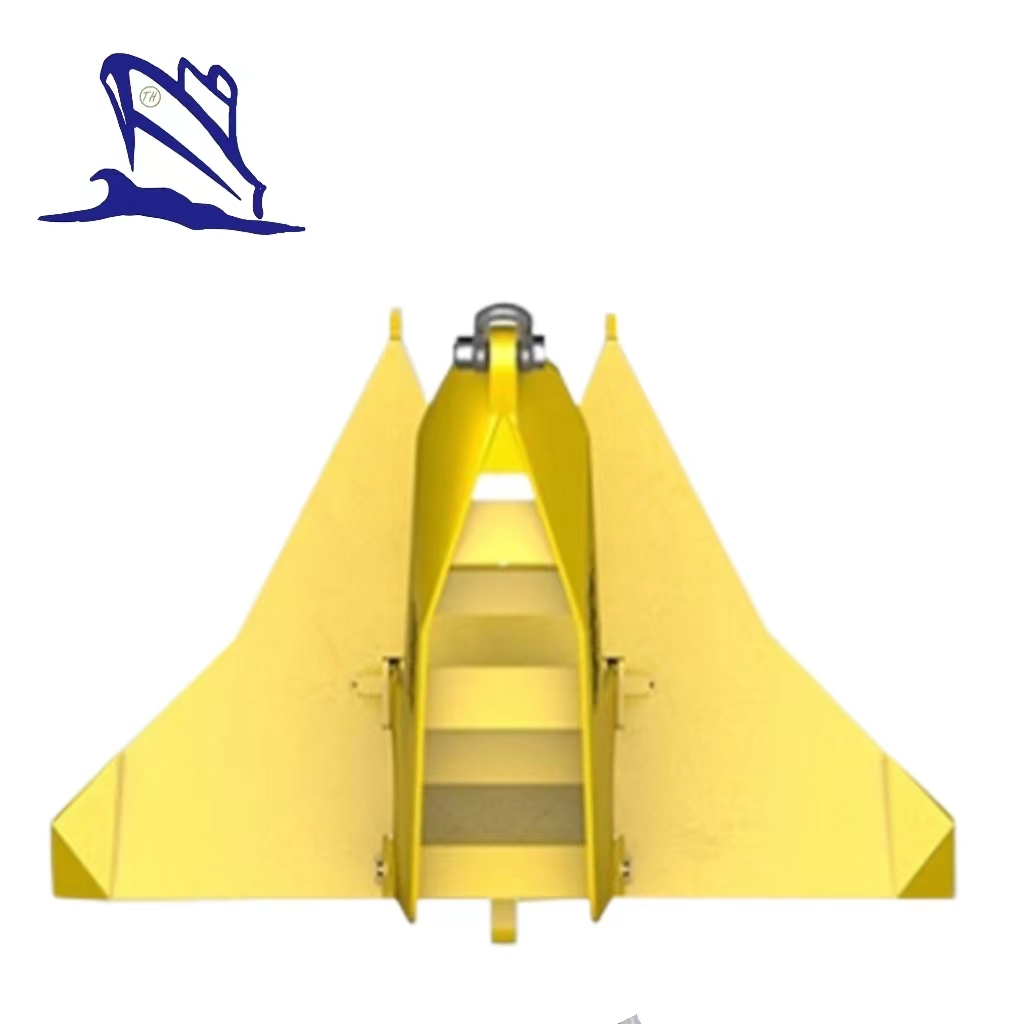

Bruce FFTS MK4 Anchor Introduction:
Introduction:
Bruce FFTS MK4 anchor is also called Bruce FFTS anchor, FFTS anchor, Bruce FFTS PM anchor, etc. It is mainly used for oil rig. Bruce FFTS MK4 anchor is also a type of stockless anchor, but most stockless anchors are made by casting, and Bruce FFTS MK4 anchor is manufactured by welding.
Main Model of Bruce FFTS MK4 Anchor:

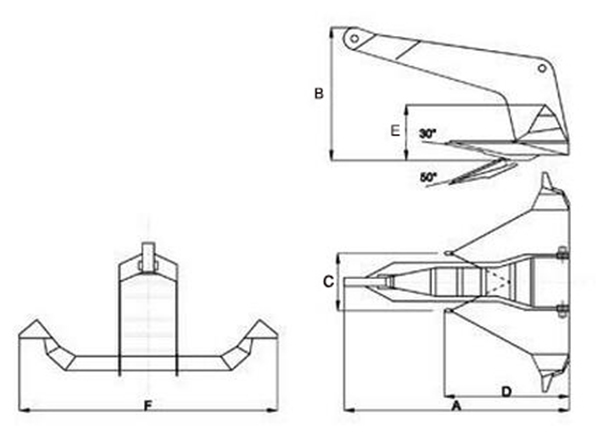

Nominal Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
500 | 1827 | 1280 | 500 | 1303 | 606 | 2188 |
800 | 2073 | 1452 | 667 | 1479 | 688 | 2484 |
1500 | 2648 | 1854 | 723 | 1888 | 878 | 3172 |
3000 | 3409 | 2388 | 931 | 2431 | 1131 | 4085 |
4500 | 3800 | 2751 | 1047 | 2733 | 1298 | 4605 |
5000 | 4029 | 2822 | 1100 | 2873 | 1336 | 4828 |
6000 | 4227 | 3028 | 1161 | 3031 | 1430 | 5104 |
6500 | 4326 | 3131 | 1192 | 3110 | 1478 | 5242 |
9000 | 4846 | 3394 | 1324 | 3456 | 1607 | 5806 |
10000 | 5287 | 3563 | 1390 | 3628 | 1687 | 6095 |
12000 | 5437 | 3808 | 1486 | 3878 | 1803 | 6514 |
15000 | 5728 | 4012 | 1566 | 4085 | 1900 | 6864 |
18000 | 6129 | 4292 | 1674 | 4371 | 2031 | 7343 |
20000 | 6319 | 4426 | 1726 | 4507 | 2096 | 7571 |
30000 | 7225 | 5060 | 1974 | 5153 | 2396 | 8656 |
Features:
Type: Super High Holding Power Anchor;
Main Material: Q345C Steel Plate;
Nominal Weight: 500kgs-30000kgs;
Finish: Bituminous Paint;
Packing: Carton, Plywood Case, Plywood Pallet or Nude Packing;
Certificates: CCS, ABS, BV, LR, NK, RINA,etc.
