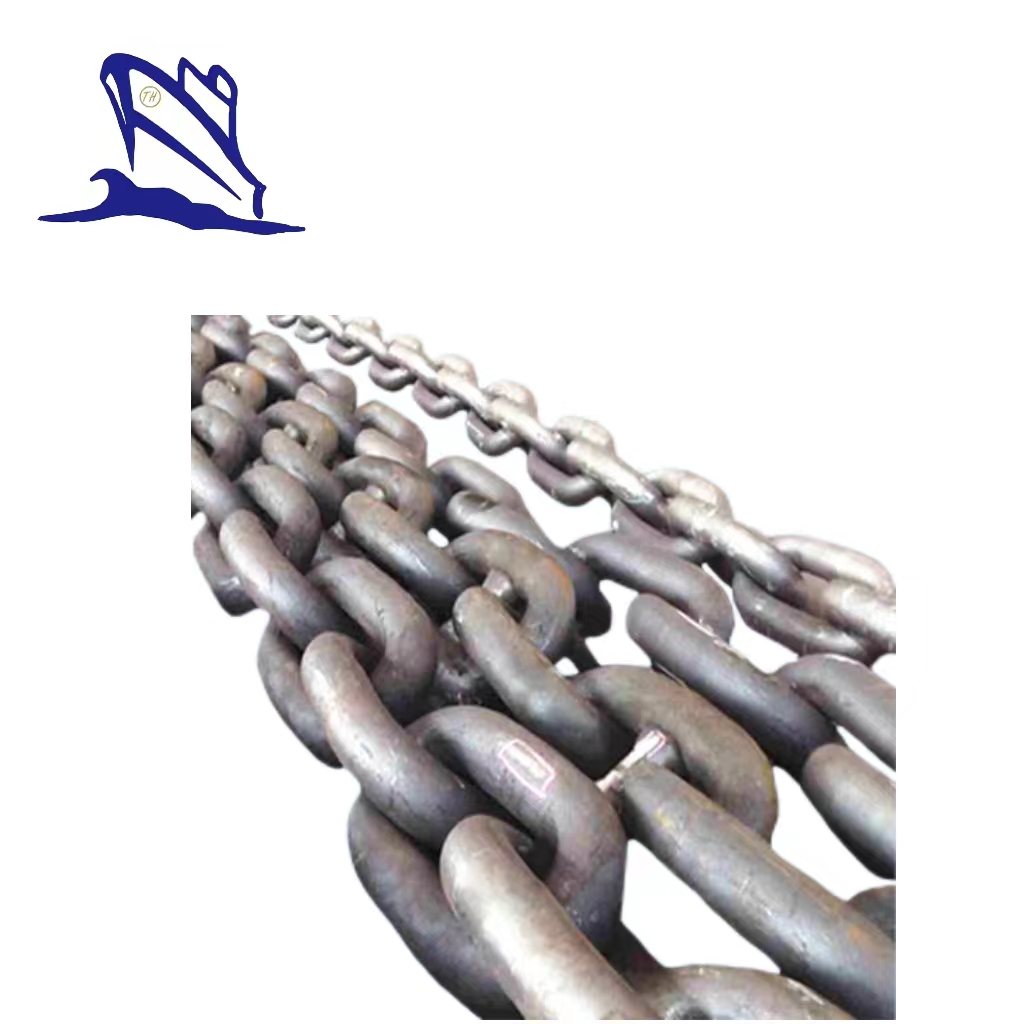

Grade R3S Offshore Mooring Chain
Grade R3S Offshore Mooring Chain
1. Type: Offshore Mooring Chain
2. Grade: (ABS/DNV) R3S
3. Chain Dia.: 50mm~132mm
4. Tension Load: 1740KN~104888KN
5. Breaking Load: 2490KN~14509KN
6. Material: R3S Offshore Mooring Chain Steel;
7. Available Customized Service
8. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.
9. Application: Mobile Offshore Mooring Unit,Marine Load System,Fixed Offshore Development Facility;
10. Long Service Life
11. High and Stable Mechanical Properties
12. Good Corrosion Resistance,Wear Resistance
Mechanical Properties of R3S Mooring Chain
Grade | Yield Point (N/mm²,min) | Tensile Strength (N/mm²,min) | Elongation (%,min) | Reduction of Area (%,min) | Impact Test(V-notch ) | ||
Test Temperature (℃) | Impact (J,min) | ||||||
Base Part | Weld Part | ||||||
ABS/RQ3S DNV/NVR3S | 490 | 770 | 15 | 50 | 0 | 65 | 53 |
-20 | 45 | 43 | |||||
