MARINE ANCHOR

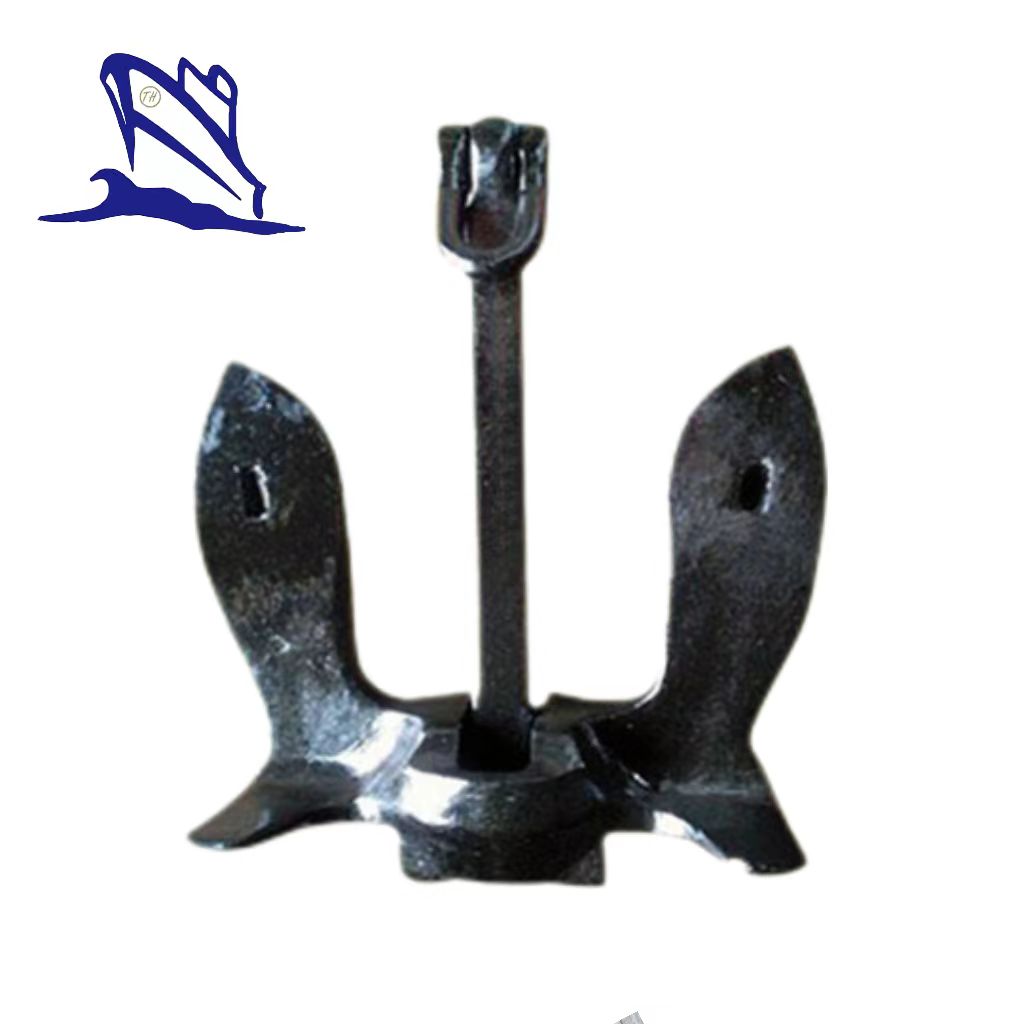

US Navy Stockless Anchor

Introduction:

It is also called U.S.N. stockless anchor or American Navy anchor. This anchor is similar to Baldt stockless anchor. US Navy stockless anchor was invented in 1821, it has longer flukes and greater area.

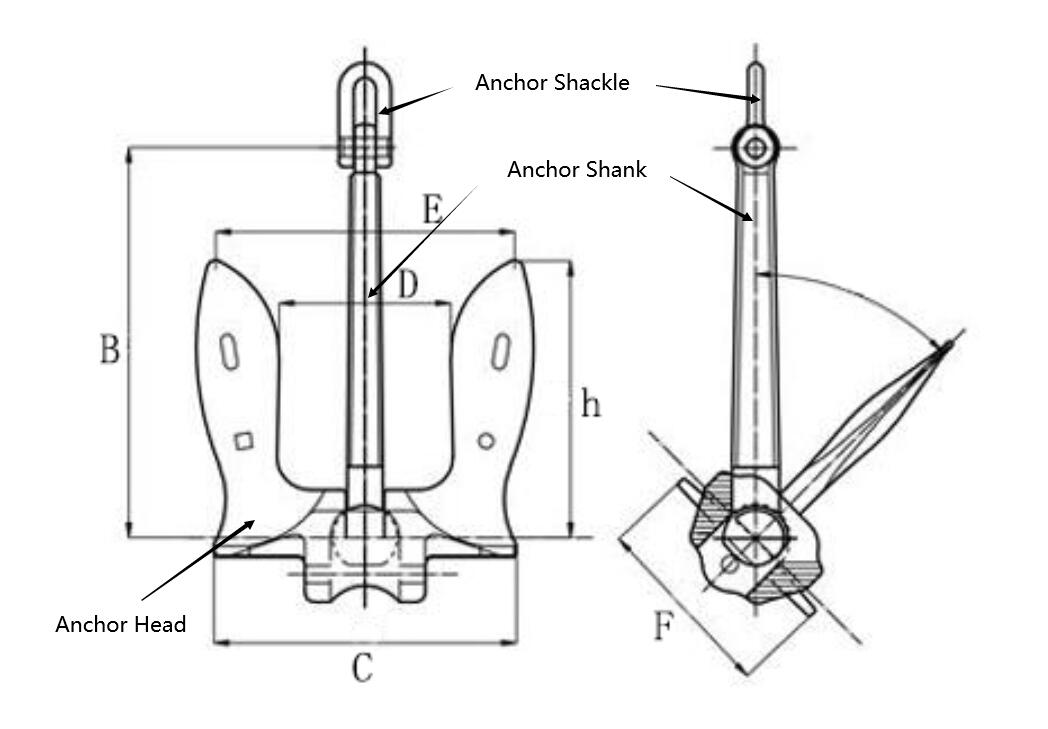

Main Model of US Navy Stockless Anchor:

Nominal Weight (kg)	Size(mm)
Nominal Weight (kg)	B	C	D	E	F	h
300	727	635	319	562	348	510
400	800	699	351	619	364	570
500	863	753	379	666	412	614
600	914	800	402	708	438	652
750	984	842	423	763	461	687
800	1008	880	443	778	483	710
1000	1071	948	477	839	520	773
1200	1152	1008	507	892	532	822
1300	1184	1035	521	926	567	844
1500	1244	1086	546	962	596	883
1800	1320	1154	580	1021	632	941
2000	1371	1195	601	1058	655	975
2200	1412	1234	621	1092	676	1006
2500	1473	1287	648	1139	706	1050
3000	1564	1398	704	1270	775	1050
3500	1641	1440	725	1275	790	1175
4000	1724	1506	758	1333	826	1228
5000	1884	1622	816	1436	889	1323
6000	1974	1724	867	1528	947	1403
7000	2082	1815	913	1606	996	1480
8000	2171	1897	955	1679	1040	1547
9000	2257	1973	993	1747	1082	1609
10000	2336	2044	1028	1809	1120	1667
11000	2413	2110	1062	1868	1158	1721
12000	2486	2172	1093	1924	1193	1771
13000	2540	2231	1122	1965	1194	1819
14500	2641	2313	1144	2047	1270	1887
15000	2679	2340	1177	2089	1295	1908
16000	2735	2390	1203	2116	1311	1950
18000	2844	2486	1251	2200	1365	2028
20000	2946	2575	1296	2280	1412	2100
22500	3060	2678	1345	2370	1463	2134
25000	3174	2774	1396	2456	1521	2262
30000	3371	2949	1483	2628	1631	2404
