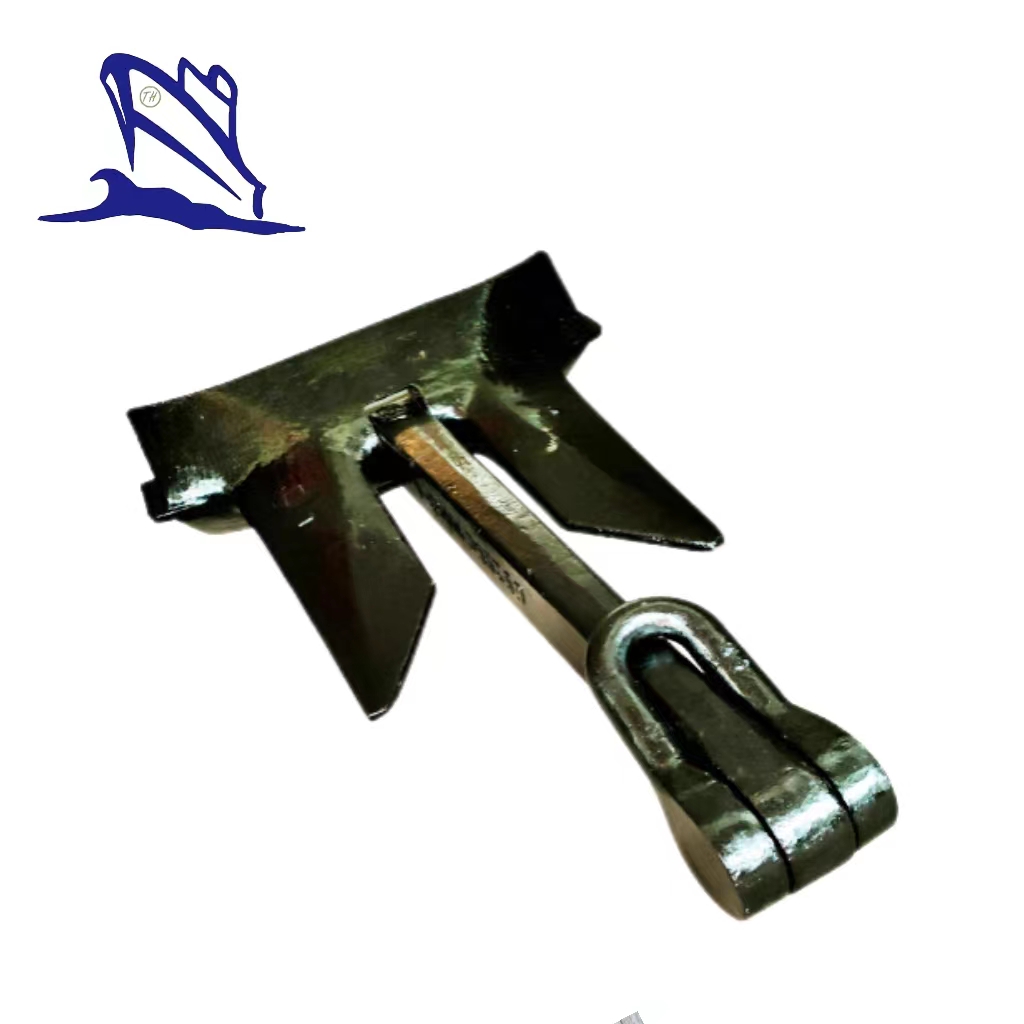

AC-14 HHP Anchor
Application:
AC-14 HHP Anchor, also called AC-14 type anchor, AC-14 Stockless Anchor, AC-14 HHP Stockless anchor, AC-14 High Holding Power Anchor, etc. AC-14 HHP anchor is a kind of stockless anchor with high holding power. It is one of the most widely used anchors like Hall Anchor, Pool Anchor, Speck Anchor etc. Nowadays, it is used extensively in the marine and offshore industry because of great versatility coupled with higher efficiency (weight or holding power) than its predecessor the stockless anchor, allowing the user to decrease the weight needed. It can be applied in a variety of sea bottom conditions.

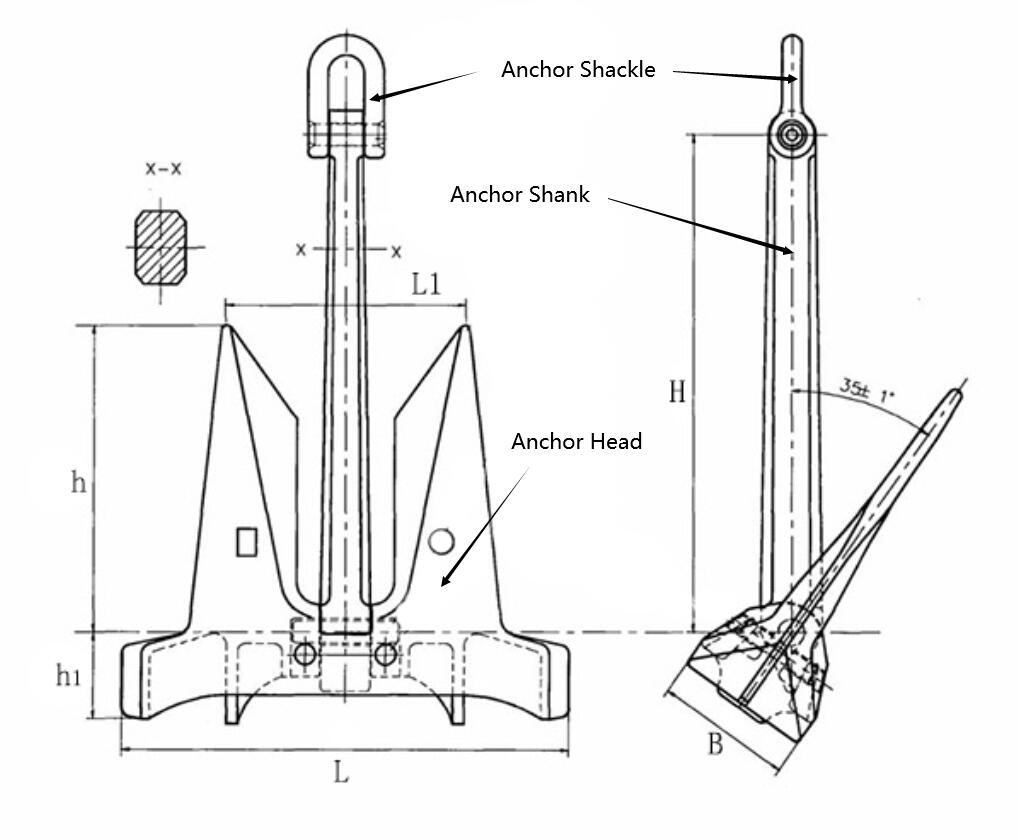

Main Model of AC-14 HHP Anchor:
Nominal Weight (kg) | H (mm) | L1 (mm) | h (mm) | L (mm) | h1 (mm) | B (mm) |
56 | 612 | 298 | 376 | 555 | 109 | 170 |
100 | 745 | 364 | 458 | 675 | 130 | 200 |
180 | 909 | 442 | 558 | 822 | 162 | 252 |
300 | 1075 | 524 | 660 | 975 | 194 | 298 |
428 | 1213 | 590 | 745 | 1098 | 216 | 336 |
675 | 1410 | 690 | 868 | 1278 | 250 | 390 |
750 | 1450 | 700 | 878 | 1315 | 256 | 396 |
910 | 1560 | 760 | 957 | 1410 | 273 | 430 |
970 | 1592 | 775 | 978 | 1445 | 284 | 440 |
1080 | 1650 | 805 | 1014 | 1495 | 294 | 455 |
1305 | 1760 | 858 | 1082 | 1595 | 313 | 485 |
1440 | 1818 | 885 | 1118 | 1645 | 324 | 505 |
1710 | 1925 | 940 | 1184 | 1745 | 343 | 532 |
1845 | 1975 | 965 | 1215 | 1785 | 347 | 546 |
2100 | 2065 | 1005 | 1268 | 1865 | 354 | 570 |
2475 | 2175 | 1062 | 1340 | 1970 | 385 | 602 |
2835 | 2265 | 1105 | 1395 | 2055 | 399 | 625 |
3550 | 2455 | 1198 | 1508 | 2225 | 438 | 680 |
3940 | 2540 | 1240 | 1562 | 2300 | 453 | 705 |
4500 | 2655 | 1295 | 1632 | 2405 | 473 | 735 |
4840 | 2720 | 1330 | 1670 | 2465 | 490 | 755 |
5610 | 2858 | 1396 | 1758 | 2590 | 509 | 790 |
6000 | 2922 | 1426 | 1798 | 2646 | 515 | 810 |
6900 | 3062 | 1496 | 1884 | 2775 | 545 | 848 |
7800 | 3190 | 1558 | 1962 | 2890 | 569 | 884 |
8300 | 3256 | 1590 | 2002 | 2950 | 574 | 902 |
9300 | 3382 | 1652 | 2080 | 3064 | 603 | 936 |
9900 | 3452 | 1686 | 2124 | 3128 | 616 | 956 |
10575 | 3523 | 1720 | 2166 | 3192 | 628 | 976 |
11100 | 3589 | 1720 | 2166 | 3192 | 628 | 976 |
11700 | 3650 | 1782 | 2245 | 3308 | 648 | 1010 |
12300 | 3683 | 1794 | 2260 | 3330 | 655 | 1018 |
12900 | 3772 | 1842 | 2320 | 3418 | 670 | 1044 |
13500 | 3830 | 1870 | 2355 | 3470 | 682 | 1060 |
14100 | 3885 | 1896 | 2389 | 3520 | 689 | 1076 |
14700 | 3940 | 1924 | 2423 | 3570 | 700 | 1090 |
15400 | 4002 | 1954 | 2461 | 3626 | 710 | 1108 |
16100 | 4062 | 1982 | 2498 | 3680 | 721 | 1125 |
16900 | 4128 | 2016 | 2538 | 3740 | 721 | 1144 |
17800 | 4200 | 2050 | 2583 | 3806 | 725 | 1162 |
18800 | 4277 | 2088 | 2630 | 3875 | 729 | 1185 |
20000 | 4350 | 2101 | 2694 | 3945 | 729 | 1185 |
25000 | 5046 | 2437 | 3125 | 4577 | 846 | 1375 |
30000 | 5162 | 2558 | 3218 | 4730 | 898 | 1440 |
35000 | 5434 | 2693 | 3388 | 4979 | 945 | 1516 |
40000 | 5678 | 2814 | 3540 | 5203 | 988 | 1584 |
45000 | 5905 | 2926 | 3681 | 5411 | 1027 | 1647 |
50000 | 6117 | 3031 | 3813 | 5605 | 1064 | 1706 |
55000 | 6313 | 3128 | 3936 | 5785 | 1098 | 1761 |
60000 | 6504 | 3223 | 4055 | 5960 | 1131 | 1814 |
65000 | 6680 | 3310 | 4164 | 6121 | 1162 | 1863 |
70000 | 6845 | 3392 | 4267 | 6272 | 1191 | 1909 |
75000 | 7005 | 3471 | 4367 | 6419 | 1219 | 1954 |
80000 | 7155 | 3545 | 4460 | 6556 | 1245 | 1996 |
90000 | 7444 | 3688 | 4640 | 6821 | 1295 | 2076 |
95000 | 7578 | 3755 | 4724 | 6944 | 1318 | 2114 |
100000 | 7707 | 3819 | 4804 | 7062 | 1341 | 2150 |
