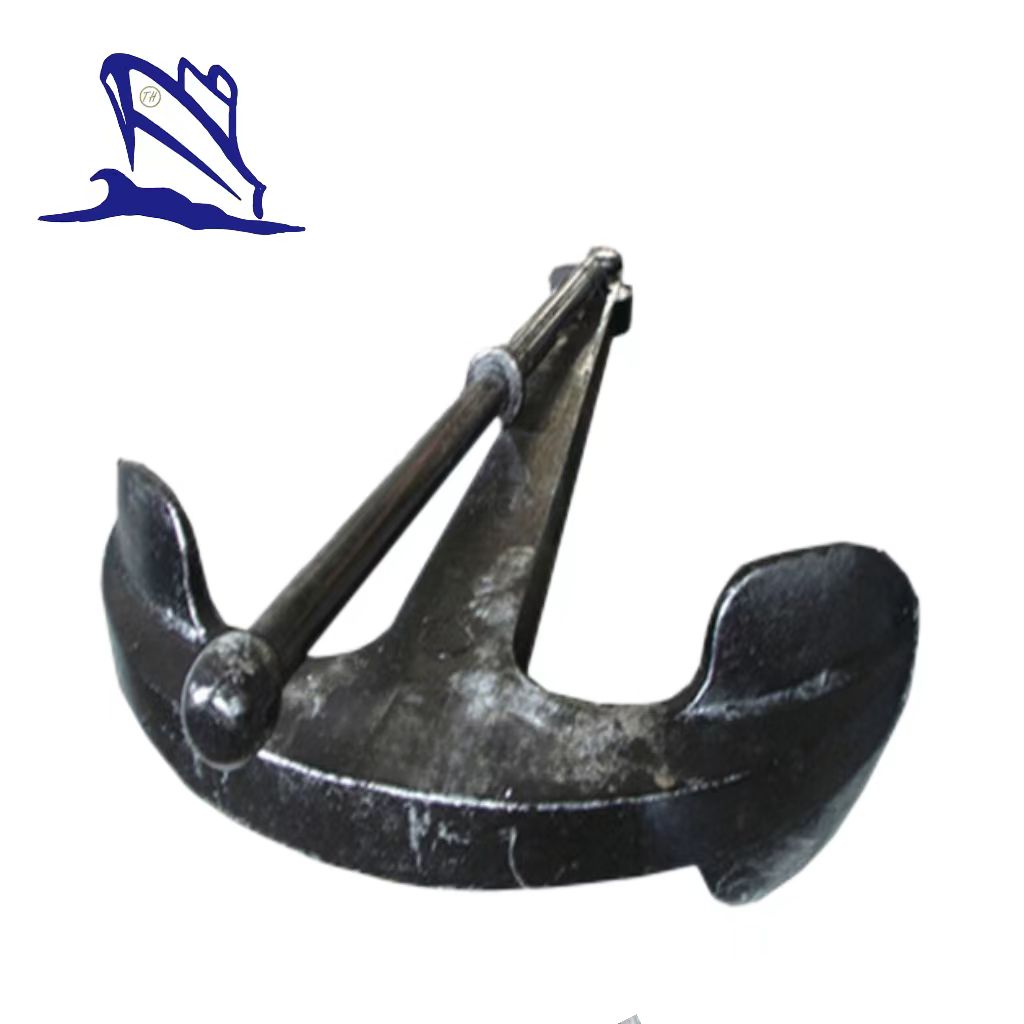

Admiralty Anchor
Application:
Admiralty anchor is also called Admiralty type anchor, fisherman anchor, etc. The admiralty anchor is recognized as a typical anchor of a sailing ship. Its' cross bar pass through the central shank, at ninety degrees to the claws. Admiralty anchor will not overturn under the action of the cross bar, and the grab-to-weight ratio is larger than that of the general anchor type.
Main Model of Admiralty anchor:
Nominal Weight (kg) | Dimensions (mm) | ||||
H | h | h1 | B | C | |
50 | 960 | 230 | 42 | 635 | 185 |
75 | 1,105 | 266 | 45 | 710 | 210 |
100 | 1,215 | 293 | 49 | 780 | 230 |
125 | 1,310 | 316 | 52 | 840 | 245 |
150 | 1,395 | 336 | 55 | 900 | 265 |
200 | 1,535 | 370 | 61 | 990 | 290 |
250 | 1,650 | 398 | 65 | 1,065 | 310 |
300 | 1,755 | 423 | 70 | 1,105 | 330 |
400 | 1,930 | 465 | 77 | 1,240 | 365 |
500 | 2,080 | 502 | 84 | 1,335 | 390 |
600 | 2,210 | 533 | 89 | 1,440 | 415 |
700 | 2,330 | 560 | 93 | 1,500 | 440 |
800 | 2,435 | 587 | 97 | 1,570 | 460 |
900 | 2,530 | 610 | 101 | 1,630 | 475 |
1,000 | 2,620 | 633 | 104 | 1,685 | 495 |
1,250 | 2,825 | 680 | 112 | 1,810 | 535 |
1,500 | 3,000 | 725 | 118 | 1,955 | 565 |
2,000 | 3,300 | 797 | 131 | 2,140 | 625 |
2,500 | 3,550 | 857 | 138 | 2,270 | 672 |
3,000 | 3,780 | 912 | 150 | 2,415 | 715 |
3,500 | 3,980 | 960 | 158 | 2,540 | 750 |
4,000 | 4,160 | 1,000 | 165 | 2,650 | 785 |
5,000 | 4,480 | 1,100 | 184 | 2,830 | 800 |
6,000 | 4,740 | 1,113 | 190 | 3,000 | 938 |
7,000 | 4,760 | 1,180 | 200 | 3,165 | 960 |
8,000 | 5,025 | 1,280 | 210 | 3,300 | 980 |
9,000 | 5,450 | 1,330 | 220 | 3,440 | 990 |
10,000 | 5,680 | 1,340 | 230 | 3,600 | 1,085 |
