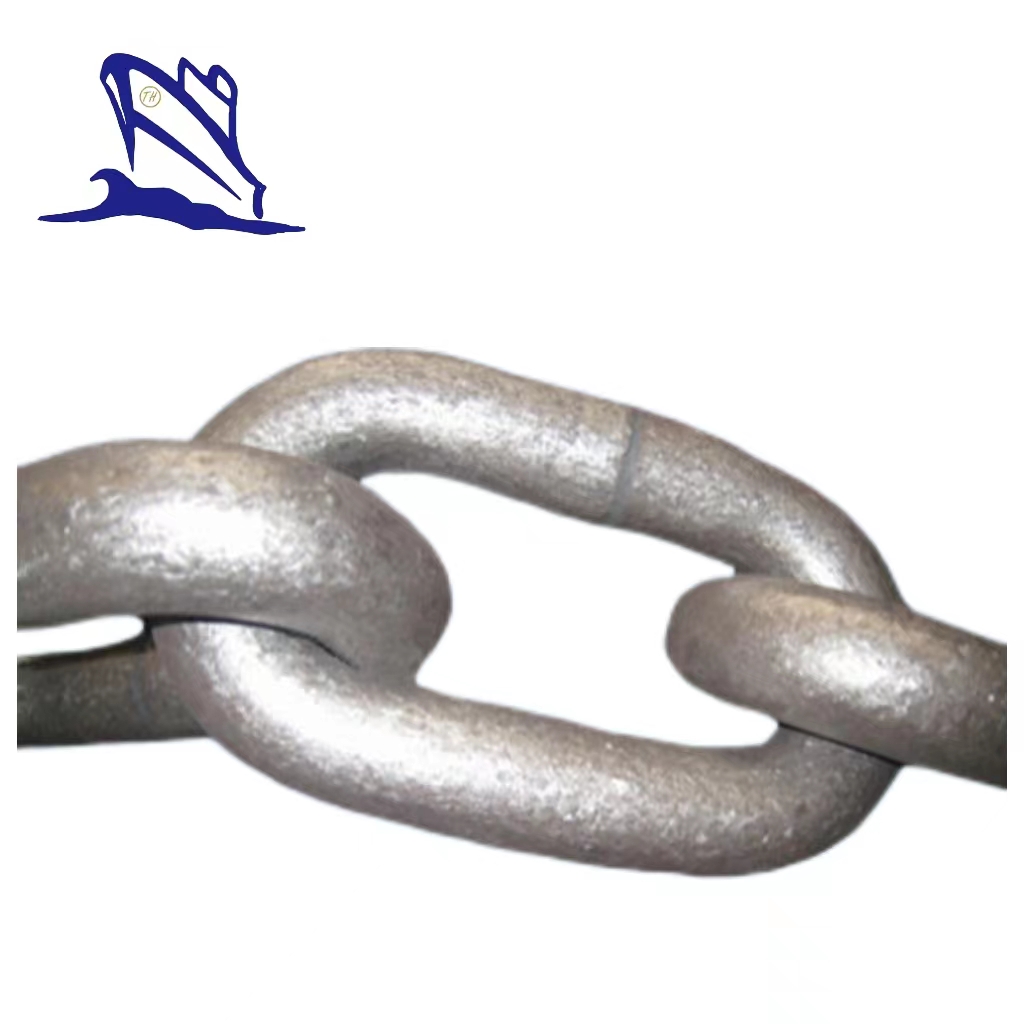

Studless Link Mooring Chain

Studless Link Mooring Chain

1. Dia.: 34mm~162mm

2. Grade: R3,R3S,R4

3. Pull Load Range: 745kN~15641kN

4. Breaking Load Range: 1065kN~22321kN

5. Material: Offshore Mooring Chain Steel

6. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.

7. Customized Service is Available

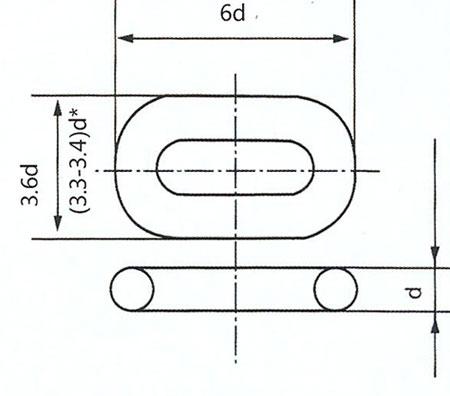

Studless Link for Mooring Chains

Testing Load of Studless Link Mooring Chain

Load(KN)	R3 Studless Chian	R3S Studless Chain	R4 Studless Chain
Pull Load(PL)	0.0156d²(44-0.08d)	0.01743d²(44-0.08d)	0.01918d²(44-0.08d)
Breaking Load(BL)	0.0223d²(44-0.08d)	0.0249d²(44-0.08d)	0.0274d²(44-0.08d)
Note: this load sheet refers to ABS rules and DNV rules, all loading data included in the sheet shall be calculated according to relevant formulas.

ABS,DNV Mooring Chains Metric Load Sheet(Chain Dia. Unit: mm; Load Unit: kN)

Note: the above testing load sheet is only one part. If you want to know more information, please feel free to contact us.
