OFFSHORE PLATFORM EQUIPMENT

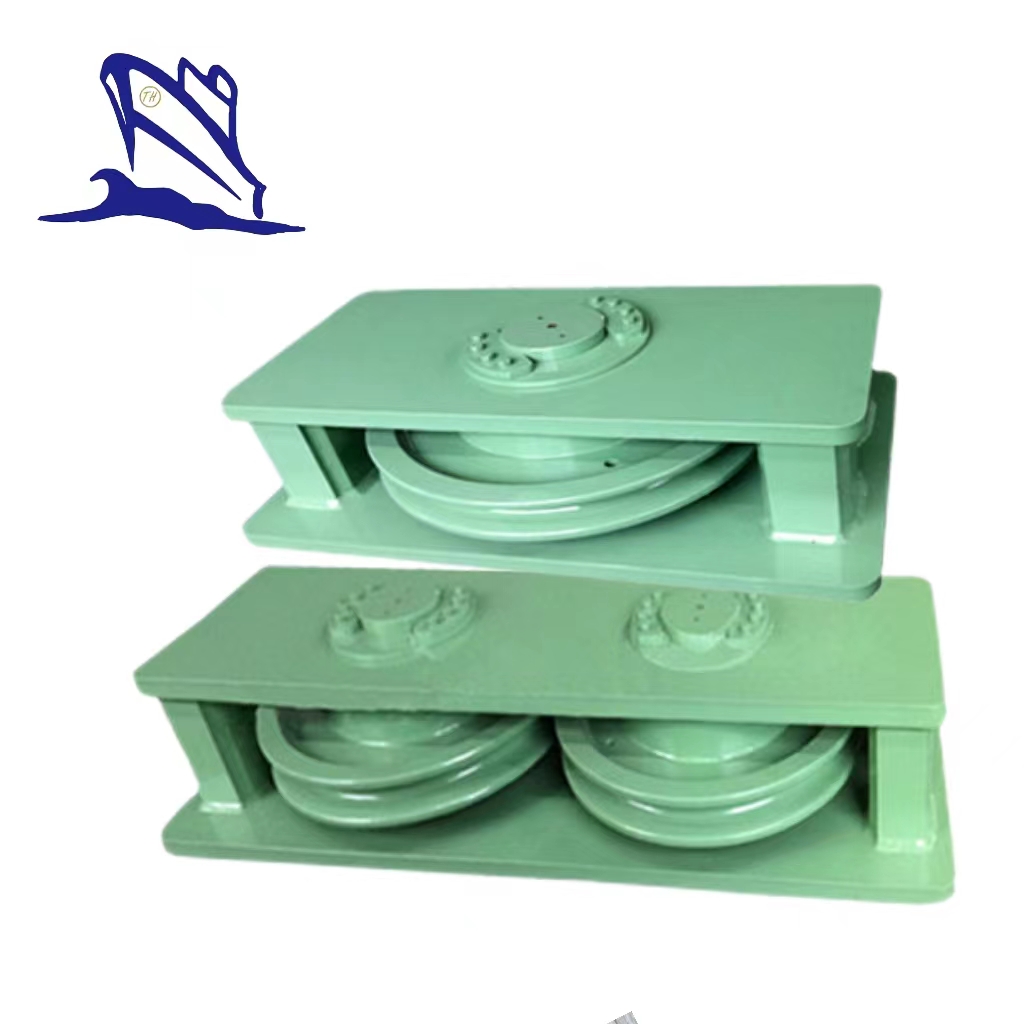

Horizontal Guide Sheave

1. Function: to change the direction of wire ropes without damage to the wire ropes

2. Can withstand breaking strength of wire at 90°warp on sheave

3. For offshore purpose

4. Sealed roller bearings

5. Hardened rope grooves for longer life

6. Wear Resistance, Corrosion Resistance

7. Options: multiple sheaves, bolt down base, load monitoring system etc.

Specifications

1. Type: Single/Double Sheaves

2. Material: Cast Steel

3. Warp Angle: 90°~180°

4. Installation Method: Weld Down/Bolt Down

5. Mounted Position: Deck

6. Paint to your specification

7. Certificate: CCS, ABS, BV, LR, GL etc.

8. Can be customized according to customer's drawing

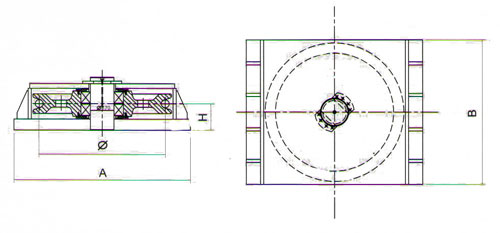

Drawing of Horizontal Single Sheave
