OFFSHORE PLATFORM EQUIPMENT

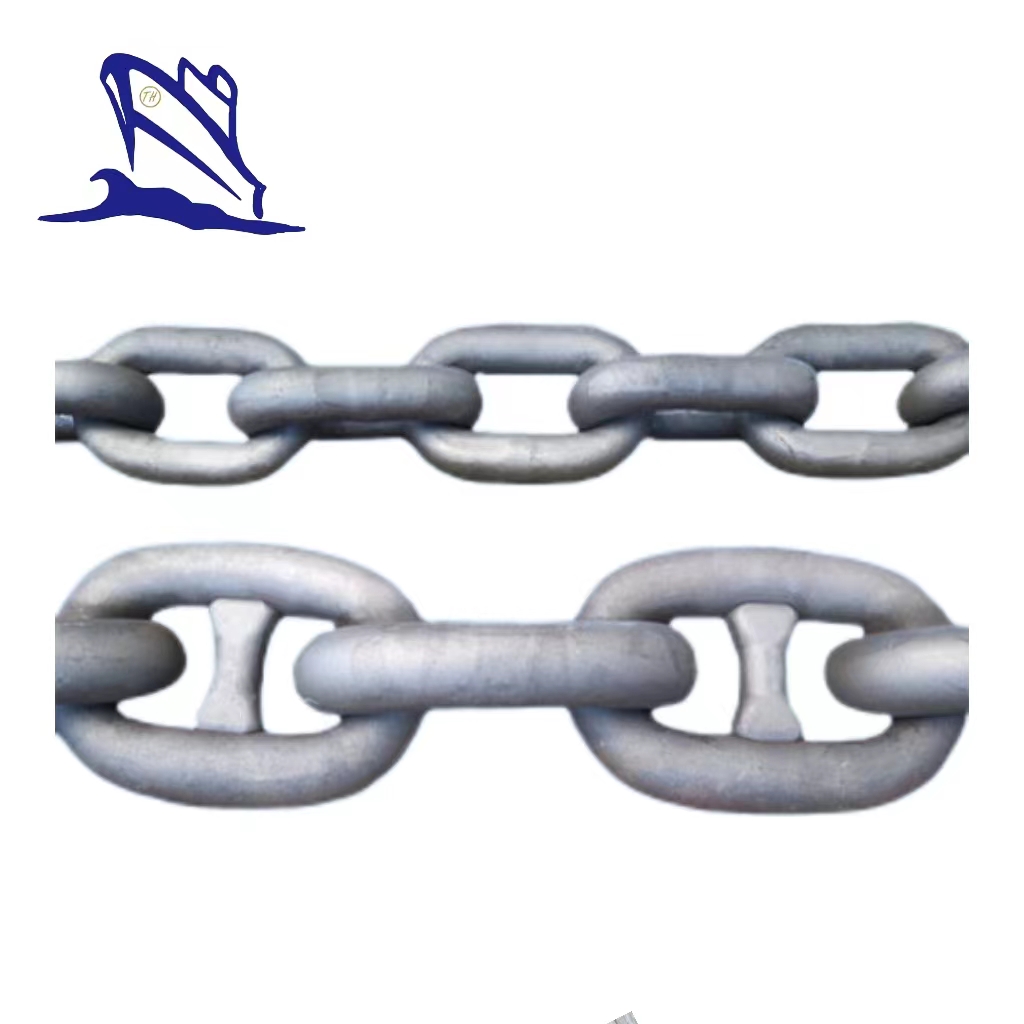

Stud Link Mooring Chain

Stud Link Mooring Chain

1. Dia.: 34mm~162mm

2. Grade: R3,R3S,R4

3. Pull Load Range: 745kN~17596kN

4. Breaking Load Range: 1065kN~22321kN

5. Material: Offshore Mooring Chain Steel

6. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.

7. Customized Service is Available

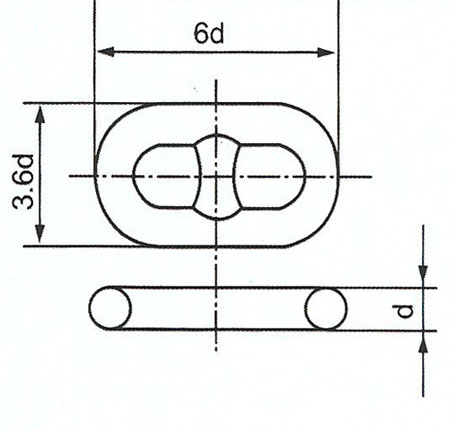

Stud Link Mooring Chain

Testing Load of Stud Link Mooring Chain

Load(KN)	R3 Stud Chian	R3S Stud Chain	R4 Stud Chain
Pull Load(PL)	0.0156d²(44-0.08d)	0.0180d²(44-0.08d)	0.0216d²(44-0.08d)
Breaking Load(BL)	0.0223d²(44-0.08d)	0.0249d²(44-0.08d)	0.0274d²(44-0.08d)
Note: this load sheet refers to ABS rules and DNV rules, all loading data included in the sheet shall be calculated according to relevant formulas.

ABS,DNV Mooring Chains Metric Load Sheet(Chain Dia. Unit: mm; Load Unit: kN)

Note: the above sheet is only one part. If you want to get more information, please feel free to contact us.
