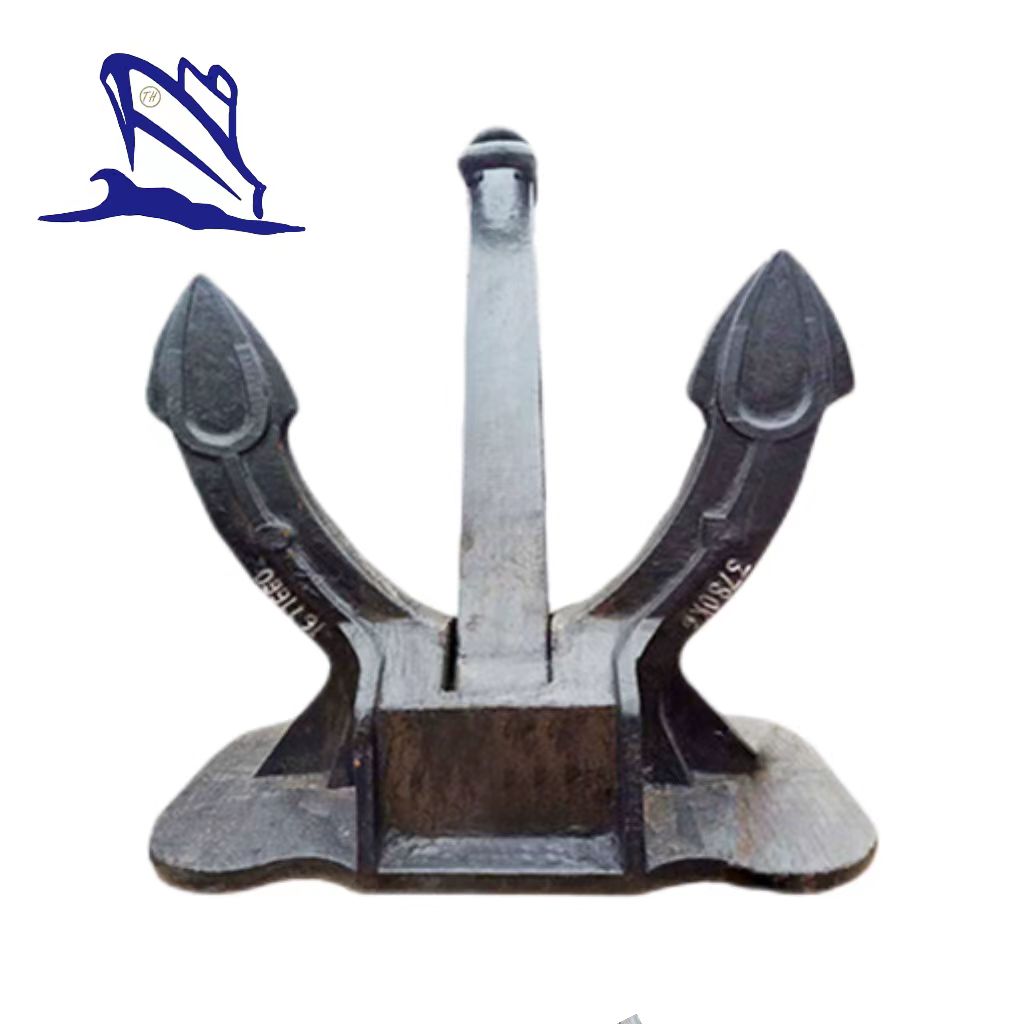

Type SR Spek Anchor
Introduction:
Type SR Spek anchor is one type of stockless anchors. Spek anchor is modified from the Hall anchor. The structure of Spek anchor is characterized that there is anchor crown plate and reinforcing ribs at the anchor crown. Therefore, the anchor claw is easily to turn to the ground and has better stability. Moreover, when collecting the anchor, its flukes keep naturally upward and overturn immediately when touching the hull to avoid damaging the hull plate.
Main Model of Type SR Spek Anchor:

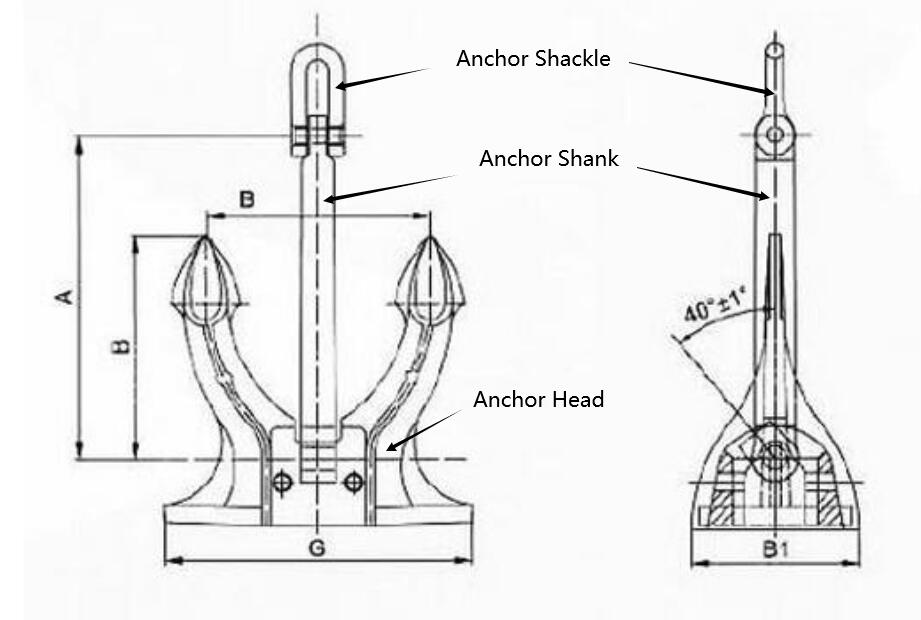

Nominal Weight (kg) | Size(mm) | |||
A | B | B1 | G | |
210 | 810 | 500 | 340 | 690 |
240 | 810 | 500 | 340 | 690 |
300 | 980 | 550 | 390 | 760 |
360 | 970 | 600 | 412 | 828 |
420 | 970 | 600 | 412 | 828 |
450 | 970 | 600 | 412 | 828 |
480 | 970 | 650 | 442 | 900 |
570 | 1050 | 650 | 442 | 900 |
610 | 1050 | 700 | 472 | 962 |
660 | 1134 | 700 | 472 | 962 |
750 | 1134 | 750 | 508 | 1032 |
780 | 1215 | 750 | 519 | 1032 |
900 | 1215 | 800 | 547 | 1100 |
980 | 1296 | 800 | 547 | 1100 |
1020 | 1296 | 850 | 573 | 1170 |
1040 | 1377 | 900 | 591 | 1240 |
1100 | 1458 | 900 | 620 | 1240 |
1200 | 1458 | 950 | 640 | 1300 |
1300 | 1539 | 950 | 640 | 1300 |
1400 | 1539 | 950 | 671 | 1300 |
1500 | 1539 | 950 | 671 | 1300 |
1650 | 1620 | 1000 | 669 | 1378 |
1800 | 1700 | 1050 | 704 | 1454 |
1920 | 1700 | 1050 | 717 | 1454 |
2100 | 1700 | 1050 | 136 | 1454 |
2190 | 1700 | 1050 | 736 | 1454 |
2280 | 1782 | 1100 | 764 | 1584 |
2460 | 1863 | 1150 | 794 | 1484 |
2640 | 1863 | 1150 | 804 | 1584 |
2850 | 1944 | 1200 | 812 | 1650 |
3300 | 1944 | 1200 | 834 | 1650 |
3540 | 1944 | 1200 | 834 | 1650 |
3780 | 2187 | 1350 | 880 | 1850 |
4050 | 2187 | 1350 | 914 | 1850 |
4320 | 2268 | 1400 | 917 | 1926 |
4590 | 2268 | 1400 | 931 | 1926 |
4890 | 2268 | 1400 | 954 | 1926 |
5250 | 2349 | 1450 | 964 | 2000 |
5610 | 2349 | 1450 | 981 | 2000 |
5800 | 2430 | 1500 | 1006 | 2060 |
6000 | 2430 | 1500 | 1006 | 2060 |
6450 | 2430 | 1500 | 1023 | 2060 |
6900 | 2510 | 1550 | 1034 | 2138 |
7350 | 2510 | 1550 | 1062 | 2138 |
7800 | 2510 | 1550 | 1091 | 2138 |
8000 | 2510 | 1550 | 1091 | 2138 |
8300 | 2754 | 1700 | 1125 | 2332 |
8700 | 2754 | 1700 | 1166 | 2332 |
9300 | 2754 | 1700 | 1188 | 2332 |
9900 | 2754 | 1700 | 1188 | 2332 |
10500 | 2867 | 1770 | 1197 | 2440 |
11100 | 2867 | 1770 | 1212 | 2440 |
11700 | 2867 | 1770 | 1237 | 2440 |
12300 | 3094 | 1910 | 1260 | 2632 |
12900 | 3094 | 1910 | 1260 | 2632 |
13500 | 3094 | 1910 | 1316 | 2632 |
14700 | 3321 | 2050 | 1369 | 2824 |
16900 | 3434 | 2120 | 1415 | 2922 |
18800 | 3548 | 2190 | 1461 | 3018 |
20000 | 3548 | 2190 | 1493 | 3018 |
