MARINE CABLE

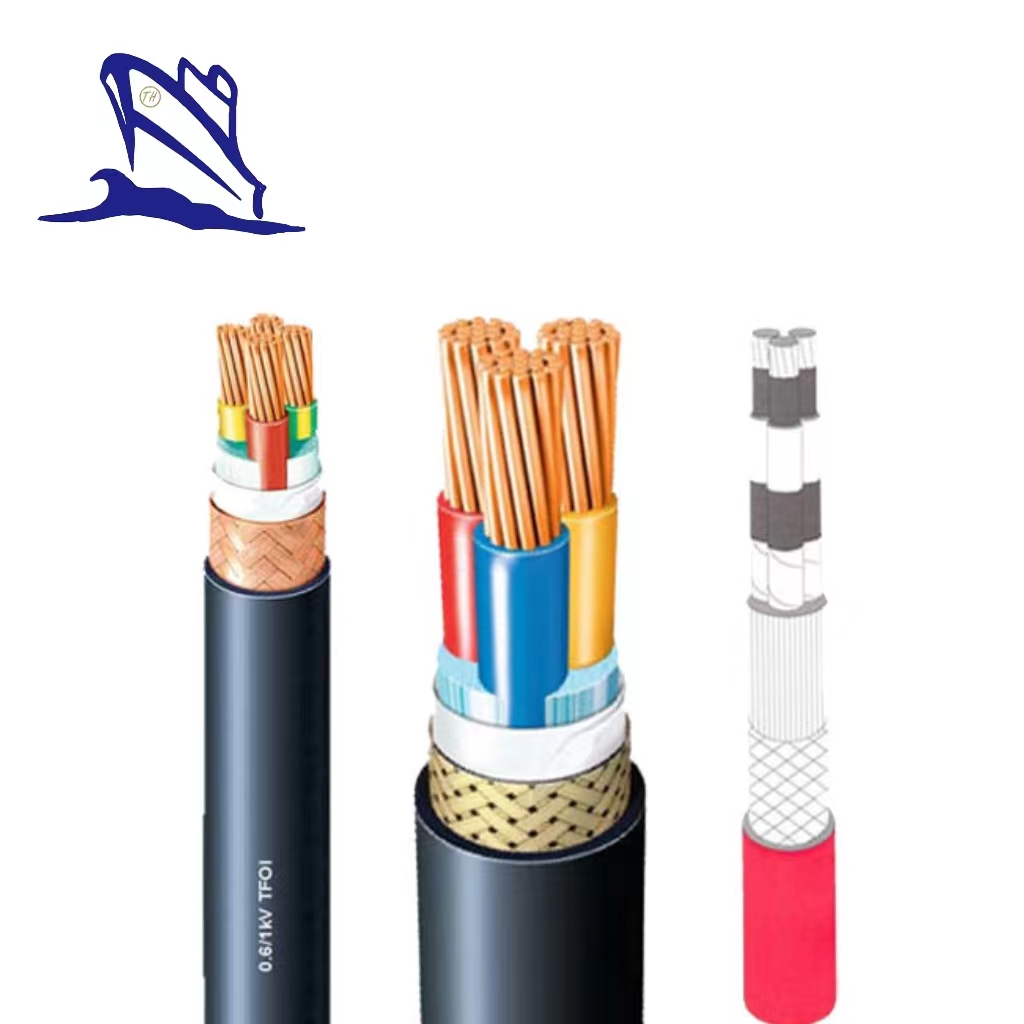

TFOI Halogen free Armored Power cable application

This cable is intended for Marine applications including shipwiring where armor protection is required.

This cable is suitable for fixed installation in ships.Control,general power and lighting.This cable can be installed and operate both indoors and outdoors.

TFOI Halogen free Armored Power cable standards

TFOI armoured power and control marine cable suitable as shipwiring and shipboard cable to IEC60092-353

Conductors: Plain compacted Stranded or Circular Compacted Copper in accordance with IEC60228, Class 2

Standard: IEC60092-353, IEC60092-350

Type Approvals: ABS, Bureau Veritas & Lloyd's Register

- Design guide : IEC 60092-350 & IEC 60092-354
- Insulation material : IEC 60092-351, XLPE
- Sheath material : IEC 60092-359, SHF1
- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A
- Halogen content : IEC 60754-1, 0.5%
- Smoke emission : IEC 61034, 60%
- Cold bend/impact : CSA 22.2 No. 0.3 (-40 °C / -35 °C )

TFOI Halogen free Armored Power cable service condition

Voltage:0.6/1KV

Max. rated conductor temperature : 90 ˚C

TFOI Halogen free Armored Power cable construction
