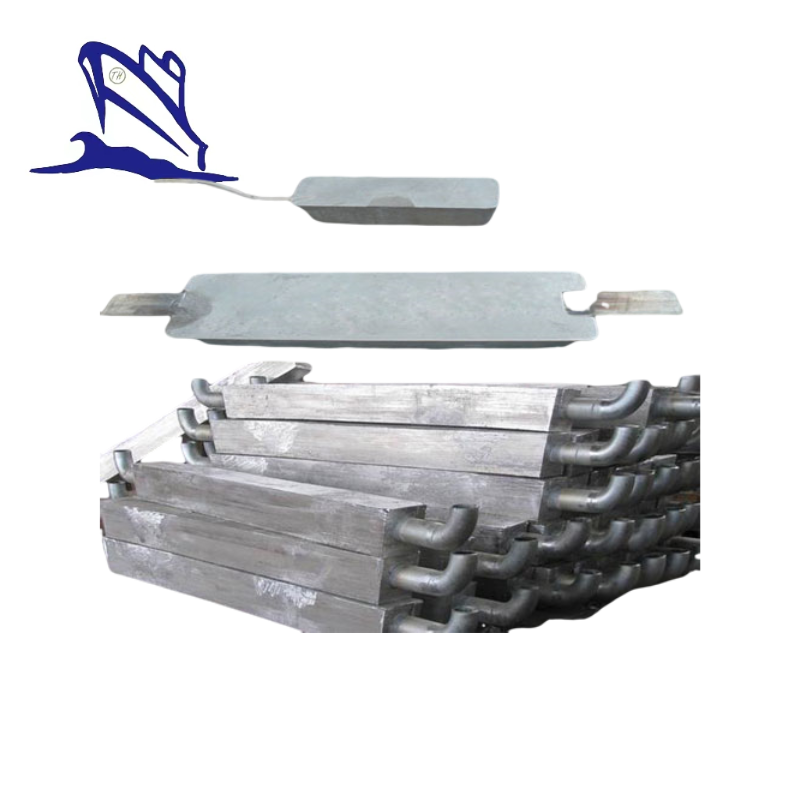

Aluminum Anode
Aluminum Anode
Aluminum zinc indium system (AZI) sacrificial anode is casted by high purity aluminum, zinc, indium and other metal alloy. Aluminum alloy anode is produced in line with the implementation of GB4948-2002 Aluminum Zinc Indium Alloy Sacrificial Anode.
The aluminum anode can prevent the corrosion of steel structure in seawater, widely used for the anti-corrosion of the ship hull, pressurized water tank, seawater pipeline, port and terminal facilities, marine engineering, drilling platform, condensator and pipelines in soil. The performance of aluminum anode is influenced by the chemical composition of the alloy, so we offer different composition of aluminum alloys to meet our customer requirements.
Main Performance:
The driving voltage is low; light weight; high current efficiency.
Product Categories:
1. Ordinary Aluminum Alloy Sacrificial Anode;
2. Highly Activated Aluminum Alloy Sacrificial Anode;
3. High Efficiency Aluminum Alloy Sacrificial Anode;
4. High Temperature Aluminum Alloy Sacrificial Anode;
5. Bracelet Type Aluminum Alloy Sacrificial Anode.
Note: our company can also design and produce all kinds of special specifications and properties of aluminum alloy sacrificial anode according to the different needs of customers.
Chemical Composition
Alloy Type | Zn | In | Cd | Sn | Mg | Si | Ti | Impurity, ≤ | Al | ||
Si | Fe | Cu | |||||||||
Al-Zn-In-Sd | 2.5-4.5 | 0.018-0.050 | 0.005-0.020 | - | - | - | - | 0.10 | 0.15 | 0.01 | margin |
Al-Zn-In-Sn | 2.2-5.2 | 0.020-0.045 | - | 0.018-0.035 | - | - | - | 0.10 | 0.15 | 0.01 | margin |
Al-Zn-In-Si | 5.7-7.0 | 0.025-0.035 | - | - | - | 0.10-0.15 | - | 0.10 | 0.0-15 | 0.01 | margin |
Al-Zn-In-Sn-Mg | 2.5-4.0 | 0.020-0.050 | - | 0.025-0.075 | 0.50-1.00 | - | - | 0.10 | 0.15 | 0.01 | margin |
Al-Zn-In-Mg-Ti | 4.0-7.0 | 0.020-0.050 | - | - | 0.50-1.50 | - | 0.01-0.08 | 0.10 | 0.15 | 0.01 | margin |
Electrochemical Properties
Type/Index/Performance | Open Circuit Potential-V(SCE) | Working Potential-V(SCE) | Actual Capacitance(A.h/kg) | Current Efficiency% | Dissolution Status |
Ordinary Aluminum Alloy Sacrificial Anode | 1.10-1.18 | 1.05-1.12 | ≥2400 | ≥85 | Corrosion products are easy to fall off, the surface dissolution is even |
High Efficiency Aluminum Alloy Sacrificial Anode | 1.10-1.18 | 1.05-1.15-2 | ≥2600 | ≥90 | |
Highly Activated Aluminum Alloy Sacrificial Anode | 1.45-1.50 | 1.40-1.45 | ≥2080 | ≥70 |
Aluminum Anode for Ship Hull
Type | Specification mm | Weight kg |
A×B×C | ||
AH-1 | 800×140×60 | 17.0 |
AH-2 | 800×140×50 | 15.0 |
AH-3 | 800×140×40 | 12.0 |
AH-4 | 600×120×50 | 10.0 |
AH-5 | 400×120×50 | 6.5 |
AH-6 | 500×100×40 | 5.5 |
AH-7 | 400×100×40 | 4.5 |
AH-8 | 300×100×40 | 3.5 |
AH-9 | 250×100×40 | 2.5 |
AH-10 | 180×70×35 | 1.2 |
AH-11 | 300×150×50 Double Iron Feet | 5.8 |
AH-12 | 300×150×40 Double Iron Feet | 4.6 |
AH-13 | 300×150×50 Bolt Type | 5.8 |
AH-14 | 300×150×40 Bolt Type | 4.8 |
Aluminum Anode for Ballast Water Tank
Type | Specification mm | Weight kg |
A×(B1+B2)×C | ||
AT-1 | 500×(115+135)×130 | 23.0 |
AT-2 | 1500×(65+75)×70 | 21.5 |
AT-3 | 500×(110+130)×120 | 20.0 |
AT-4 | 1000×(58.5+78.5)×68 | 13.2 |
AT-5 | 800×(56+74)×65 | 10.0 |
AT-9 | 1150×(48+54)×51 | 9.0 |
AT-7 | 250×(80+100)×85 | 5.0 |
AT-8 | 200×(70+90)×70 | 3.0 |
Aluminum Anode for Harbor and Marine Engineering Facilities
Type | Specification mm | Weight kg |
A×(B1+B2)×C | ||
AI-1 | 2300×(220+240)×230 | 310.0 |
AI-2 | 1600×(200+210)×220 | 190.0 |
AI-3 | 1500×(170+200)×180 | 130.0 |
AI-4 | 900×(150+170)×160 | 58.0 |
AI-5 | 1500×(148+178)×170 | 120.0 |
AI-6 | 850×(180+220)×180 | 85.0 |
AI-7 | 800×(200+280)×150 | 60.0 |
AI-8 | 700×(160+220)×180 | 72.5 |
AI-9 | 1250×(115+135)×130 | 56.0 |
AI-10 | 1000×(115+135)×130 | 46.0 |
AI-11 | 750×(115+135)×130 | 35.0 |
AI-12 | 500×(115+135)×130 | 23.0 |
Aluminum Anode for Storage Tank
Type | Specification/mm | Weight (kg) |
A×(B1+B2)×C | ||
AC-1 | 750×(115+135)×130 | 35.0 |
AC-2 | 500×(115+135)×130 | 23.0 |
AC-3 | 500×(105+135)×100 | 16.0 |
AC-4 | 300×(105+135)×100 | 10.0 |
Aluminum Anode for Seawater Cooling System
Type | Specification mm | Weight kg |
A×(B1+B2)×C | ||
AE-1 | 1200×(200+280)×150 | 120.0 |
AE-2 | 800×(200+280)×150 | 80.0 |
AE-3 | 1000×(115+135)×130 | 46.0 |
AE-4 | 500×(115+135)×130 | 23.0 |
AE-5 | 1000×(80+100)×80 | 20.0 |
AE-6 | 500×(105+135)×100 | 16.0 |
AE-7 | 500×(80+100)×80 | 10.0 |
AE-8 | 400×(110+120)×50 | 7.0 |
AE-9 | 300×(140+160)×40 | 5.0 |
AE-10 | 200×(90+110)×40 | 3.0 |
AE-11 | 300×50 Disc Shape | 11.5 |
AE-12 | 360×40 Disc Shape | 9.0 |
AE-13 | 300×40 Disc Shape | 7.5 |
AE-14 | 200×50 Disc Shape | 4.0 |
AE-15 | 180×50 Disc Shape | 3.5 |
AE-16 | 120×100 Disc Shape | 2.5 |
Aluminum Anode for Buried Pipeline
Type | Specification mm | Iron Feet Size mm | Weight kg | ||
A×2B×C×D | E | F | H | ||
AP-5 | 420×622×51×20 | 480 | 4 | 6 | AP-5 |
AP-6 | 254×559×76×25 | 284 | 4 | 6 | AP-6 |
AP-7 | 400×503×51×25 | 430 | 4 | 6 | AP-7 |
AP-8 | 562×371×51×25 | 592 | 4 | 6 | AP-8 |
Bracelet Type Aluminum Anode
Specification: Inside Diameter*Width*Thickness* Interval mm | Weight kg/pair | Iron Core Specification mm |
Φ1020×200×35×51 | 68 | 5×50 |
Φ819×60×30×51 | 13 | 5×25 |
Φ624×80×30×51 | 17 | 5×50 |
Φ513×100×30×51 | 17 | 5×50 |
Φ487×200×45×51 | 41 | 5×50 |
Φ470×480×25×51 | 50 | 5×50 |
Φ436×480×38×51 | 70 | 5×50 |
Φ420×413×45×51 | 69 | 5×50 |
Φ385×150×59×51 | 32 | 5×50 |
Φ335×505×38×51 | 56 | 5×50 |
Φ280×250×45×51 | 29 | 5×50 |
Φ252×250×45×51 | 26 | 5×50 |
