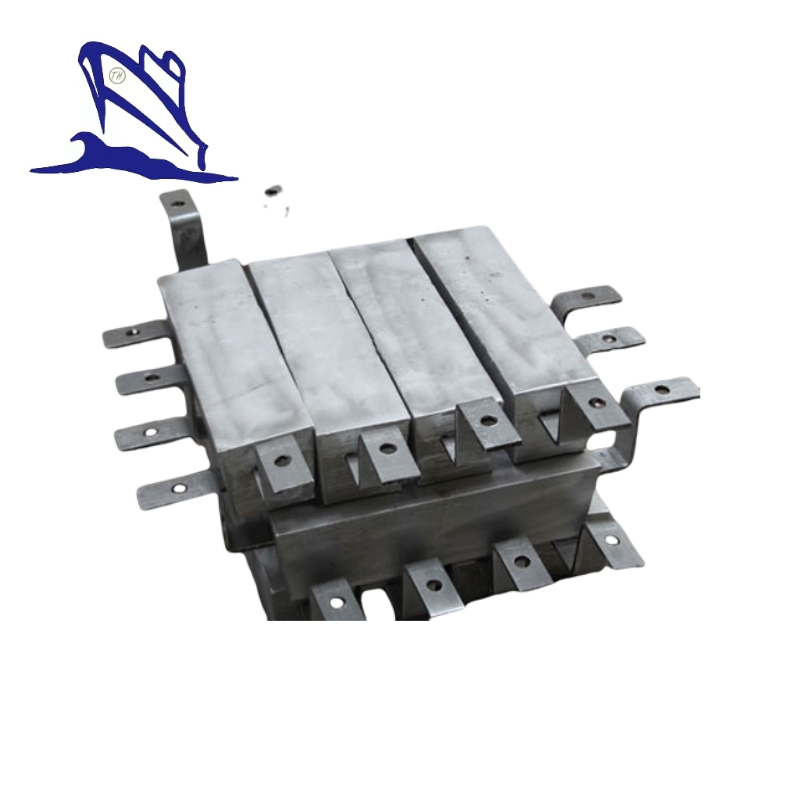

Aluminum Anode for Ballast Water Tank
Aluminum Anode for Ballast Water Tank
Aluminum alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of ships, mechanical equipment, offshore engineering and port facilities in seawater as well as the protection of pipes, cables and other facilities in mud.
Aluminum zinc indium system (AZI) sacrificial anode is casted by high purity aluminum, zinc, indium and other metal alloy. Aluminum alloy anode is produced in line with the implementation of GB4948-2002 Aluminum Zinc Indium Alloy Sacrificial Anode
The performance of aluminum anode is influenced by the chemical composition of the alloy, so we offer different composition of aluminum alloys to meet our customer requirements.
Chemical Composition
Alloy Type | Zn | In | Cd | Sn | Mg | Si | Ti | Impurity, ≤ | Al | ||
Si | Fe | Cu | |||||||||
Al-Zn-In-Sd | 2.5-4.5 | 0.018-0.050 | 0.005-0.020 | - | - | - | - | 0.10 | 0.15 | 0.01 | margin |
Al-Zn-In-Sn | 2.2-5.2 | 0.020-0.045 | - | 0.018-0.035 | - | - | - | 0.10 | 0.15 | 0.01 | margin |
Al-Zn-In-Si | 5.7-7.0 | 0.025-0.035 | - | - | - | 0.10-0.15 | - | 0.10 | 0.0-15 | 0.01 | margin |
Al-Zn-In-Sn-Mg | 2.5-4.0 | 0.020-0.050 | - | 0.025-0.075 | 0.50-1.00 | - | - | 0.10 | 0.15 | 0.01 | margin |
Al-Zn-In-Mg-Ti | 4.0-7.0 | 0.020-0.050 | - | - | 0.50-1.50 | - | 0.01-0.08 | 0.10 | 0.15 | 0.01 | margin |
Electrochemical Properties
Type/Index/Performance | Open Circuit Potential-V(SCE) | Working Potential-V(SCE) | Actual Capacitance(A.h/kg) | Current Efficiency% | Dissolution Status |
Ordinary Aluminum Alloy Sacrificial Anode | 1.10-1.18 | 1.05-1.12 | ≥2400 | ≥85 | Corrosion products are easy to fall off, the surface dissolution is even |
High Efficiency Aluminum Alloy Sacrificial Anode | 1.10-1.18 | 1.05-1.15-2 | ≥2600 | ≥90 | |
Highly Activated Aluminum Alloy Sacrificial Anode | 1.45-1.50 | 1.40-1.45 | ≥2080 | ≥70 |
Specifications of Aluminum Anode for Ballast Water Tank
Type | Specification mm | Weight kg |
A×(B1+B2)×C | ||
AT-1 | 500×(115+135)×130 | 23.0 |
AT-2 | 1500×(65+75)×70 | 21.5 |
AT-3 | 'font-family:Arial;font-size:12px;'>110+130)×120 | 20.0 |
AT-4 | 1000×(58.5+78.5)×68 | 13.213.2 |
AT-5 | 800×(56+74)×65 | 10.0 |
AT-9 | 1150×(48+54)×51 | 9.0 |
AT-7 | 250×(80+100)×85 | 5.0 |
AT-8 | 200×(70+90)×70 | 3.0 |
