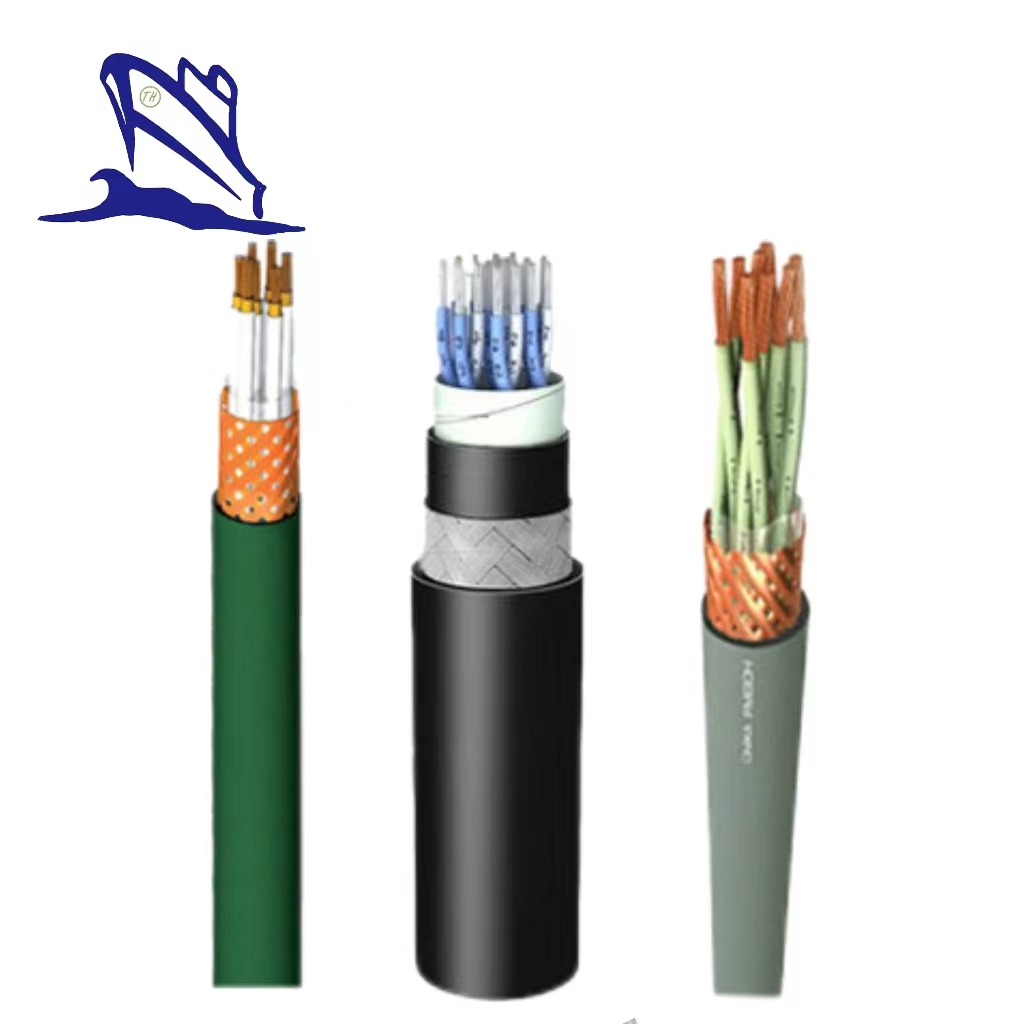

DIN 89159 Screened Marine Communication Cable 150/250V

DIN 89159 Screened Marine Communication Cable 150/250V Application

1.For fixed installations in communication,radio,control,data processing facilities on ship and offshore.
2.The ship cable meet the flame test requirements for bunched.(IEC 60332-3,IEEE 45-18.13)
3.Halogen Free cable materials ensure non corrosive and low toxic gases emitted in case of fire.Especially suitable for installation on passenger ships.

Standard : DIN89159

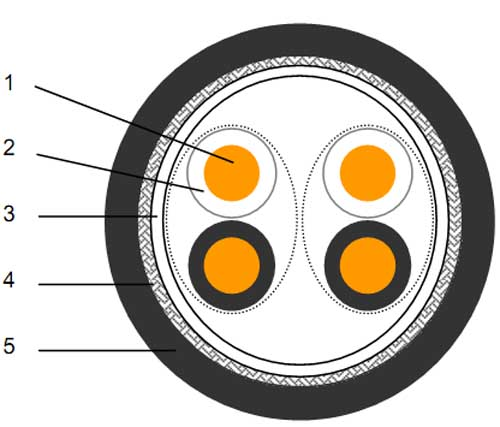

DIN 89159 Screened Marine Communication Cable 150/250V Cable Construction

1.Conductor:Annealed Standard Copper,class2.
2.Insulation:HEPR(Cross-linked Ethylene Propylene Rubber)
3.Laying Up:Pair stranding(2 pair cable=quad stranding)
4.Armour:Separator tape,bare copper braid
5.Outer sheath : Cross-linked Polychloroprene Rubber

Electrical Characteristics

1.Rated Voltage Uo/U(Um):150/250V
2.Test Voltage:1500V

Usage Characteristics

1.Max.Conductor temperature in service:85 °C
2.Short-circuit max.conductor temperature:250 °C
3.Minimum installation temperature:–10 °C
4.Minimum operating temperature:–35 °C
5.Flame retardant:IEC 60332-3 Cat. A
6.Smoke Density:IEC 61034
7.Gases corrosivity:IEC 60754-2
8.Gases toxicity:No toxicity to IEC 60754-1
9.Electro magnetic interference resistance:YES
10.Minimum internal bending radius:6×cable Diameter

Marine Halogen Free Communication cable with screen 150/250V
