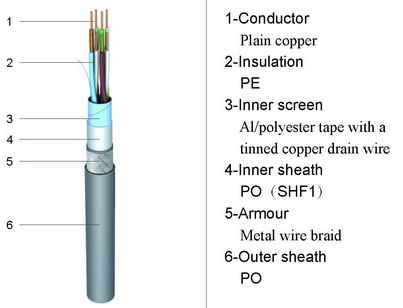

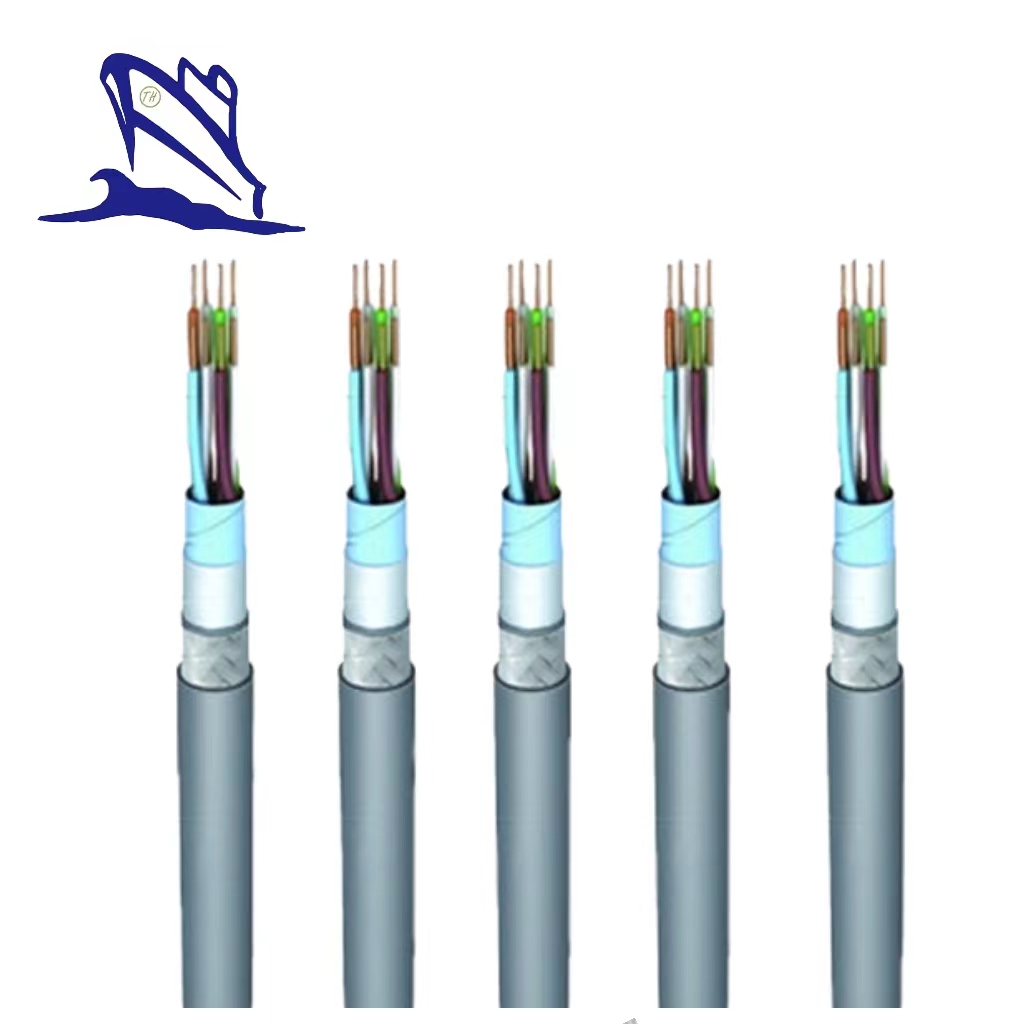

Shipboard LAN Cable
Application:
The cable is suitable for high rate data transmission at a maximum 155Mhz(Cat5E) or 350Mhz(Cat6),used on ships,petrol platform and offshore buildings for data network,LAN.
Standards Applied
IEC 60332-1-2
IEC 60754-1-2
IEC 61034
IEC 61156
TIA/EIA-568-B
Service Condition.
1.Rated Voltage 300V
2.Long time allowable working temperature 60℃
Model
| Type | Size | Diameter | Reference Weight(kg/km) | |
| Min. | Max. | |||
| Cat5E | 4X2X24AWG | 9.0 | 10.0 | 110 |
| Cat6 | 4X2X23AWG | 10.0 | 11.0 | 130 |
Electrical Performance:
| Electrical Data | Unit | Cat5E | Cat6 |
| Characteristic Impedence | Ω | 100±15 | 100±15 |
| Mutual Capacitance at 1Khz | nF/100m | ≤5.6 | ≤5.6 |
| D.C resistance at 20℃ | Ω/100m | ≤9.38 | ≤6.658 |
| Skew | ns/100m | ≤538 | ≤536 |
| Imblance of D.C resistance | % | ≤3 | ≤3 |
| Imblance of capacitance to earth at 1Khz | pF/100m | ≤330 | ≤330 |
