MARINE CABLE

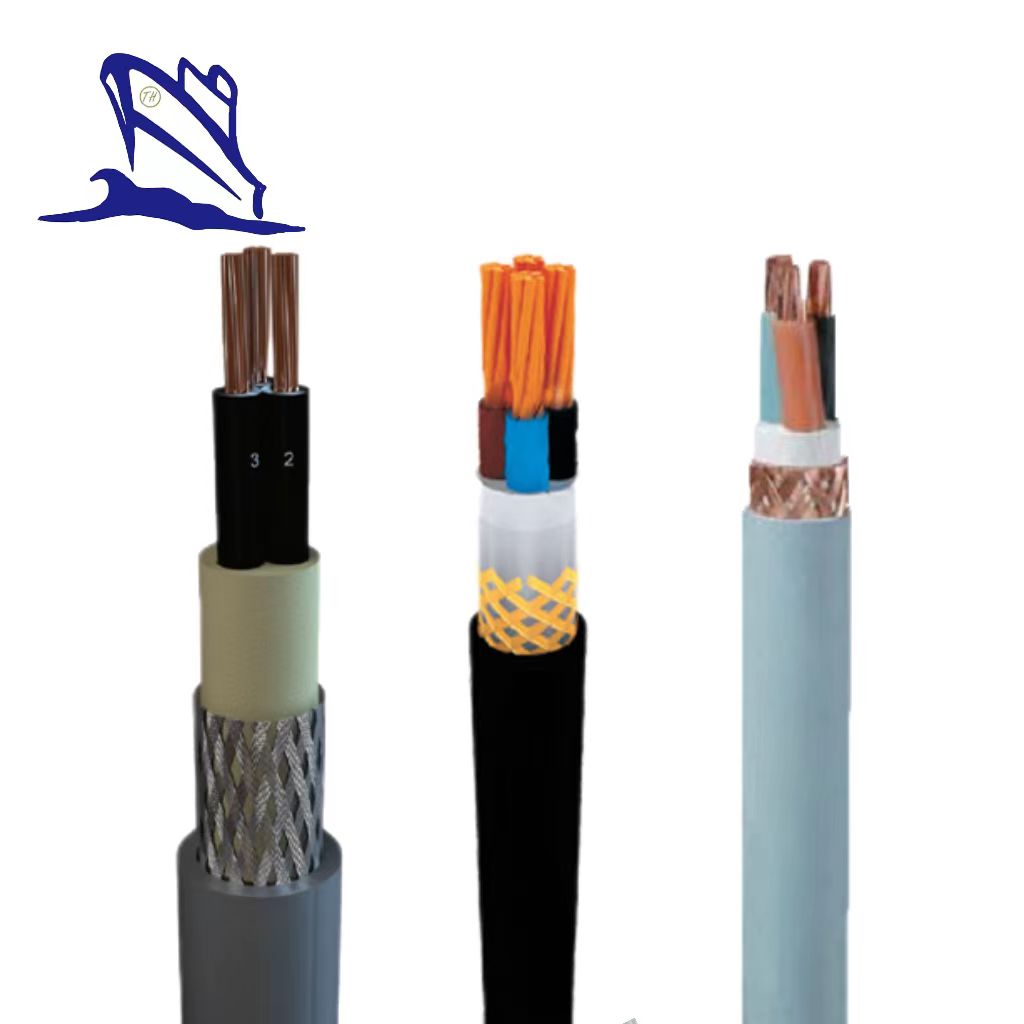

Fire-resistant Armored Marine Control Cables 250V

Fire-resistant Control Cables 250V

Application:

The cable is intended for power, lighting and control system of shipboard and off-shore building.

SPECIFICATION & STANDARDS

IEC 60288 IEC60092-376 IEC60092-351 IEC60092-359

IEC60332-1 IEC60332-3Cat.A

IEC61034 IEC 60754

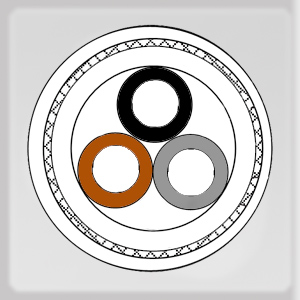

1. Conductor: tinned copper

2. Insulation: EPR/XLPE

3. Core screen: Tinned copper wire braid

4. Tape

5. Inner sheath: PCP/CSP/PVC/PO (SHF1, SHF2)

6. Armored: tinned copper wire braid

(Galvanized steel wire braid)

7. Outer sheath: PVC/PO (SHF1, SHF2)

Flammability Features:

DA: Single cable flame retardant

SA: Bunched cable flame retardant

SC: Bunched cable flame retardant,halogen-free, low-smoke, low-toxicity.

Specifications:

Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.

Nominal Cross-section Areas: 0.75 mm²,1 mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm²,

35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm².

Certificates:

CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃
