MGCG Cargo Ship Marine Power Cable 0.6/1KV
MGCG Marine Power Cable 0.6/1KV Applications
Marine shipboard power cables are used for power systems of cargo ships, Passenger vessels and Special-purpose vessels.
For fixed installations on ships and offshore-units in all locations and open deck.
The good screening qualities of the copper braid also reduce radio interferences and electrical influences to electronic installation.
The cables meet the flame test requirement for bunched cables acc. to IEC 60332-3-22 and IEEE45-18.13, and perform to the SOLAS requirements.
All cable materials are free of halogens. This design ensures that non corrosive and low toxic gases are emitted in case of fire. Therefore, these cables are especially suitable for the installation on passenger ships.

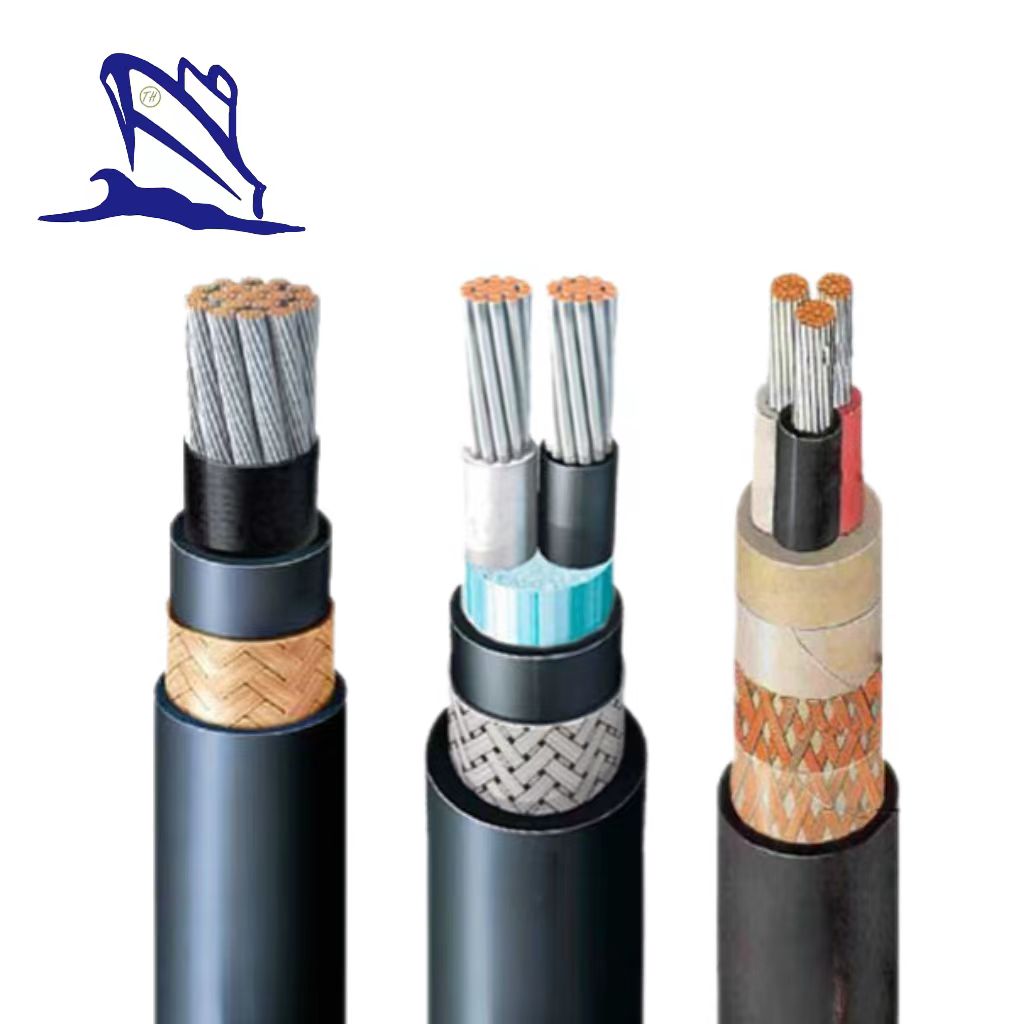

MGCG Marine Power Cable 0.6/1KV Cable Construction
1.Conductor:Annealed Stranded Bare Copper,Class 2
2.Insulation:HEPR (Crosslinked Hard grade Ethylene Propylene)
3.Filler or Tape
4.Armour:Separator tape,Bare copper braid,Separator tape
5.Sheath:Cross linked polychloroprene rubber
MGCG Marine Power Cable 0.6/1KV Standards
International:IEC 60092-351;IEC 60092-353; IEC 60092-359;IEC 60332-3-22
National:DIN 89158/98
MGCG Marine Power Cable 0.6/1KV Electrical Characteristics
1.Rated Voltage Uo/U(Um):600/1000V
2.Test Voltage:3500V
MGCG Marine Power Cable 0.6/1KV Usage Characteristics
| Minimum installation temperature | -10 °C |
| Minimum operating temperature | -35 °C |
| Short-circuit max. conductor temperature | 250 °C |
| Max. conductor temperature in service | 85 °C |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
| Test voltage | 3500 V |
| Flame retardant | IEC 60332-3 Cat. A |
| Smoke density | IEC 61034 |
| Electro magnetic interference resistance | Yes |
| Gases corrosivity | IEC 60754-2 |
| Gases toxicity | No toxicity to IEC 60754-1 |
| Standard | DIN VDE and IEC |
Minimum Internal Bending Radius
1.For overall diameter of cables≤25mm 4×cable diameter
2.For overall diameter of cables>25mm 6×cable diameter
