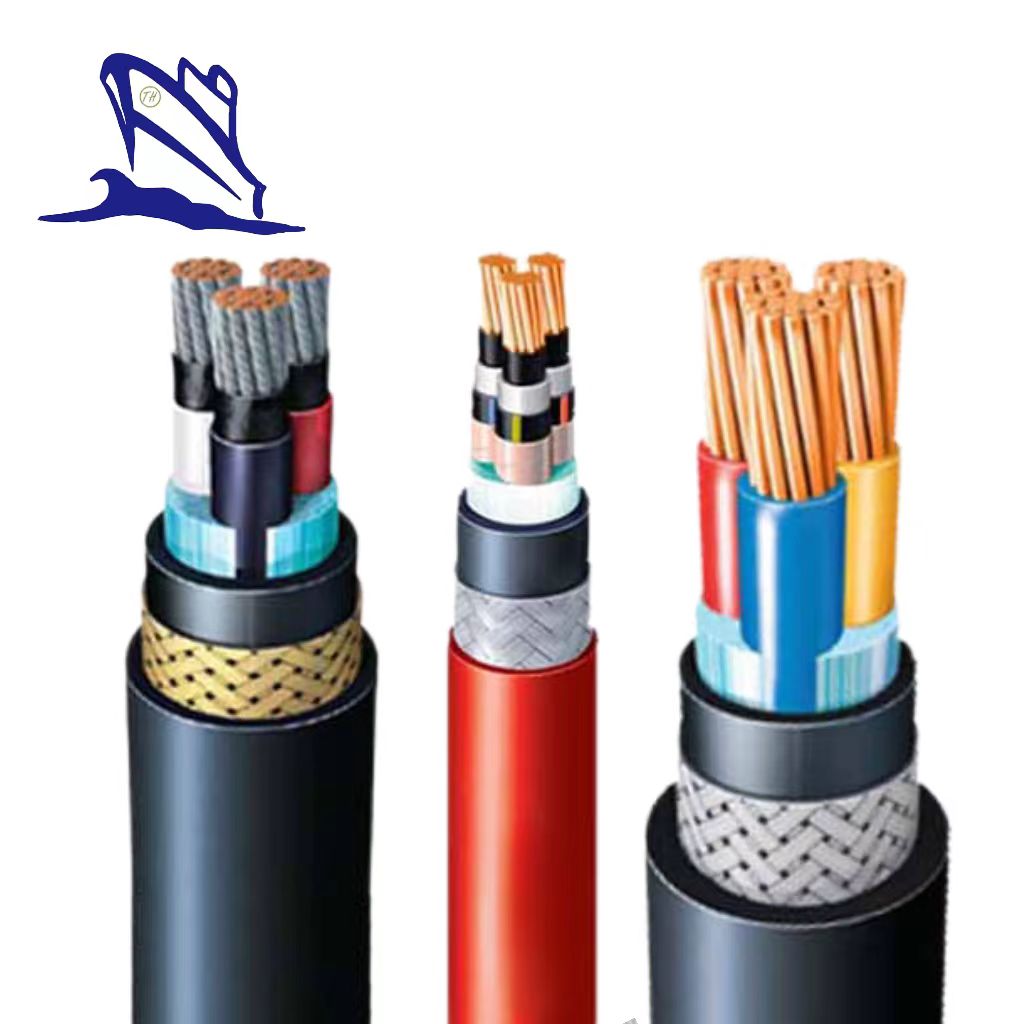

TIOI High Voltage Flame retardant Shipboard Power Cable
TIOI High Voltage Flame retardant Shipboard Power Cable Application
This cable is halogen free cable,suitable for power, control and lighting system for ships or offshore-platforms. Due to its flexibility also suitable when the installation spacesuit and/or for places which are difficult to access Suitable for areas where protection against electromagnet interference (EMI) signals is important.
TIOI High Voltage Flame retardant Shipboard Power Cable Standards
- Design guide : IEC 60092-350 & IEC 60092-354
- Insulation material : IEC 60092-351, XLPE
- Sheath material : IEC 60092-359, SHF1
- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A
- Halogen content : IEC 60754-1, 0.5%
- Smoke emission : IEC 61034, 60%
- Cold bend/impact : CSA 22.2 No. 0.3 (-40 °C / -35 °C )
TIOI High Voltage Flame retardant Shipboard Power Cable Construction
| Classification | Code letter | Detail |
| Conductor | Plain,Annealed,stranded copper wire | |
| Insulation | T | XLPE as per 60092-351 |
| Inner Covering | I | Halogen free thermoplastic compound(IEC 60092-359 SHF1) |
| Armor | O | Copper wire braid, Coverage density : Min. 90% |
| Sheath | I | Halogen free thermoplastic compound(IEC 60092-359 SHF1) Sheath Color:Black |
TIOI High Voltage Flame retardant Shipboard power cable Additional information:
| Minimum installation temperature | -20 °C |
| Maximum conductor temperature | +90 °C |
| Operating temperature | min. -40 °C, max. +80 °C |
| Outer sheath colour | black |
| Standard | IEC 60092-353 |
| Approval | Approval by most important classification societies American Bureau of Shipping, Bureau Veritas, Det Norske Veritas, Lloyds Register and Germanischer Lloyd |
| Packaging | drums |
