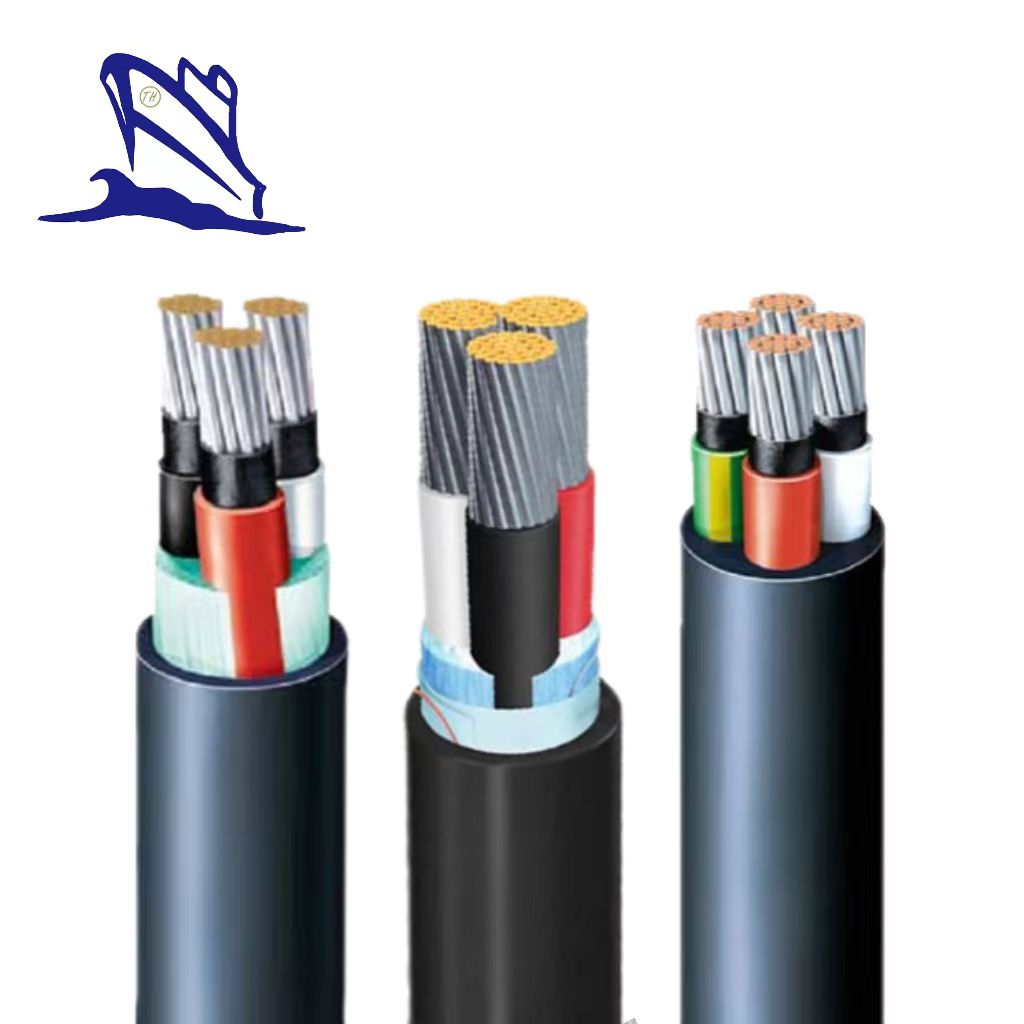

JIS C3410 Portable Flexible Cable
JIS C3410 Portable Flexible Cable
JISC 3410 Portable Flexible Cable DESIGNATION
0.6/1kV DPNP, 0.6/1kV TPNP, 0.6/1kV FPNP
JISC 3410 Portable Flexible Cable APPLICATION STANDARD
– Design guide : JIS C 3410(1999/2010)
– Flame retardant : IEC 60332-1
– Cold bend/impact : CSA 22.2 No. 03 (-35 ) (Cold Type)
– Max. conductor temperature : 85℃
| Conductor | D(T,F) | Tinned annealed stranded copper, class 2 according to IEC 60228 |
| Insulation | P | 85°C EPR as per IEC 60092-351 |
| Cabling | Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used | |
| Sheath | NP | PCP as per JIS C 3410 |

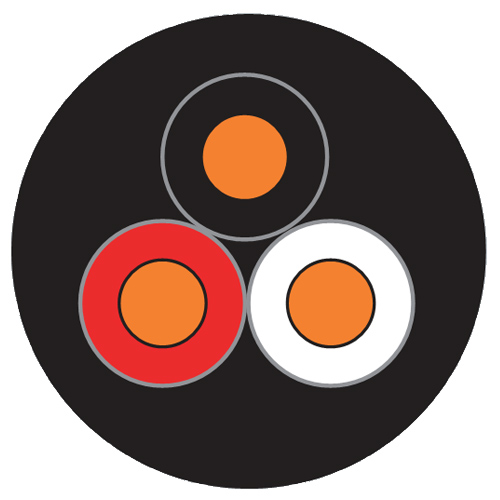

| Core identification | 2C Black, White 3C Black, White, Red 4C Black, White, Red, Green | |
| Outer sheath color | Black |
JISC 3410 Portable Flexible Cable specification
| No. of Cores | Conductor | Thick. of insulation | Thick. of Sheath | Nom. overall dia. | Tolerance | Cable Weight | ||
| Size | Construction | O.D | ||||||
| mm2 | No./mm | mm | mm | mm | mm | mm | kg/km | |
| 2 | 0.75 | 24/0.20 | 1.13 | 1 | 1.4 | 9.7 | 0.4 | 130 |
| 2 | 1 | 32/0.20 | 1.27 | 1 | 1.4 | 9.9 | 0.4 | 135 |
| 2 | 1.5 | 30/0.25 | 1.58 | 1 | 1.5 | 10.8 | 0.4 | 165 |
| 2 | 2.5 | 49/0.25 | 2.02 | 1 | 1.6 | 11.8 | 0.5 | 205 |
| 2 | 4 | 55/0.30 | 2.57 | 1 | 1.7 | 13.1 | 0.5 | 265 |
| 2 | 6 | 82/0.30 | 3.14 | 1 | 1.8 | 14.5 | 0.6 | 340 |
| 3 | 0.75 | 24/0.20 | 1.13 | 1 | 1.4 | 10.2 | 0.4 | 145 |
| 3 | 1 | 32/0.20 | 1.27 | 1 | 1.5 | 10.7 | 0.4 | 160 |
| 3 | 1.5 | 30/0.25 | 1.58 | 1 | 1.5 | 11.4 | 0.5 | 190 |
| 3 | 2.5 | 49/0.25 | 2.02 | 1 | 1.6 | 12.5 | 0.5 | 240 |
| 3 | 4 | 55/0.30 | 2.57 | 1 | 1.8 | 14.1 | 0.6 | 325 |
| 3 | 6 | 82/0.30 | 3.14 | 1 | 1.9 | 15.6 | 0.6 | 420 |
| 4 | 0.75 | 24/0.20 | 1.13 | 1 | 1.5 | 11.3 | 0.5 | 175 |
| 4 | 1 | 32/0.20 | 1.27 | 1 | 1.6 | 11.8 | 0.5 | 200 |
| 4 | 1.5 | 30/0.25 | 1.58 | 1 | 1.6 | 12.2 | 0.5 | 225 |
| 4 | 2.5 | 49/0.25 | 2.02 | 1 | 1.8 | 14.1 | 0.6 | 310 |
| 4 | 4 | 55/0.30 | 2.57 | 1 | 1.9 | 15.6 | 0.6 | 405 |
| 4 | 6 | 82/0.30 | 3.14 | 1 | 2 | 17.2 | 0.7 | 525 |
Certificates:
CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃
