FA-SPYCY Shipboard Power and lighting cable 0.6/1KV
FA-SPYCY Shipboard Power and lighting cable 0.6/1KV Applications
For fixed installations on ships and offshore-units in all locations.
Flame-Retardant, Single core, EP rubber insulated, PVC sheathed, Steel wire braided,PVC Cover Shipboard Power cable.

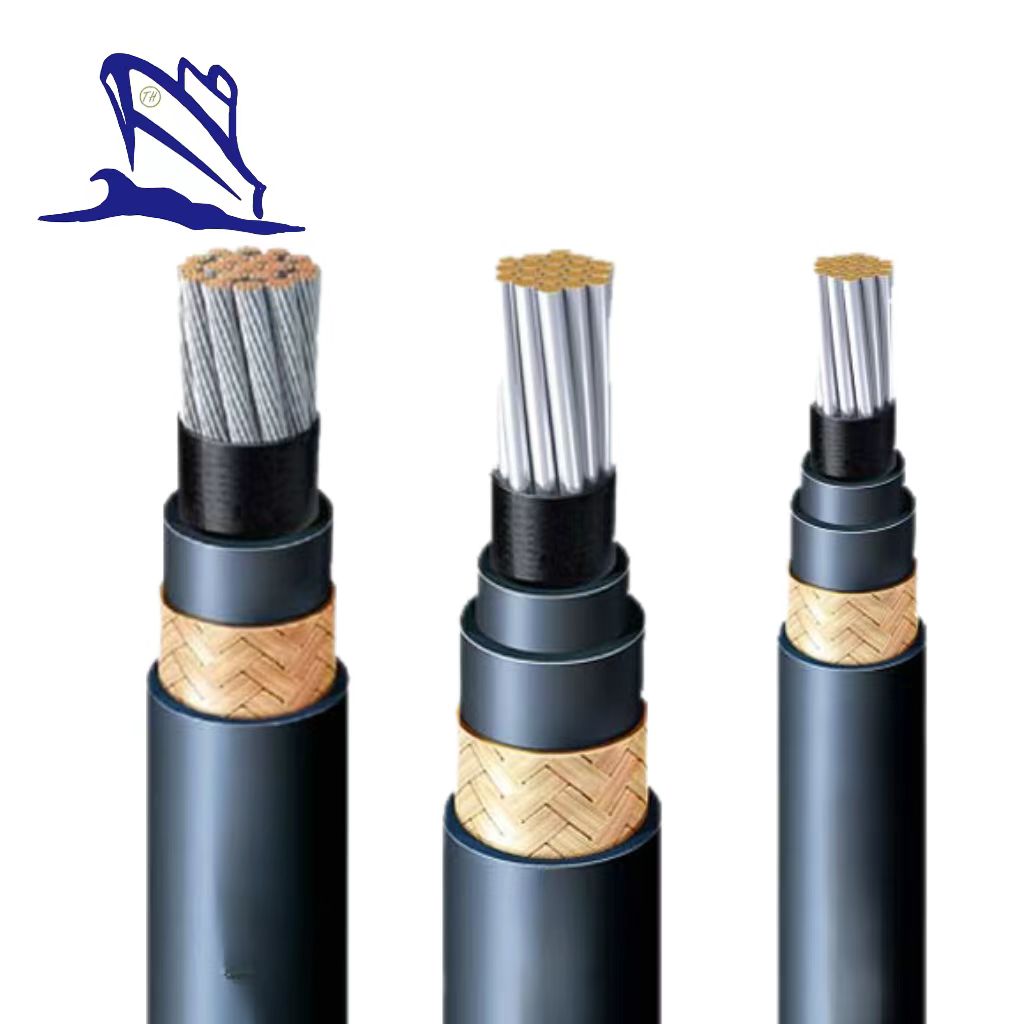

FA-SPYCY Shipboard Power and lighting cable 0.6/1KV Cable Construction
1.Conductor:Tinned Annealed Stranded Copper,Class2 according to IEC 60228
2.Insulation:85°C (EPR),Ethylene Propylene Rubber
3.Filler:Non-Hygroscopic Material
4.Sheath:(PVC),Polyvinyl Chloride
5.Armor:Galvanized Steel Wire Braid
6.Protective cover:(PVC),Polyvinyl Chloride
FA-SPYCY Shipboard Power and lighting cable 0.6/1KV Standard
JIS C 3410-2010
IEC 60092-350
IEC 60332-1
IEC 60332-3 Cat.AF(for FA-type)
(FA-)SPYCY, SPYCBY Specifications
| Conductor | Thick. of insulation | Thick. of bedding | Dia. over bedding | Dia. of armor | (FA-) SPYCY, SPYCBY | |||||
| Size | Construction | O.D | Thick.of Sheath | Nominal overall dia. | Tolerance | Cable weight (Approx.) | ||||
| mm2 | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
1.5 | 7/0.53 | 1.59 | 1.0 | 1.0 | 5.9 | 0.3 | 0.8 | 9.0 | 0.4 | 135 |
2.5 | 7/0.67 | 2.01 | 1.0 | 1.0 | 6.3 | 0.3 | 0.8 | 9.4 | 0.4 | 150 |
4 | 7/0.85 | 2.55 | 1.0 | 1.0 | 6.9 | 0.3 | 0.8 | 10.0 | 0.4 | 175 |
6 | 7/1.04 | 3.12 | 1.0 | 1.0 | 7.4 | 0.3 | 0.8 | 10.5 | 0.4 | 205 |
10 | 7/1.35 | 4.05 | 1.0 | 1.1 | 8.6 | 0.3 | 0.8 | 11.7 | 0.5 | 270 |
16 | 7/1.70 | 5.1 | 1.0 | 1.1 | 9.6 | 0.3 | 0.9 | 12.9 | 0.5 | 350 |
25 | 7/2.14 | 6.42 | 1.2 | 1.2 | 11.5 | 0.3 | 0.9 | 14.8 | 0.6 | 485 |
35 | 7/2.52 | 7.56 | 1.2 | 1.2 | 12.7 | 0.3 | 1.0 | 16.2 | 0.6 | 605 |
50 | 19/1.78 | 8.9 | 1.4 | 1.3 | 14.6 | 0.3 | 1.0 | 18.1 | 0.7 | 775 |
70 | 19/2.14 | 10.7 | 1.6 | 1.4 | 17.2 | 0.3 | 1.1 | 20.9 | 0.8 | 1060 |
95 | 19/2.52 | 12.6 | 1.6 | 1.5 | 19.3 | 0.3 | 1.1 | 23.0 | 0.9 | 1360 |
120 | 37/2.03 | 14.2 | 1.6 | 1.5 | 20.9 | 0.3 | 1.2 | 24.8 | 1.0 | 1650 |
150 | 37/2.25 | 15.8 | 1.8 | 1.6 | 23.1 | 0.3 | 1.2 | 27.0 | 1.1 | 1980 |
185 | 37/2.52 | 17.6 | 2.0 | 1.7 | 25.5 | 0.3 | 1.3 | 29.6 | 1.2 | 2420 |
240 | 61/2.25 | 20.3 | 2.2 | 1.8 | 28.8 | 0.3 | 1.4 | 33.1 | 1.3 | 3110 |
300 | 61/2.52 | 22..7 | 2.4 | 1.9 | 31.8 | 0.4 | 1.4 | 36.6 | 1.5 | 3910 |
