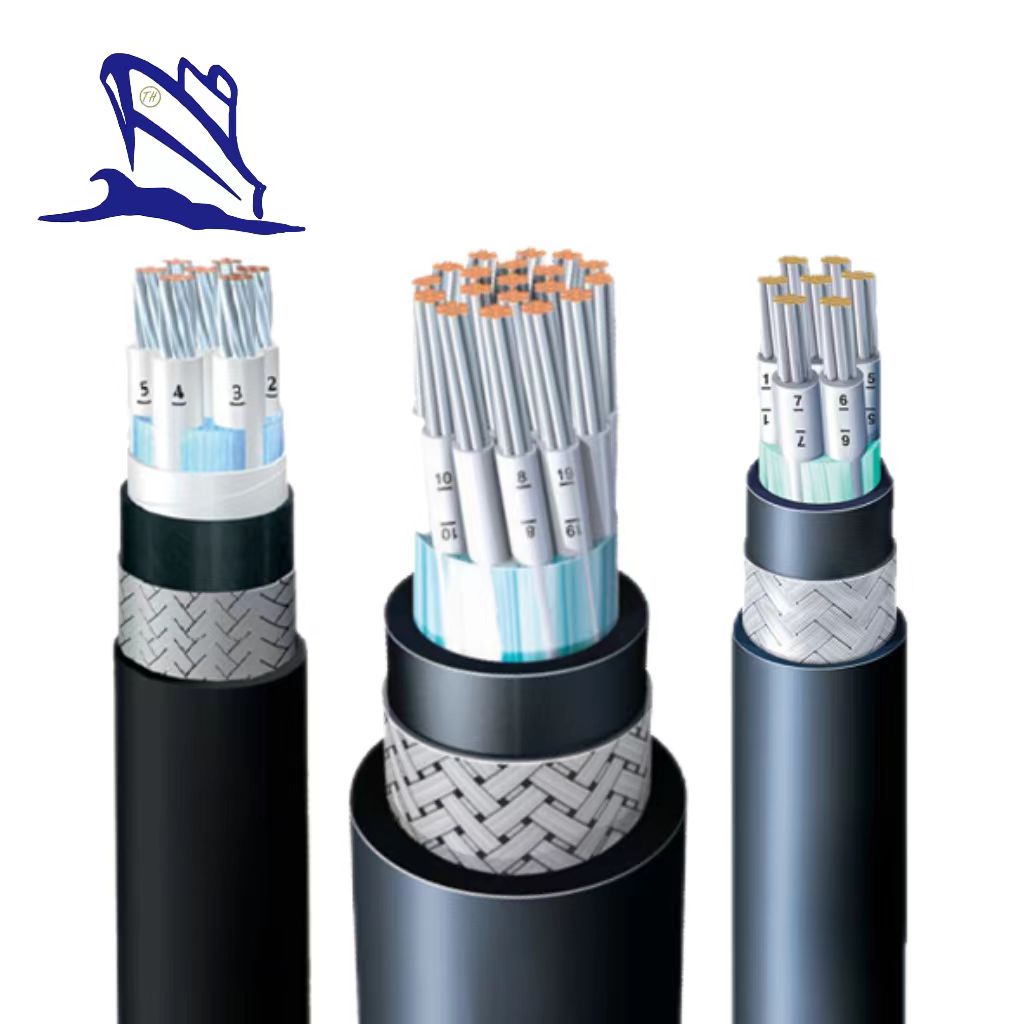

JIS C3410 Armored Shipboard Control Cable
JIS C3410 Armored Shipboard Control Cable
JIS C3410 Armored Shipboard Control Cable Application
The cable is fixed installation, used for Control, signal system in ship.
JIS C3410 Armored Shipboard Control Cable model
250V MPYC, FA-MPYC
250V MPYCY, FA-MPYCY
JIS C3410 Armored Shipboard Control Cable Standards
– Design guide : JIS C 3410(1999/2010)
– Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)
– Cold bend/impact : CSA 22.2 No. 03 (-35 ) (Cold Type)
– Max. conductor temperature :85
| Classification | Code | Construction details |
| Conductor | M | Tinned Copper Wire JIS C3410 |
| Insulation | P | EPR as per JIS C 3410 |
| Sheath | Y | PVC as per JIS C 3410 |
| Armor | C | Galvanized steel wire braided |
| CB | Tinned copper wire braided | |
| Paint | The white paint should be painted uniformly | |
| Covering | Y | PVC as per JIS C 3410 |
| Color: Black |
recommendations
Minimum cable bending radius
The internal radius of cable bends which are not subjected to movements by expansion, is not to be less than :
6 times the external diameter of cable
Cable which are subjected to movements by expansion and the high voltage cable are to be bent to a form of at least 12 times cable diameter.
Installations temperature
Minimum recommended temperature of installations :
-10°C Ship wiring cable with PVC sheath
-20°C Elastomeric on/off shore cables
Installations pulling force
The cable pulling force can be estimated, as a maximum limit :5Kp per mm2 conductor area in the cable.Additional tension will be supplied from the braid and the insulation and sheathing compound.
Specifications:
Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
Nominal Cross-section Areas: 1mm2
Certificates:
CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃
