MARINE CABLE

Marine Power cable:

SPECIFICATION & STANDARDS

IEC 60288 IEC60092-350 IEC60092-353 IEC60092-359

IEC60092 351 IEC60332-1 IEC60332-3Cat.A

IEC61034-2 IEC 60754-2 3A

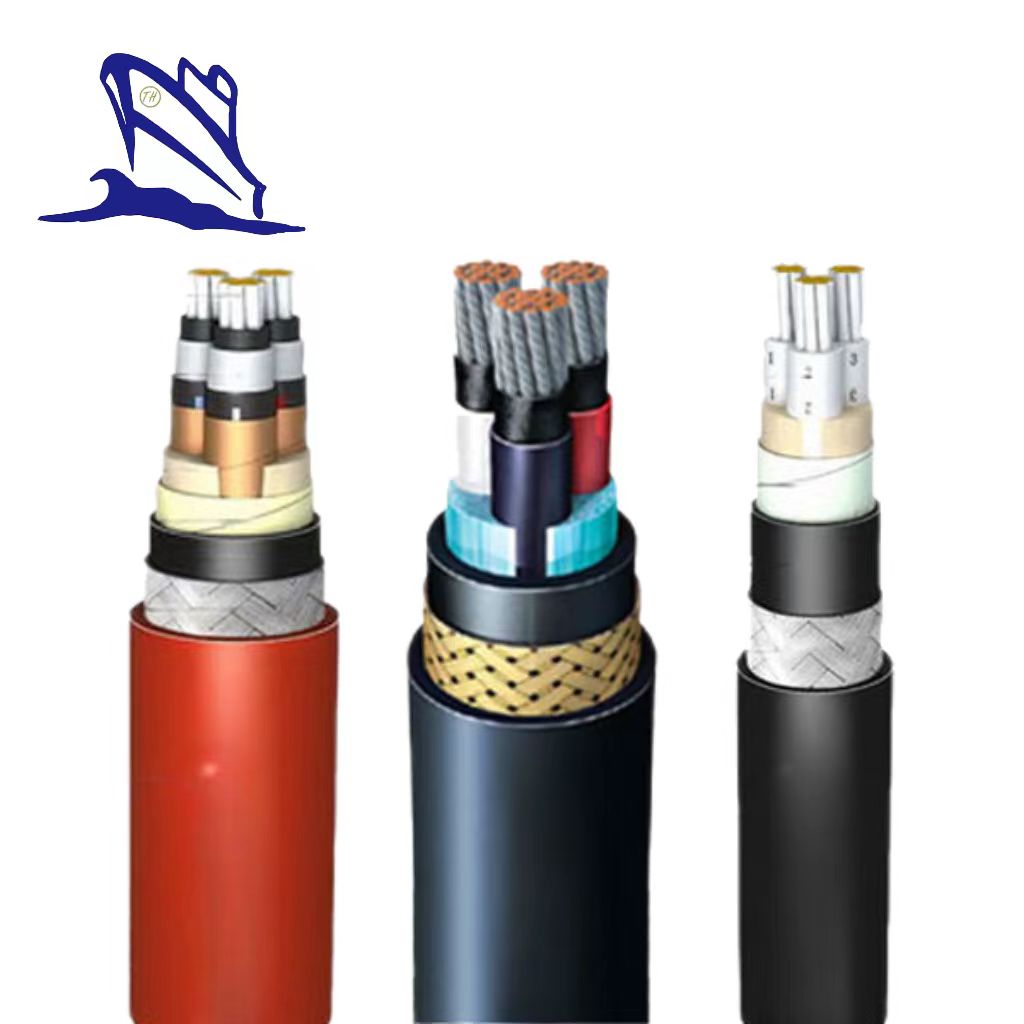

Construction:

Conductor: tinned copper

Insulation: EPR/XLPE

Filler

Tape

Inner sheath: PCP/CSP/PVC/PO (SHF1, SHF2)

Armored: tinned copper wire braid

(Galvanized steel wire braid)

Outer sheath: PVC/PCP/PO (SHF1, SHF2)

Flammability Features:

DA: Single cable flame retardant

SA: Bunched cable flame retardant

SC: Bunched cable flame retardant,halogen-free, low-smoke, low-toxicity.

NC:Fire Resistant,halogen-free, low-smoke, low-toxicity.

Specifications:

Cores: 1, 2, 3, 4, 5

Nominal Cross-section Areas:1 mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm²,

35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm².

Certificates:

CCS,LR,ABS,DNV,BV,GL,NK,RINA,RS,KR; 90℃
