SFOI Fire resistance shipboard power cable 0.6/1KV
SFOI Fire resistance shipboard power cable 0.6/1KV Application
SFOI Fire resistance low voltage power cable is suitable for marine applications where circuit integrity is important in the event of a fire, including shipwiring.Unarmored fire resistant cable for fixed installation in ships where cable protection is needed. Power,control,alarm,emergency and critical systems.This cable can be installed and operated both indoors and outdoors.
SFOI Fire resistance shipboard power cable 0.6/1KV Standards
| Design Guide | IEC 60092-350, 353 |
| Insulation Material | IEC 60092-351 |
| Sheath Material | IEC 60092-359 |
| Flammability | IEC 60332-1 & IEC 60332-3 Category A |
| Fire Resistance | IEC 60331(750℃ or 1000℃) |
| Halogen Content | IEC 60754-1,2, 0.5%(Max.) |
| Smoke Emission | IEC 61034-1,2, 60%(Min.) |

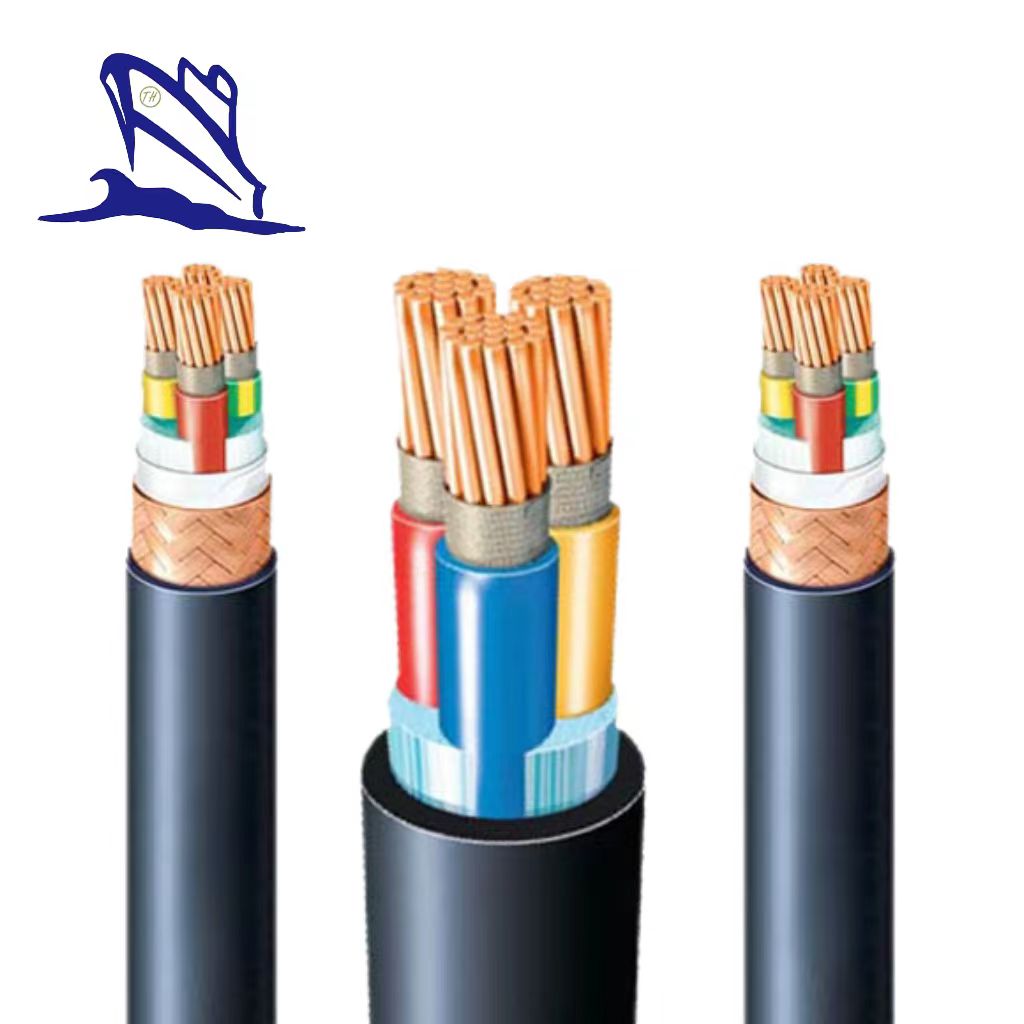

SFOI Fire resistance shipboard power cable 0.6/1KV Construction
| Classification | Code Letter | Construction Detail |
| Conductor | Plain, Annealed, Stranded copper wire | |
| Fire resisting layer | S | Mica/Glass Tape (MGT) |
| Insulation | Cross-linked Polyethylene (XLPE) as per IEC 60092-351 | |
| Inner Covering | F | Halogen Free Tape (Lapped inner covering) |
| Armor | O | Copper Wire Braid (O) |
| Sheath | I | Halogen Free Thermoplastic compound (IEC 60092-359, SHF1)Sheath color Black |
