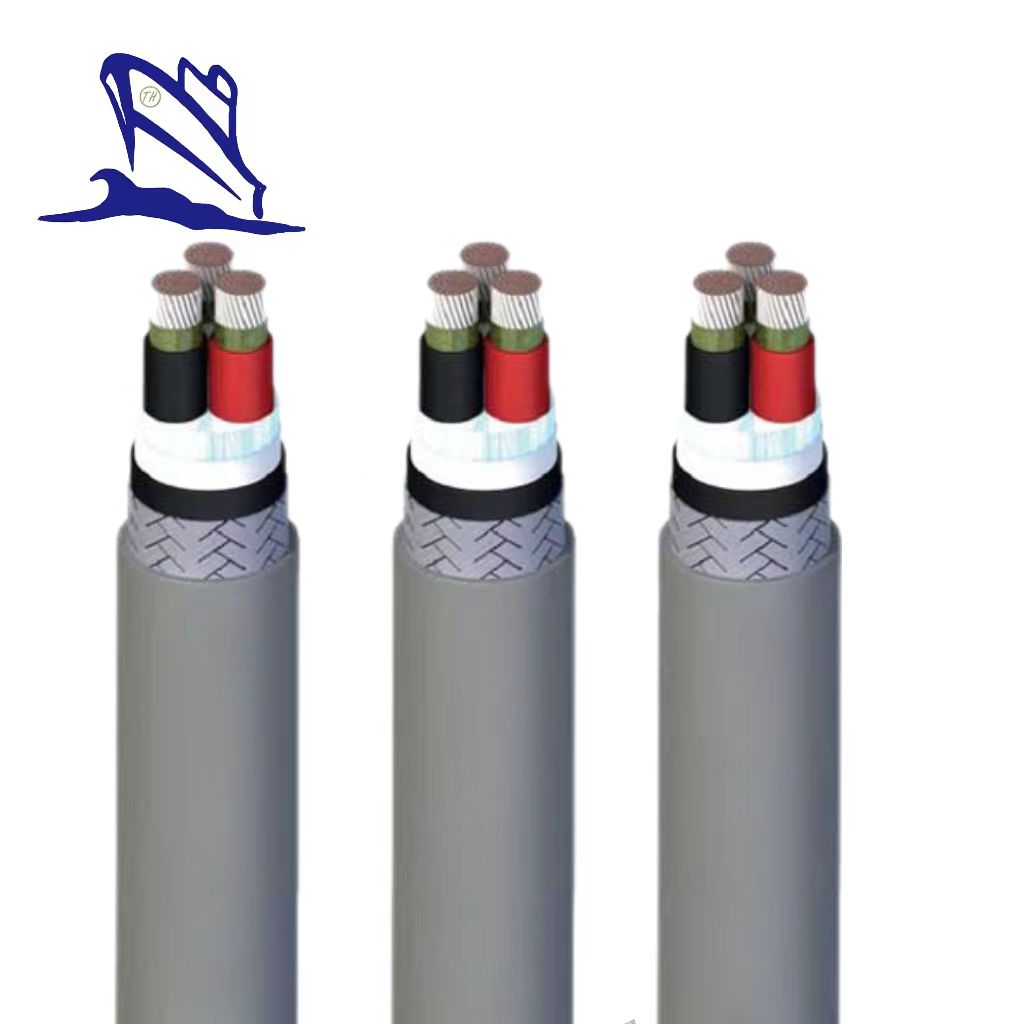

FA-TPYCY Shipboard Power and Lighting Cable 0.6/1KV
FA-TPYCY Shipboard Power and Lighting Cable 0.6/1KV Applications
For fixed installations on ships and offshore-units in all locations.

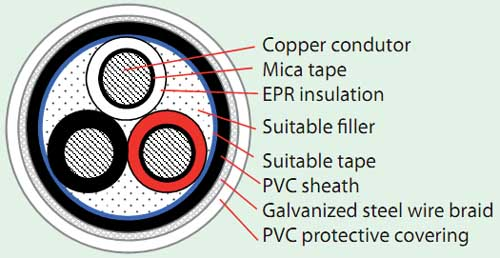

Flame-Retardant,Three core,EP rubber insulated,PVC sheathed,Steel wire braid,PVC cover Shipboard Power cable
1.Conductor:Tinned Annealed Stranded Copper,Class2 IEC60228.
2.Insulation:(EPR),Ethylene Propylene Rubber
3.Filler:Non-Hygroscopic Material
4.Sheath:(PVC),Polyvinyl Chloride
5.Armor:Galvanized Steel Wire Braid
6.Protective cover:(PVC),Polyvinyl Chloride
| Conductor | S(D,T) | Tinned annealed stranded copper, class 2 according to IEC 60228 |
| Conductor screen | Semi-conducting compound | |
| Insulation | P | 85°C EPR as per IEC 60092-351 |
| Cabling | Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used | |
| Overall shield | S | Tinned copper wire braid |
| Bedding | Y | PVC as per JIS C 3401 |
| Armor | C (CB) | Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE) |
| Sheath | Y | PVC as per JIS C 3401 |
| Core identification | 1C Black 2C Black, White 3C Black, White, Red | |
| Outer sheath color | Black |
FA-TPYCY Shipboard Power and Lighting Cable 0.6/1KV Standard
JIS C 3410-1999
IEC 60092-350
IEC 60332-1
IEC 60332-3 Cat.AF(for FA-type)
