FMGCG Marine Communication cable with screen 150/250V

FMGCG Marine Communication cable with screen 150/250V Applications

1.For fixed installations in communication,radio,control,data processing facilities on ship and offshore.
2.The ship cable meet the flame test requirements for bunched.(IEC 60332-3,IEEE 45-18.13)

Standard : DIN 89159

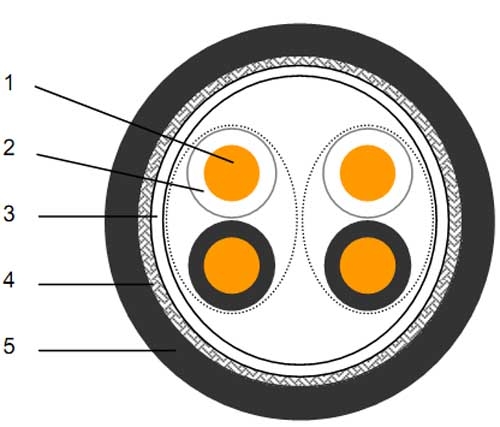

1.Conductor:Annealed Standard Copper,Class 2.
2.Insulation:EPR(Cross-linked Ethylene Propylene Rubber)
3.Laying Up:Pair stranding(2 pair cable=quad stranding)
4.Armour:Separator tape,bare copper braid
5.Outer sheath : Cross-linked Polychloroprene Rubber,Black.

Electrical Characteristics

1.Rated Voltage Uo/U(Um):150/250V
2.Test Voltage:1500V

Usage Characteristics

1.Max.Conductor temperature in service:85 °C
2.Short-circuit max.conductor temperature:250 °C
3.Minimum installation temperature:–10 °C
4.Minimum operating temperature:–35 °C
5.Flame retardant:IEC 60332-3 Cat. A
6.Smoke Density:IEC 61034
7.Gases corrosivity:IEC 60754-2
8.Gases toxicity:No toxicity to IEC 60754-1
9.Electro magnetic interference resistance:YES
10.Minimum internal bending radius:6×cable Diameter
