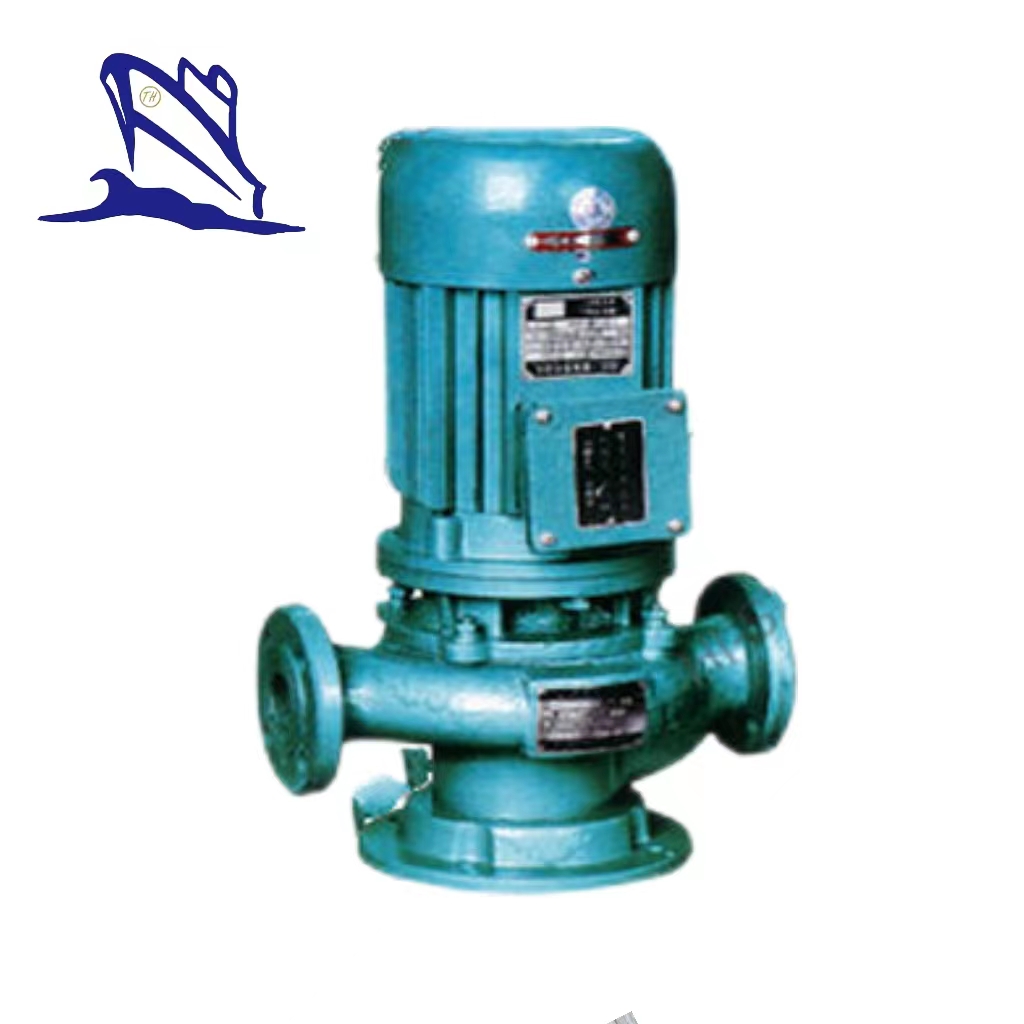

CGW Marine Inline Sewage Pump
Applications:
CGW vertical sewage pump integrates pump and motor .vertical installation,This punp is a single stage single suction centrifugal sewage pump,the center line of inlet and outlet is on the same level, inlet flange is the same as that of the outlet, so the installation and disasembly are very easy, with small land occupation, can be fixed on any position of the pipeline as the valve.
Main Technical Parameter
| Series Name | CGW |
| Product Name | Marine Inline Sewage pump |
| Feature | motor-driven uprightness meatussingle-channel impeller centrifugal drainage pump |
| Model | HS-CGW01 |
| Capacity (m3/h) | 8-37 |
| Head (m) | 7-40 |
| Speed (r/min) | 1390/2825/3450 |
| Power | 0.75-7.5 |
| Efficiency (η%) | 38.1-58 |
| Application | Suitable for transferring sewage, industrial waste water, oily water, fresh water and sea water |
| Medium tempreture | Max.60℃ |
| Certification | CCS, BV etc. |
