FA-DPYCY Shipboard Power Cable 0.6/1KV
FA-DPYCY Shipboard Power Cable 0.6/1KV Application
For fixed installations on ships and offshore-units in all locations.

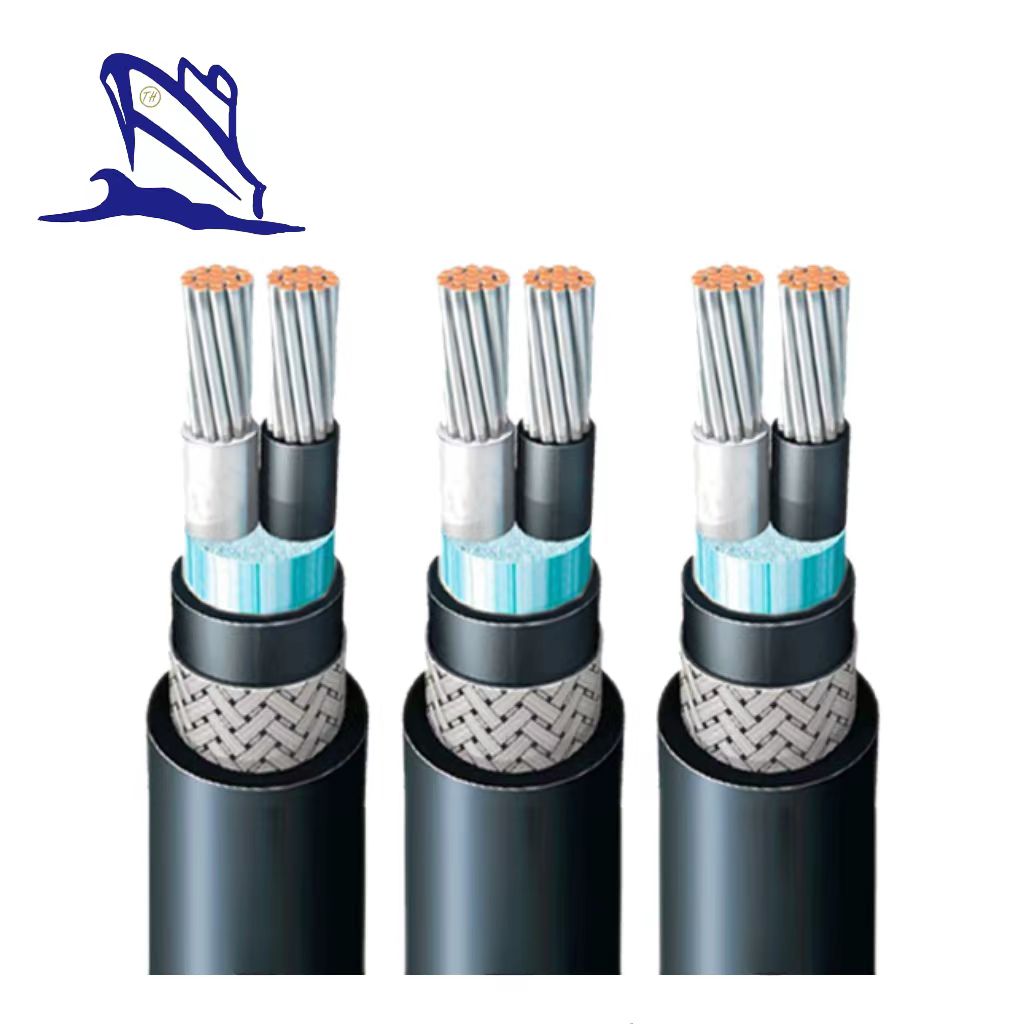

FA-DPYCY Shipboard Power Cable 0.6/1KV
Flame-Retardant,Double core,EP rubber insulated,PVC sheathed,Steel wire braid,PVC outer sheathed Shipboard Power cable.
FA-DPYCY Shipboard Power Cable 0.6/1KV Cable Construction
1.Conductor:Stranded tinned annealed copper wires as per JIS C 3410.
2.Insulation:(EPR),Ethylene Propylene Rubber.
3.Cabling:Flame retardant and non-hygroscopic fillers may be used.Suitable tape may be applied on the cabled core.
4.Sheath:(PVC),Polyvinyl Chloride.
5.Armor:Galvanized steel wire braid.Coverage density is minimum 90%.
6.Sheath:(PVC),Polyvinyl Chloride.
7.Paint:The white paint shall be painted uniformly on the steel wire braid.
8.Core identification:2 Core:Black,White
| Conductor | S(D,T) | Tinned annealed stranded copper, class 2 according to IEC 60228 |
| Conductor screen | Semi-conducting compound | |
| Insulation | P | 85°C EPR as per IEC 60092-351 |
| Cabling | Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used | |
| Overall shield | S | Tinned copper wire braid |
| Bedding | Y | PVC as per JIS C 3401 |
| Armor | C (CB) | Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE) |
| Sheath | Y | PVC as per JIS C 3401 |
| Core identification | 1C Black 2C Black, White 3C Black, White, Red | |
| Outer sheath color | Black |
Design:JIS C 3410:2010 IEC 60092-350
Flame retardant:IEC 60332-1 & IEC 60332-3 Category A(FA-Type)
