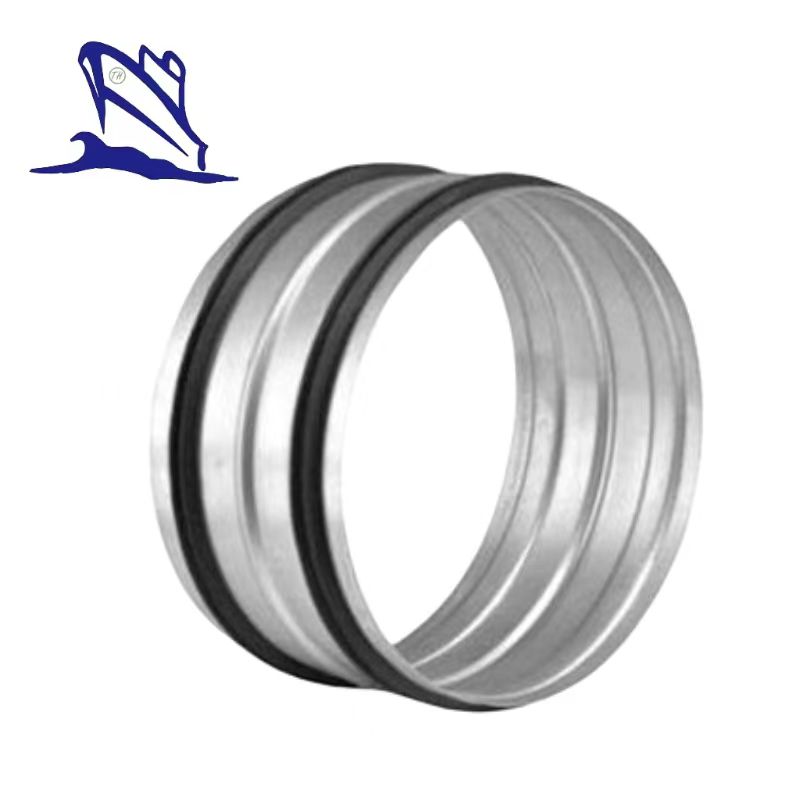

Insertion Joint
Main Specification
Specification | Ext.dia.D | L | Length L1 | Wgt.≈kg |
N80 | 78 | 90 | 40 | 0.14 |
N100 | 98 | 90 | 40 | 0.18 |
N125 | 123 | 90 | 40 | 0.22 |
N150 | 148 | 90 | 40 | 0.26 |
N160 | 158 | 90 | 40 | 0.28 |
N175 | 173 | 90 | 40 | 0.31 |
N200 | 198 | 90 | 40 | 0.35 |
N250 | 248 | 90 | 40 | 0.44 |
N300 | 298 | 90 | 40 | 0.77 |
Note: For insertion joints with DN≥400. seals are not applied. Two side surfaces of the joints are inward
flanged, intermediate raised ribs on midddle of joints. Length of the joint, L is equal to 50.
