SPIRAL DUCT AND DUCT FITTING

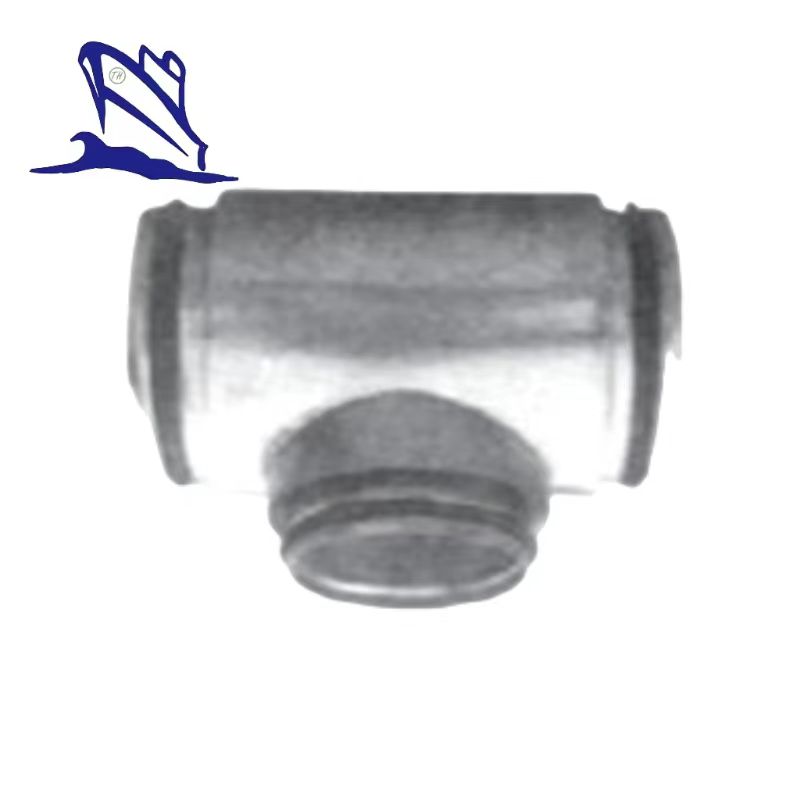

Pre-heat Insulation Tee

Main Specification

Specification	A	D1	D2	B	Wgt.≈kg/piece
PT80/80	150	80	80	70	1.26
PT100/80	150	100	80	80	1.32
PT100/100	165	100	100	80	1.44
PT125/80	150	125	80	90	1.48
PT125/100	165	125	100	90	1.60
PT125/125	200	125	125	90	1.84
PT150/80	150	150	80	105	1.80
PT150/100	165	150	100	105	1.86
PT150/125	200	150	125	105	1.98
PT150/150	220	150	150	105	2.05
PT160/80	150	160	80	109	1.83
PT160/100	165	160	100	109	1.84
PT160/125	200	160	125	109	1.98
PT160/160	250	160	160	109	2.20
PT175/80	150	175	80	115	1.98
PT175/100	165	175	100	115	2.04
PT175/125	200	175	125	115	2.35
PT175/150	250	175	150	115	2.54
PT175/175	250	175	175	115	2.60
PT200/80	150	200	80	140	2.04
PT200/100	165	200	100	140	2.6
PT200/125	200	200	125	140	2.48
PT200/150	250	200	150	140	2.68
PT200/160	250	200	160	140	3.03
PT200175	250	200	175	140	3.28
PT200/200	300	200	200	140	3.57
PT250/80	180	200	20	165	1.81
PT250/100	200	250	100	165	2.13
PT250/125	225	250	125	165	2.36
PT250/160	250	250	160	165	2.81
PT250/200	300	250	200	165	3.28
PT250/250	350	250	250	165	3.97
PT300/100	200	250	100	200	2.50
PT300/125	225	300	125	200	3.00
PT300/160	250	300	160	200	3.50
PT300/200	300	300	200	200	4.10
PT300/250	350	300	250	200	4.76
PT300/300	400	300	300	200	5.81
