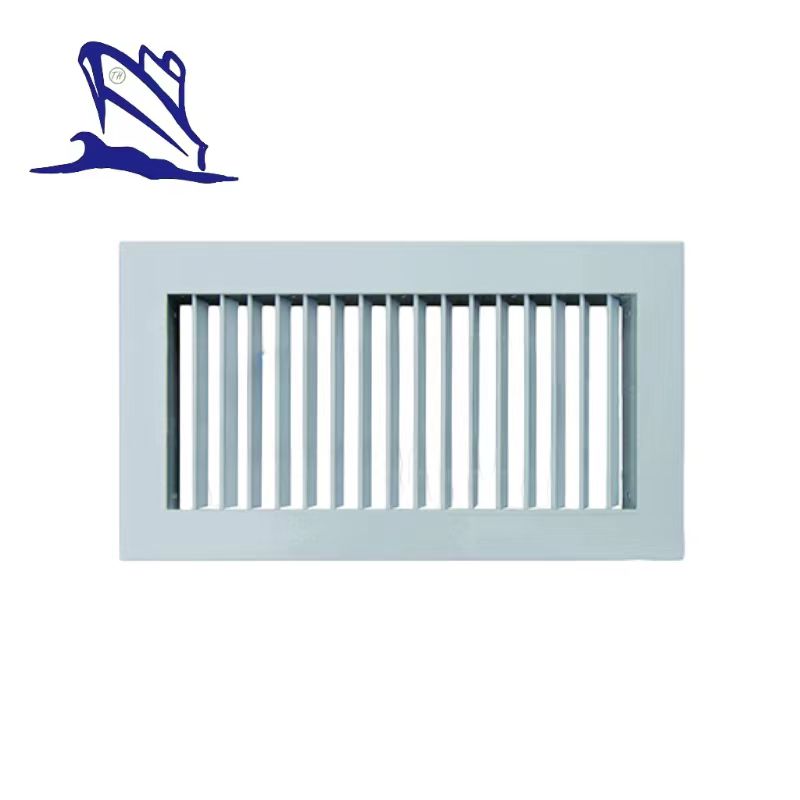

Single-layer grille air outlet
Description
The tuyere blades are arbitrarily adjusted in the range of 0 to 180 degrees, and the blades are adjusted to different angles to obtain different air supply distances and different diffusion angles. It can be used as a return air outlet.
Material:aluminum alloy profiles
Surface treatment:electrostatic spray, baking or anodizing
Can be added accessories:G1 air volume adjustment switch, G3 air deflector
According to your specification, please offer drawings.
Attention
The air blown out by the wall-type grid outlet iscaused by the differencebetween the airflow after the blow-out and the temperature of the air passing through the blow port and the temperature of the room, which causes the blown airflow to sink. Therefore, it must be listed as Factors to be considered, otherwise the opposite effect is often caused by poor air distribution points.

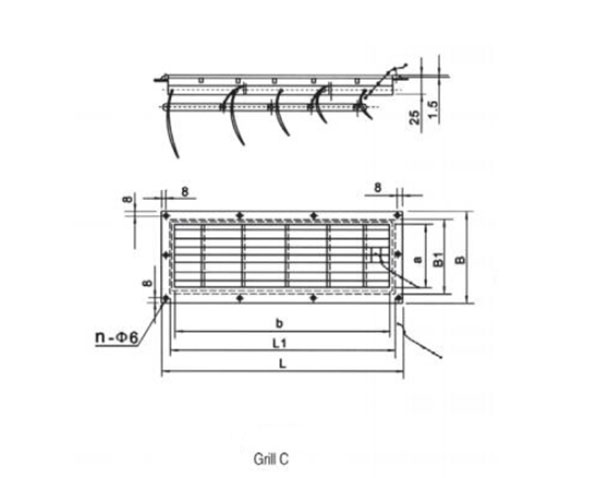

Specification
Specification A×B | ||||
150×150 | 300×150 | 350×300 | 400×400 | 500×300 |
200×150 | 300×200 | 350×350 | 450×250 | 500×350 |
200×200 | 300×250 | 400×200 | 450×300 | 500×400 |
250×150 | 300×300 | 400×250 | 450×350 | 500×450 |
250×200 | 350×200 | 400×300 | 450×400 | 500×500 |
250×250 | 350×250 | 400×350 | 400×450 | |
