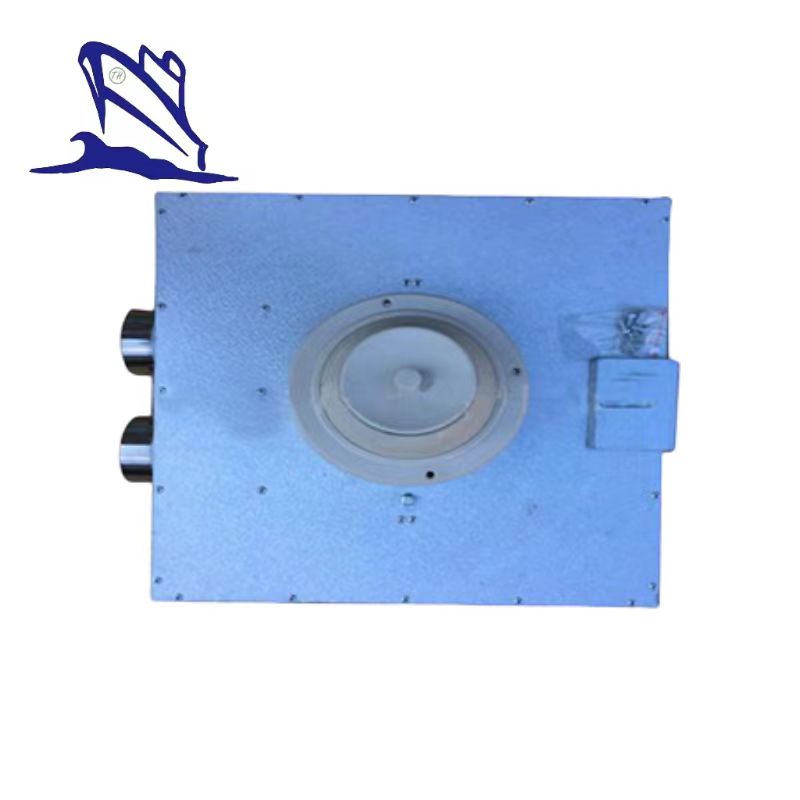

MARINE AIR DIFFIUSER AND TUYERE

Description

The products have achieved the perfect combination for Directional air and bulk flow wind.

In the winter , wind guide plate into the ceiling, the airflow under the vertical feed, the sphere can rotate to any angle, to adjust the air flow direction, design a more humane; In the summer ,wind guide plate into the ceiling, sending wind along the ceiling to form attached flow, the sphere can rotate to any angle, to adjust the air flow direction, to people feel cooler.

Main Specification

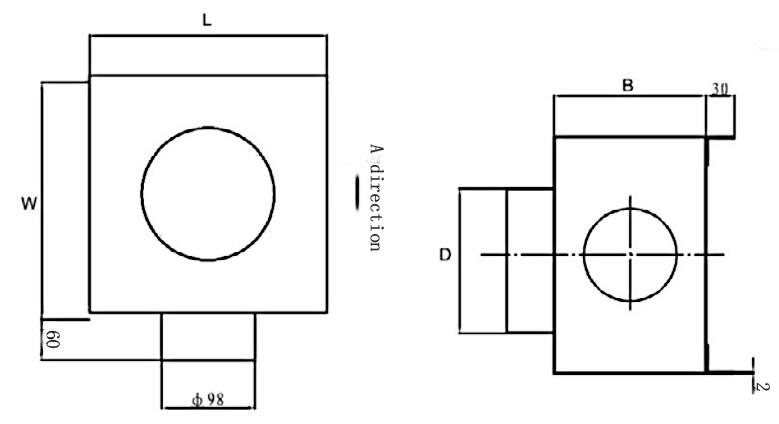

Specification	L	W	B	outlet D	Ceiling open hole	Flow-ratem3/h
CMS-C	250	250	160	125	129	0-60
CMS-D	250	250	160	145	145	0-90
CMS-E	250	250	160	155	158	0-220
CMS-F	350	350	160	230	235	0-350
