MARINE AIR DIFFIUSER AND TUYERE

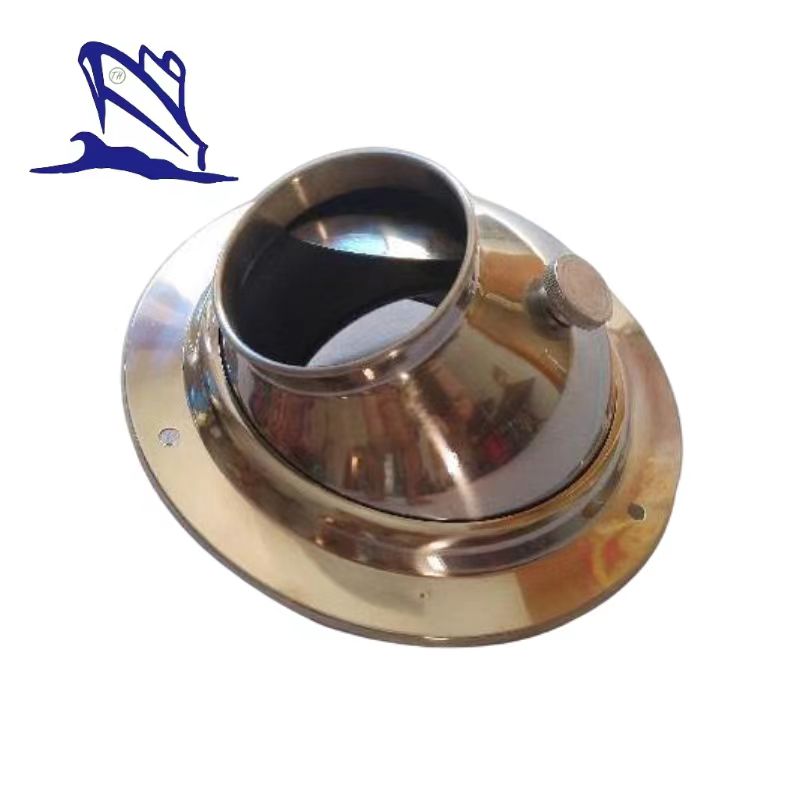

Ball air diffuser

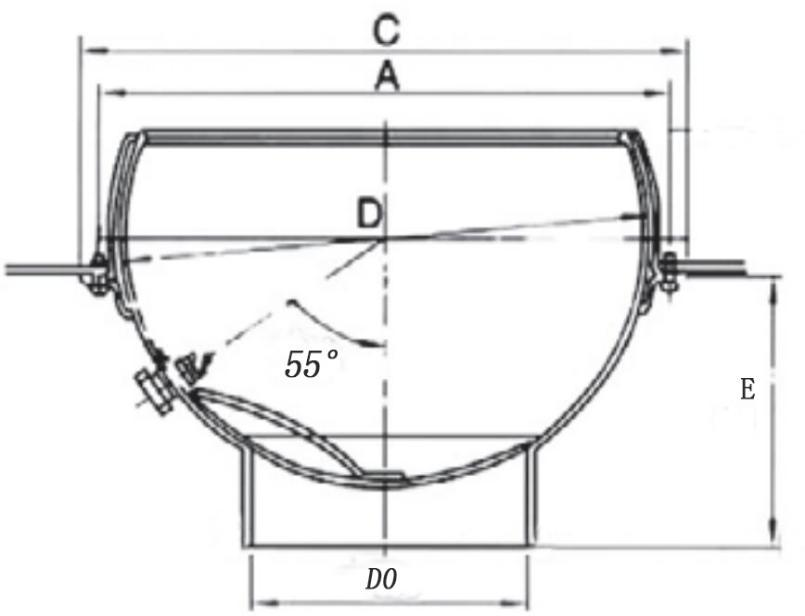

Main Specification

Nom.dia.DN	Ext.dia of ball D	Ext.dia of ball seat C	D0	Bolt hole center Circle dia.A	E	Flow-rate m3/h
80	80	92	40	107	57	0-85
100	100	107	50	122	62	0-100
150	150	157	75	172	90	0-150
175	175	182	87.5	197	115	0-175
200	200	207	100	222	120	0-200
250	250	258	125	278	135	0-250
300	300	310	150	325	148	0-300
