MARINE AIR DIFFIUSER AND TUYERE

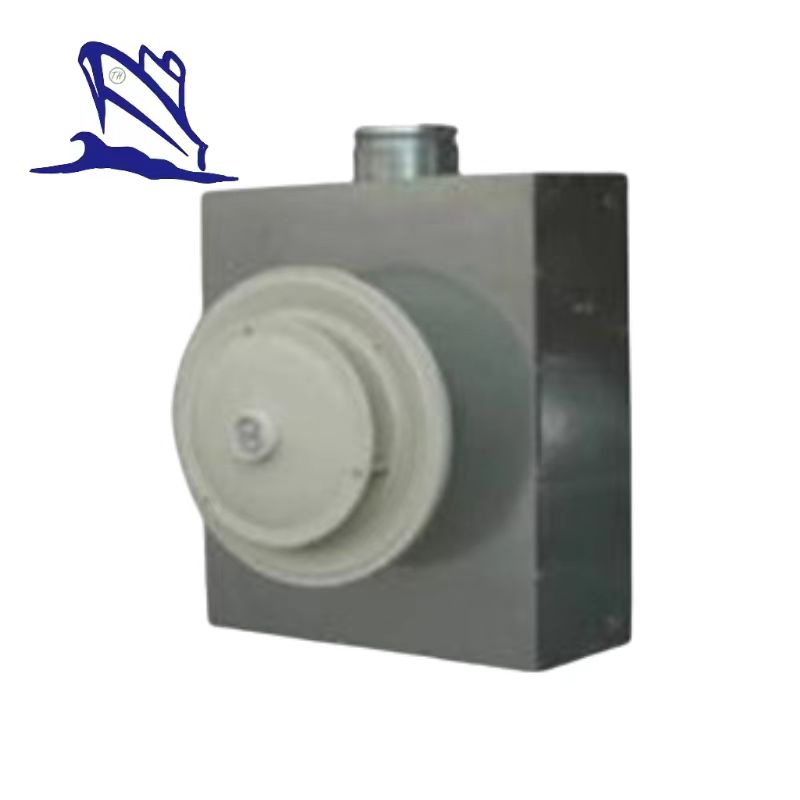

Ceiling air diffuser CMP

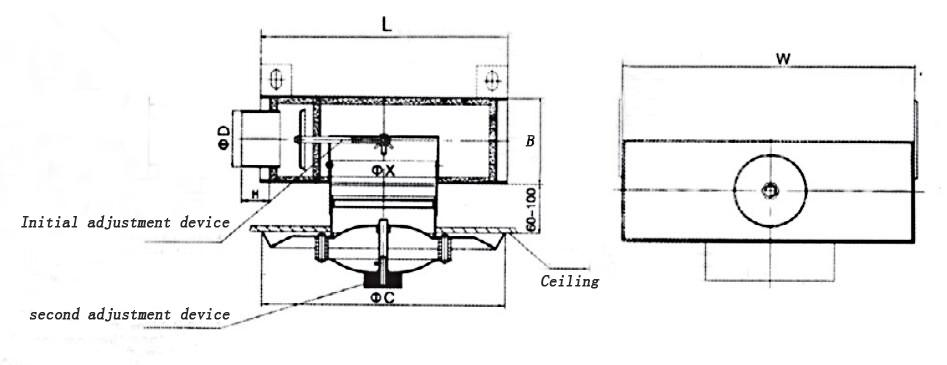

Main Specification

Specification	CMP-15	CMP-17	CMP-20	CMP-25
Inlet DN(D)	DN100	DN100	DN125	DN125
Outlet ΦX	Φ150	Φ170	Φ200	Φ250
L	550	550	550	600
W	450	450	450	500
B	160	160	180	200
Round diffuser ΦC	Φ395	Φ395	Φ395	Φ475
Flow-rate m3/h	0-250	0-300	0-380	0-500
Ceiling opening	Φ170	Φ190	Φ220	Φ270
