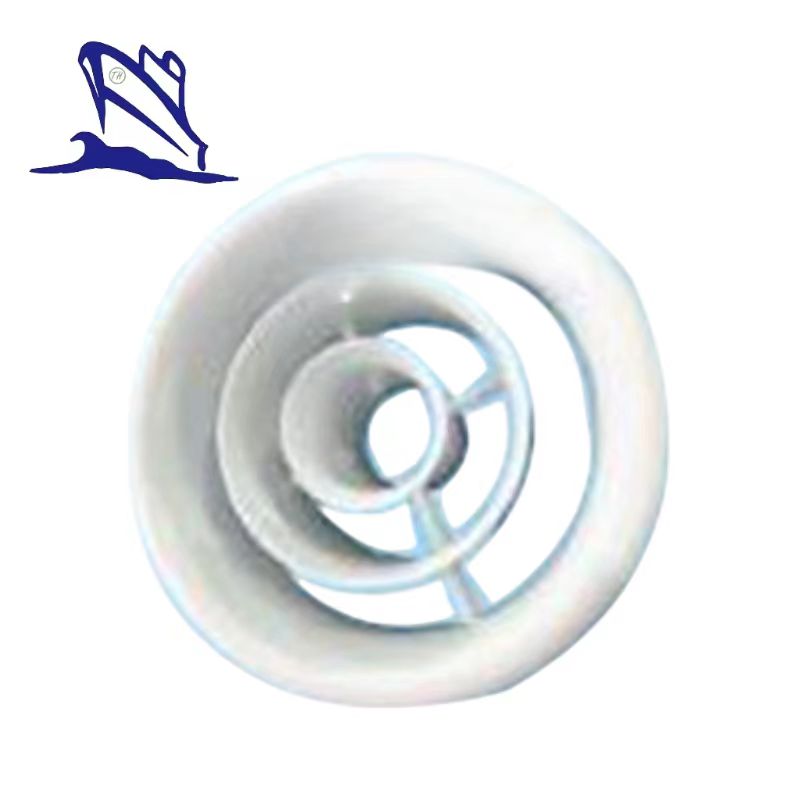

Ring type adjustable jet air outlet
Description

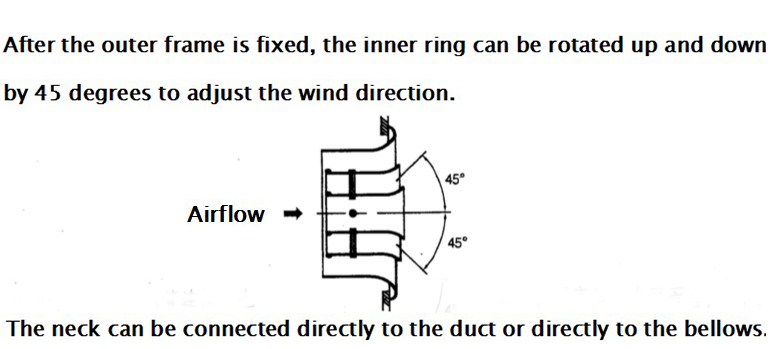

Suitable for occasions with far-reaching blows, the tuyere resistance is small, and the wind speed has a long range.The inner ring can be rotated up and down 45 degrees to adjust the wind direction.
Material:Aluminum plate
Surface treatment: electrostatic spray, baking finish or anodizing.
Neck size:ø150 ø200 ø250 ø300 ø350
If you need other specification, we can provide customized service for you
Specification
C | A | B | H |
ø150 | Ø193 | ø165 | 60 |
ø200 | Ø243 | Ø215 | 70 |
ø250 | Ø293 | Ø265 | 80 |
ø300 | Ø343 | Ø315 | 90 |
ø350 | Ø393 | Ø365 | 100 |
Technical parameters
Neck Size | Wind speed(M/S) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
Total pressure loss | 0.7 | 1.5 | 1.7 | 2.5 | 3.2 | 4.8 | 6.6 | 8.6 | |
ø150 | Air volume | 130 | 196 | 262 | 328 | 393 | 460 | 525 | 655 |
Arrival distance | 2.6 | 4.0 | 5.5 | 6.8 | 8.2 | 9.6 | 11.0 | 15.2 | |
NC | - | 26 | 30 | 36 | 43 | 49 | 53 | 56 | |
Ø200 | Air volume | 233 | 350 | 467 | 583 | 700 | 816 | 933 | 1166 |
Arrival distance | 3.8 | 5.6 | 7.4 | 9.2 | 11.0 | 13.0 | 14.7 | 20.5 | |
NC | - | 26 | 30 | 36 | 43 | 49 | 53 | 56 | |
Ø250 | Air volume | 365 | 548 | 730 | 916 | 1095 | 1280 | 1460 | 1825 |
Arrival distance | 4.6 | 7.0 | 9.5 | 11.6 | 13.8 | 16.2 | 18.5 | 25.4 | |
NC | - | 24 | 28 | 33 | 38 | 42 | 46 | 50 | |
Ø300 | Air volume | 526 | 790 | 1052 | 1315 | 1580 | 1842 | 2105 | 2632 |
Arrival distance | 5.6 | 8.4 | 11.2 | 14.0 | 16.8 | 19.5 | 22.2 | 32.0 | |
NC | - | 24 | 29 | 33 | 38 | 42 | 46 | 50 | |
Ø350 | Air volume | 705 | 1057 | 1410 | 1762 | 2115 | 2467 | 2820 | 3525 |
Arrival distance | 6.5 | 9.6 | 13.0 | 16.3 | 19.5 | 22.6 | 25.6 | 32.5 | |
NC | - | 25 | 30 | 34 | 40 | 43 | 47 | 51 |
