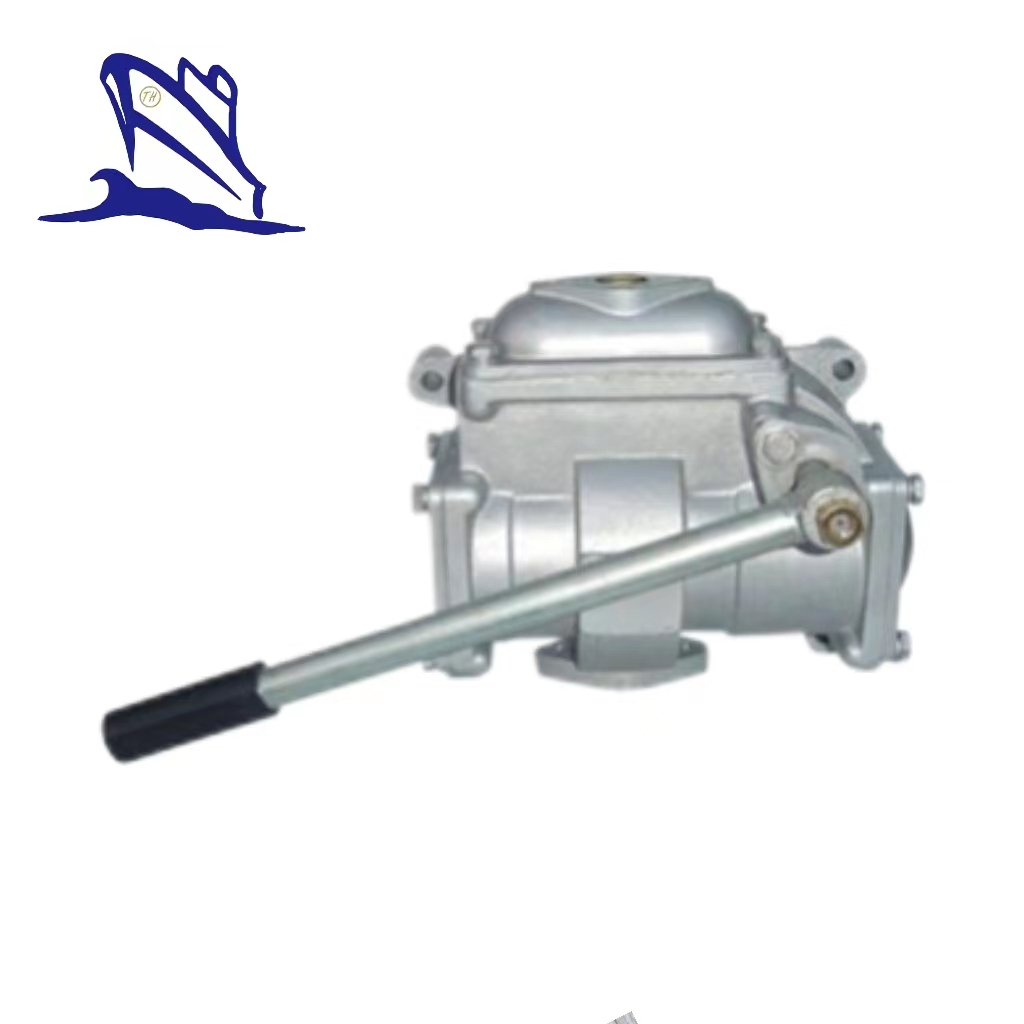

CS Marine Hand Pump
Applications:
CS Series hand piston pump is suitable for various ships pumping not containing hard particles or fibers of the lubricating oil, fuel oil, lubricating oil, other freshwater and seawater, and can be used in civil engineering, fire, water, drainage, oil and water wells kitchen vehicle transport sector and other different places. Transmission medium temperature not exceeding 60℃.
Model Explanation
for example CS-20Y/H
C — Marine
S — Hand pump
20 — Inlet and outlet diameter 20mm
Y/H Iron cylinder or copper alloyCS-20Y(S-20) — Applicable to pumping oil or water
CS-20H(SH-20)—Applicable to fresh water and sea water
Main Technical Parameter
| Series Name | CS | |||||
| Product Name | Marine Handing Pump | |||||
| Model | Capacity | Pressure head (m) | Time (onece/min) | Suction head (m) | Piston stroke (kw) | Weight (kg) |
| CS-20 | 20 | 20-25 | 50 | 5 | 68 | 1.45 |
| CS-20Y/H | 20 | 25 | 50 | 6 | 68 | 0.33 |
| CS-25Y/H | 32 | 25 | 50 | 6 | 80 | 0.33 |
| CS-32 | 40 | 20-25 | 50 | 5 | 90 | 0.33 |
| CS-32Y/H | 48 | 25 | 50 | 6 | 90 | 0.33 |
| CS-40Y/H | 65 | 25 | 50 | 6 | 90 | 0.36 |
| Application | applicable for marine to transport freshwater, fuel sewage and water of no corrosivity, not suitable for transport liquid that contain any fiber and solid granules | |||||
| Medium tempreture | Max.60℃ | |||||

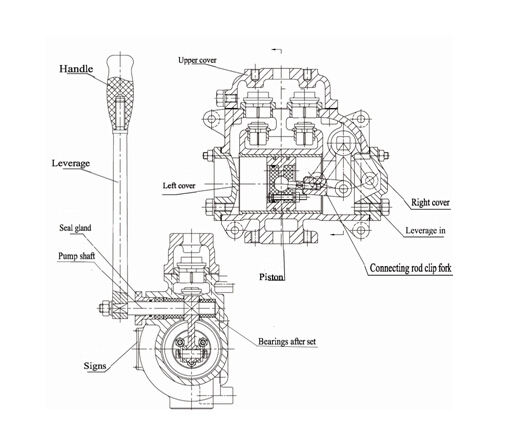

Structure
