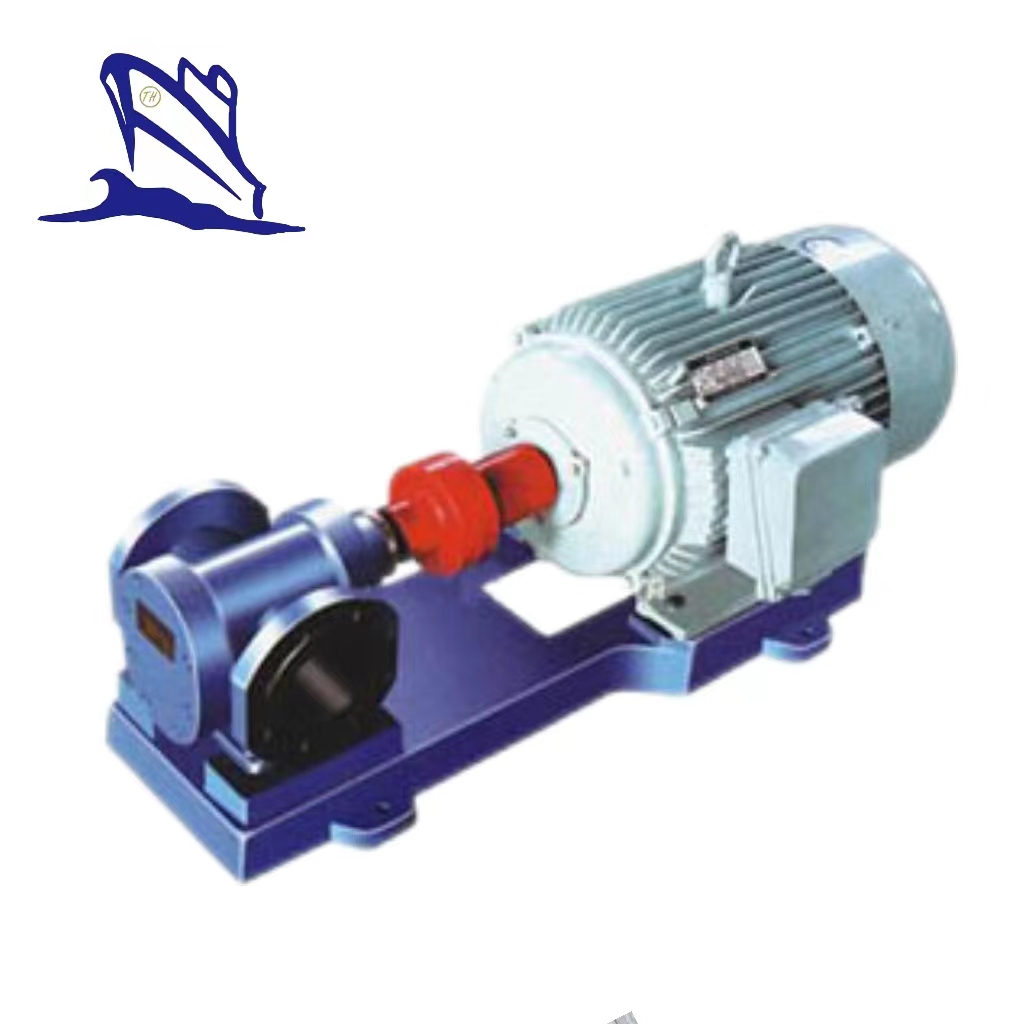

LB Marine Gear Pump for Refrigerator
Applications:
LB-Type Gear Pump for Refrigerator is used in transferring N32 or N46 refrigerated lubricating and other lubricant oil of ammonia machine or freon machine.The suited temperature of the refrigerator gear pump is 10°c~80°C.
Model Explanation
for example LB 20/0.6
LB: Special use for refrigerator/Gear pump
20: Capacity 20m3/h
0.6: Differential pressure 0.5MPa
Performance Parameter
Model | Inlet/outlet diameter (mm) | Special capacity | Differential pressure (MPa) | Max. differential pressure (Mpa) | Electric motor | |||
(m3/h) | (L/min) | Power (kw) | Speed (r/min) | Model | ||||
LB1.8 | 20 | 1.8 | 30 | 0.5 | 2.5 | 0.55 | 1390 | Y801-4 |
LB3.6 | 25 | 3.6 | 60 | 0.5 | 2.5 | 1.1 | 910 | Y90L-6 |
LB10 | 40 | 10 | 166.7 | 0.5 | 2.5 | 3 | 1420 | Y100L2-4 |
LB12 | 40 | 12 | 200 | 0.5 | 2.5 | 3 | 1420 | Y100L2-4 |
LB20 | 80 | 20 | 333.3 | 0.5 | 2.5 | 5.5 | 960 | Y132M2-6 |
LB25 | 80 | 25 | 416.7 | 0.5 | 2.5 | 7.5 | 970 | Y160M-6 |
LB40 | 100 | 40 | 666.7 | 0.5 | 2.5 | 11 | 970 | Y160L-6 |

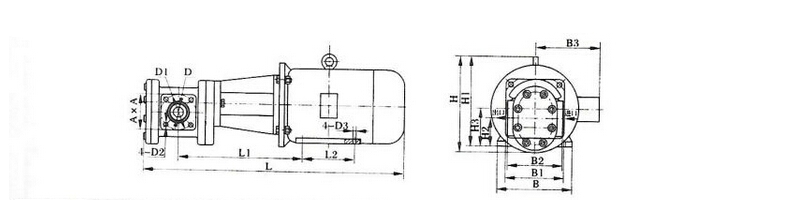

Structure
